| Basic Information |
| Supported CPU |
Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
* For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
L3 cache varies with CPU |
| Chipset |
Intel® H110 Express Chipset |
| BIOS |
1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor |
Micro ATX Form Factor; 22.6cm x 17.4cm |
| Expansion Slots |
| PCI |
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conform to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Memory |
| Type |
Dual channel DDR4 memory architecture |
| Slots |
2 x DIMM |
| Supported Memory |
Support for DDR4 2400/2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Maximum Memory |
32 GB |
| Graphics |
| Graphics |
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version. |
| Max Shared Memory |
1024 MB |
| Connector & Ports |
| HDMI |
1 x HDMI |
| D-Sub (s) |
1 x D-Sub |
| USB (s) |
Chipset:
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) |
Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage |
Chipset:
4 x SATA 6Gb/s connectors |
| Audio |
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out |
| Internal I/O Ports |
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) |
1 x Trusted Platform Module (TPM) header |
| Warranty Information |
| Manufacturing Warranty |
03 Years |

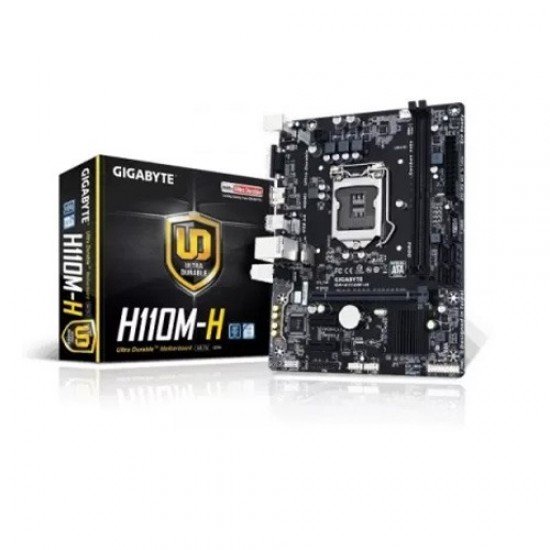

Gigabyte GA-H110M-H Micro ATX Motherboard – Reliable Performance for Everyday Computing
Are you building a budget-friendly PC but still want stable performance, future-ready connectivity, and trusted durability? The Gigabyte GA-H110M-H Micro ATX Motherboard is designed to solve exactly that problem. Whether you're upgrading an old system or building a new desktop for office work, study, or light gaming, this motherboard delivers dependable performance without breaking your budget.
Powered by the Intel® H110 Express Chipset, it supports both 6th and 7th Generation Intel® processors, giving you flexibility when choosing your CPU. With dual-channel DDR4 memory support up to 32GB, you can enjoy faster multitasking, smoother application performance, and better overall system responsiveness. The inclusion of HDMI and D-Sub ports ensures compatibility with modern and legacy displays, while PCIe slots allow easy expansion for graphics cards or additional components.
Storage and connectivity are also well-covered with multiple SATA 6Gb/s connectors and USB ports, making data transfer quick and efficient. Add to that Gigabyte’s trusted build quality and a 3-year warranty, and you get a motherboard that balances performance, durability, and value. If you're looking for a reliable foundation for your PC build in Bangladesh, this model is a smart and practical choice.
Key Benefits That Make Your PC Experience Better
- Smooth Multitasking with DDR4 Memory: With support for up to 32GB DDR4 RAM, this motherboard ensures faster data processing and improved system speed. Whether you're browsing, working, or running multiple applications, everything feels smoother and more responsive.
- Flexible CPU Compatibility: Supporting both 6th and 7th Gen Intel® Core™, Pentium®, and Celeron® processors, this motherboard gives you the flexibility to choose a CPU that fits your budget and performance needs. You can even upgrade later without replacing the board.
- Enhanced Display Options: Equipped with HDMI and D-Sub ports, it supports high-resolution output up to 4K. This means clearer visuals for work, entertainment, and light content creation, making your overall viewing experience much better.
- Reliable Storage & Fast Data Transfer: With 4 x SATA 6Gb/s connectors and multiple USB ports, you get faster file transfers and enough storage options for your daily needs. This is perfect for users who handle large files or need efficient data access.
- Stable Network & Audio Performance: The Realtek® GbE LAN ensures stable internet connectivity for browsing, streaming, and online work. Meanwhile, the high-definition audio system delivers immersive sound, improving your entertainment and communication experience.
Why Choose This Motherboard?
- Proven Reliability from Gigabyte: Gigabyte is known for durable and long-lasting components, ensuring your system stays stable over time.
- Perfect for Budget Builds: It offers essential features without unnecessary extras, making it ideal for cost-effective PC setups.
- Future Upgrade Support: With PCIe slots, DDR4 memory, and multiple ports, you can easily upgrade your system as your needs grow.
Upgrade your PC with confidence today! Get the Gigabyte GA-H110M-H Motherboard at the best price in Bangladesh from IndexIT. Order now and build a reliable, high-performance system without overspending.
