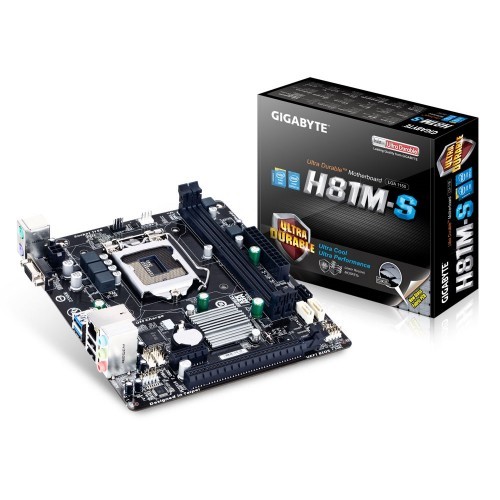

Gigabyte GA H81M-S 4th Gen Intel Motherboard

Gigabyte GA-H81M-S 4th Gen Intel Motherboard

The Gigabyte GA-H81M-S is a robust and efficient Micro ATX motherboard designed to support 4th Generation Intel Core processors (i7, i5, i3, Pentium, and Celeron) utilizing the LGA1150 socket. Built on the Intel H81 Express Chipset, this board is an ideal choice for users looking to build a reliable budget workstation or a home entertainment PC. Despite its compact 19.0cm x 17.0cm form factor, it offers a high degree of durability and performance through Gigabyte’s signature engineering, ensuring long-term stability for everyday computing tasks. In terms of memory and expansion, the GA-H81M-S features a Dual Channel Architecture with two DDR3 DIMM slots, supporting up to 16 GB of memory at speeds of 1600/1333 MHz. It also includes support for Extreme Memory Profile (XMP) modules, allowing users to optimize their RAM performance easily. For graphics and connectivity, the board provides a PCI Express x16 slot for dedicated GPUs, alongside a D-Sub port for integrated graphics with a maximum resolution of 1920x1200. Storage and peripheral connectivity are well-handled with two SATA 6Gb/s ports for high-speed SSDs and two SATA 3Gb/s ports for traditional hard drives. The I/O panel includes USB 3.0 ports for fast data transfer and a Realtek Gigabit LAN chip for stable, high-speed networking. Audio enthusiasts will appreciate the 7.1-channel High Definition Audio powered by the Realtek ALC887 codec. Additionally, the motherboard is packed with Gigabyte’s unique software suite, including the APP Center, EasyTune, and ON/OFF Charge technology, all backed by a 3-year manufacturing warranty, making it a secure investment for legacy-compatible builds.

Buying Guideline for Gigabyte GA-H81M-S 4th Gen Intel Motherboard

When selecting the Gigabyte GA-H81M-S, it is essential to consider its compatibility with legacy hardware and its intended use as a reliable, entry-level foundation. This guide outlines the key factors to verify before purchase to ensure a seamless building experience for your budget-friendly desktop.

1. Processor Compatibility: Ensure you have an Intel 4th Generation processor (Haswell), as this board specifically supports the LGA1150 socket. It is compatible with Core i7, i5, i3, Pentium, and Celeron chips from that era.

2. Memory Planning: The board features 2 x DDR3 DIMM slots supporting a maximum of 16 GB. Plan your build with a matched pair of 8GB modules for dual-channel performance, as there is no room for further expansion later.

3. Video Output Requirements: Take note that this specific model primarily offers a D-Sub (VGA) port. If you plan to use a modern digital monitor without a dedicated graphics card, you may need a VGA-to-HDMI adapter.

4. Storage Interface: The board provides two SATA 6Gb/s ports. To get the best performance in 2026, prioritize connecting your primary OS drive to these faster ports rather than the slower SATA 3Gb/s connectors.

5. Form Factor Check: With its Micro ATX design ($19.0\text{cm} \times 17.0\text{cm}$), ensure your casing supports this size. It is perfect for mini-tower or slim-office cases where space is at a premium.

6. Power Supply Needs: The board uses a standard 24-pin ATX and a 4-pin ATX 12V power connector. Verify that your PSU has these cables available, especially if you are repurposing an older unit.

Selecting the right components for your build ensures longevity and peak performance for your daily computing needs. Whether you are upgrading an office workstation or building a home PC, this Motherboard from the GIGABYTE (Intel) category offers the durability you expect. At Index IT, we are committed to providing you with authentic hardware and expert guidance for all your tech requirements.
