| Physical Specification | ||
| Type | Dual channel memory architecture | |
| Slots | 2 x DDR4 DIMM | |
| Supported Memory | Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules<br> * Actual support may vary by CPU.<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 32 GB | |
| Basic Information | ||
| Supported CPU | AMD Ryzen™ processor<br> AMD 7th Generation A-series/ Athlon™ processor | |
| Chipset | AMD A320 | |
| BIOS | 1 x 128 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 19.5cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)<br> * Actual support may vary by CPU.<br> (The PCIEX16 slot conforms to PCI Express 3.0 standard.)<br> 2 x PCI Express x1 slots<br> (The PCI Express x1 slots conform to PCI Express 2.0 standard.) | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)<br> * Actual support may vary by CPU.<br> * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation <br>A-series or Athlon™ APU. | |
| Graphics | ||
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz<br> 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz<br> * The DVI-D port does not support D-Sub connection by adapter.<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz<br> * Support for HDMI 1.4 version. | |
| Max Shared Memory | 2 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |

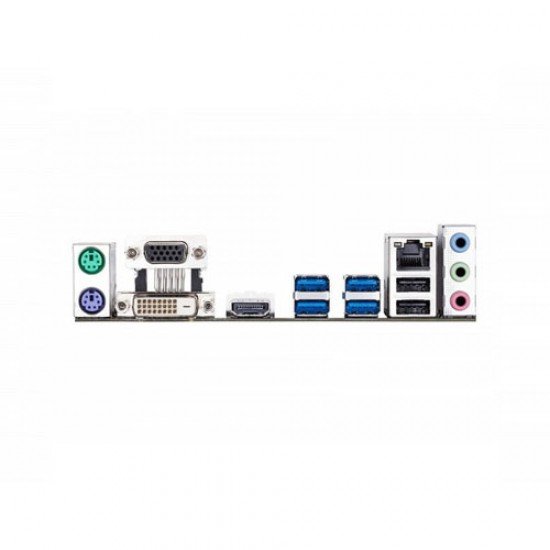

| USB (s) | Chipset:<br> 2 x USB 3.1 Gen 1 ports available through the internal USB header<br> 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)<br> CPU:<br> 4 x USB 3.1 Gen 1 ports on the back panel | |
| LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)<br> * Actual support may vary by CPU.<br> * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation <br>A-series or Athlon™ APU.<br> 4 x SATA 6Gb/s connectors<br> Support for RAID 0, RAID 1, and RAID 10<br> * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector. | |
| Audio | Realtek® ALC887 codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable <br>the multi-channel audio feature through the audio driver.<br> Support for S/PDIF Out | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x system fan header<br> 1 x M.2 Socket 3 connector<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x S/PDIF Out header<br> 1 x USB 3.1 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x speaker header<br> 1 x Clear CMOS jumper<br> 1 x chassis intrusion header | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |

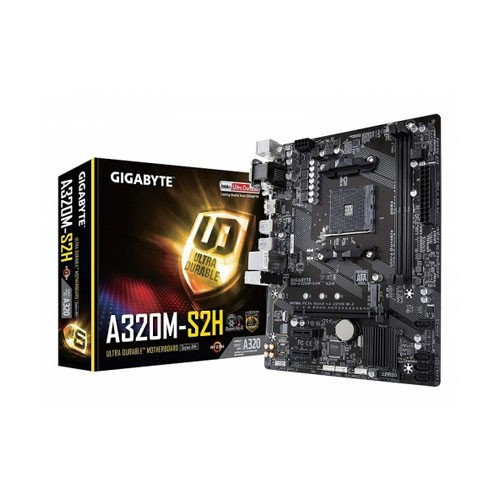

The Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard is a reliable and budget-friendly foundation for building a stable AMD-based PC system. Designed for everyday users, gamers, and professionals, it delivers a balanced combination of performance, durability, and essential features required for modern computing needs. With support for AMD Ryzen processors, it allows users to experience smooth multitasking, faster processing, and improved overall system responsiveness for work or entertainment. Whether you are building a home PC, office workstation, or entry-level gaming setup, this motherboard ensures consistent performance and long-term stability without unnecessary complexity. Its Micro ATX form factor makes it ideal for compact builds while still offering essential expansion options for storage, graphics, and connectivity upgrades. The motherboard is engineered with high-quality components to enhance durability and reduce system failures, making it a dependable choice for long-term use. It also provides user-friendly BIOS features, allowing easy system configuration, updates, and optimization even for beginners. Overall, this motherboard is an excellent value-for-money solution for anyone looking to build a cost-effective yet powerful AMD desktop system. With its efficient power delivery and compatibility with a wide range of components, it helps users build a future-ready PC that can handle daily workloads, light gaming, and multimedia tasks with ease and reliability.
Upgrade your PC build today with the Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard and experience stable performance, smooth multitasking, and reliable durability. Perfect for budget-friendly systems, it delivers everything you need for a powerful and efficient computing experience.
The latest price of Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard in Bangladesh is 5,700৳ You can buy the Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
