| Basic Information | |
| Supported CPU | Intel Core Ultra Processors L3 cache |
| Chipset | Intel B860 Express Chipset |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Type | DDR5 |
| Expansion Slots | |
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| M.2 Socket | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.) |
| Connector & Ports | |
| HDMI | 2 x HDMI |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Display Port (s) | 1 x DisplayPort |
| USB (s) | CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) - 4 x SATA 6Gb/s connectors |
| Audio | 1 x front panel audio header 2 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port* 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors: 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x DisplayPort* 1 x USB4® USB Type-C® port (DisplayPort*) 1 x HDMI port* 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Others Information | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Physical Specification | |
| Slots | 4 x DIMM |
| Supported Memory | Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules |
| Maximum Memory | Up to 256 GB (64 GB single DIMM capacity) |
| Warranty Information | |
| Warranty | 3 Year Warranty |

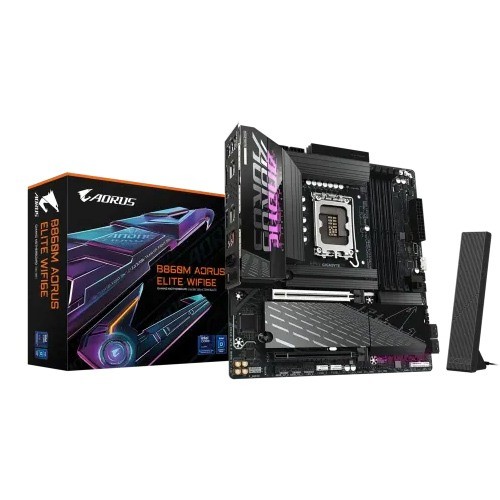

The GIGABYTE B860M AORUS ELITE WIFI6E LGA1851 Micro ATX Motherboard is a high-performance and feature-rich platform designed for modern Intel-based PCs. Powered by the Intel B860 Express chipset and supporting the latest Intel Core Ultra processors, this motherboard ensures powerful computing performance suitable for gaming, content creation, and productivity applications. Its LGA1851 socket offers wide CPU compatibility, making it future-ready for upcoming Intel CPUs while also supporting integrated graphics for versatile display options. Designed in a compact Micro ATX form factor (24.4cm x 24.4cm), the motherboard provides excellent expandability without occupying excessive space. It features four DDR5 DIMM slots, supporting memory speeds up to 9200 MHz (OC) and a maximum capacity of 256 GB, enabling ultra-fast multitasking and enhanced system responsiveness. Support for XMP profiles allows users to optimize memory performance effortlessly. For graphics, the motherboard offers a PCIe 5.0 x16 slot for next-gen graphics cards and multiple M.2 slots with PCIe 5.0 and PCIe 4.0 support, delivering lightning-fast storage and flexibility for NVMe SSDs. It also includes HDMI 2.1, DisplayPort 2.1, and USB4 Type-C outputs, supporting high-resolution displays up to 4K at 144Hz, perfect for gaming and professional content creation. Connectivity is enhanced with Intel Wi-Fi 6E AX211 and Realtek 2.5GbE LAN, providing stable, high-speed wired and wireless networking. Additional features include Realtek High Definition Audio, multiple USB 3.2 Gen 2/Gen 1 ports, RGB and addressable LED headers, TPM support, Q-Flash Plus, and the GIGABYTE Control Center for efficient system management. With support for RAID 0, 1, 5, and 10, extensive storage options, and a robust 3-year warranty, the GIGABYTE B860M AORUS ELITE WIFI6E Micro ATX Motherboard offers a perfect combination of performance, connectivity, and reliability for advanced Intel PC builds. This motherboard is ideal for gamers, creators, and professionals seeking a modern, high-speed, and feature-packed Intel platform solution.
The latest price of GIGABYTE B860M AORUS ELITE WIFI6E LGA1851 Micro ATX Motherboard in Bangladesh is 33,475৳ You can buy the GIGABYTE B860M AORUS ELITE WIFI6E LGA1851 Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
