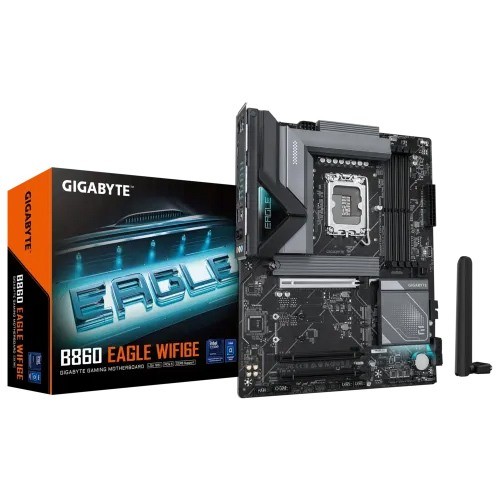

Name: GIGABYTE B860 EAGLE WIFI6E LGA1851 ATX Motherboard
Brand: GIGABYTE
Price: 33990.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

GIGABYTE B860 EAGLE WIFI6E LGA1851 ATX Motherboard

-1 % In Stock

GIGABYTE B860 EAGLE WIFI6E LGA1851 ATX Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: B860 EAGLE WIFI6E

Based on 1 reviews. - Write a review

33,990৳

34,500৳

Ex Tax: 33,990৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: Intel Core Ultra Processors (Series 2)
- Supported RAM: 4x DDR5
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 3x M.2, Intel Wi-Fi 6E, Bluetooth 5.3

View More Info

Specification

Physical Specification
Slots	4 x DIMM
Supported Memory	Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
Maximum Memory	Up to 256 GB (64 GB single DIMM capacity)
Basic Information
Supported CPU	Intel Core Ultra Processors L3 cache
Chipset	Intel B860 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Type	DDR5
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4)
M.2 Socket	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB)
Graphics
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version.
Connector & Ports
HDMI	1 x HDMI
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Display Port (s)	1 x DisplayPort
USB (s)	Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB headers - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
Audio	1 x front panel audio header 3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors: 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Warranty	3 Year Warranty

Description

GIGABYTE B860 EAGLE WIFI6E LGA1851 ATX Motherboard

The GIGABYTE B860 EAGLE WIFI6E LGA1851 ATX Motherboard is a powerful, stable, and future-ready solution designed for users who want dependable performance with modern features. Built on the Intel B860 Express Chipset, it fully supports Intel Core Ultra Processors (Series 2) using the LGA1851 socket, making it ideal for gaming, content creation, and productivity-focused PC builds. Designed in a full-size ATX form factor (30.5cm x 24.4cm), this motherboard offers excellent expandability and airflow for high-performance systems. It supports DDR5 memory with four DIMM slots, allowing up to 256GB RAM and overclocked speeds up to 9066MHz (O.C.), ensuring faster data transfer, smooth multitasking, and improved system responsiveness. For graphics and expansion, the board includes a PCIe 5.0 x16 slot, delivering maximum bandwidth for next-generation graphics cards or NVMe devices. Storage performance is equally impressive with three M.2 slots, including one PCIe 5.0 x4 and two PCIe 4.0 x4 connectors, alongside four SATA 6Gb/s ports with RAID support for flexible and secure storage configurations. Connectivity is a major highlight of the B860 EAGLE WIFI6E. It features Intel Wi-Fi 6E and Bluetooth 5.3, offering faster wireless speeds, reduced latency, and improved reliability. A Realtek 2.5GbE LAN ensures stable, high-speed wired networking for online gaming and streaming. Display output options include HDMI 2.1 and DisplayPort 2.1, supporting high-resolution and high-refresh-rate displays. Additional features such as Realtek High Definition Audio, multiple RGB and ARGB headers, Q-Flash Plus, Smart Backup, and GIGABYTE Control Center make system setup and customization easy. Backed by a 3-year manufacturing warranty, this motherboard delivers long-term reliability and value.

Features Of GIGABYTE B860 EAGLE WIFI6E LGA1851 ATX Motherboard

Latest Intel CPU Support: Compatible with Intel Core Ultra Processors (Series 2) using the advanced LGA1851 socket, ensuring strong performance, efficiency, and future upgrade support.
High-Speed DDR5 Memory: Supports 4× DDR5 RAM slots with a maximum capacity of 256GB, delivering blazing-fast speeds up to 9066MHz (O.C.) for smooth multitasking and gaming.
Next-Gen Graphics & Expansion: Equipped with a PCIe 5.0 x16 slot, providing maximum bandwidth for modern GPUs and high-performance computing tasks.
Advanced Storage Options: Features three M.2 slots, including one PCIe 5.0 x4 and two PCIe 4.0 x4, plus four SATA 6Gb/s ports with RAID support for flexible storage setups.
Powerful Wireless Connectivity: Integrated Intel Wi-Fi 6E and Bluetooth 5.3 deliver faster wireless speeds, lower latency, and improved stability across 2.4GHz, 5GHz, and 6GHz bands.
High-Speed Networking & Display: Comes with Realtek 2.5GbE LAN, HDMI, and DisplayPort, supporting high-resolution visuals and reliable internet performance.
User-Friendly GIGABYTE Features: Includes Q-Flash Plus, GIGABYTE Control Center, RGB/ARGB headers, and premium audio support for easy setup, customization, and long-term usability.
