| Basic Information | |
| Supported CPU | Intel Core Ultra Processors L3 cache |
| Chipset | Intel B860 Express Chipset |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Type | DDR5 |
| Expansion Slots | |
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_1, PCIEX1_2) |
| M.2 Socket | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version(Graphics specifications may vary depending on CPU support) Support for up to quad-display at the same time |
| Connector & Ports | |
| HDMI | 2 x HDMI |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Display Port (s) | 1 x DisplayPort |
| USB (s) | CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB) - 4 x SATA 6Gb/s connectors |
| Audio | 1 x front panel audio header 2 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors: 1 x USB4® USB Type-C® port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 1 x HDMI port (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Others Information | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Physical Specification | |
| Slots | 4 x DIMM |
| Supported Memory | Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules |
| Maximum Memory | Up to 256 GB (64 GB single DIMM capacity) |
| Warranty Information | |
| Warranty | 3 Year Warranty |

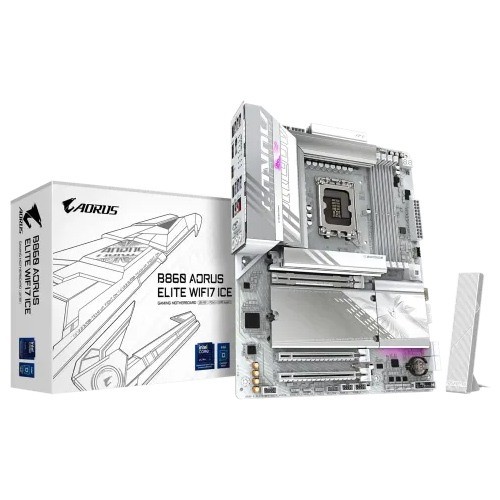

The Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard is designed for users who demand cutting-edge performance, stability, and future-ready connectivity in their PC build. Whether you are a gamer, content creator, or professional user, this motherboard ensures smooth multitasking, faster data transfer, and highly responsive system performance. With the latest LGA1851 socket support, it is built to handle next-generation processors efficiently, giving you a powerful foundation for high-end computing tasks. The integration of WiFi 7 technology ensures ultra-fast wireless connectivity, reducing latency and improving online gaming and streaming experiences. This motherboard is engineered to solve common performance bottlenecks, providing a stable and optimized computing environment for heavy workloads, gaming sessions, and creative applications. If you are planning to build a high-performance PC, this motherboard delivers the reliability and speed you need while keeping your system future-proof for upcoming technologies.
Each of these features is designed to improve your daily computing experience by increasing speed, efficiency, and system stability. Whether you are upgrading an old system or building a new powerhouse, this motherboard ensures long-term value and performance.
Users who have chosen the Gigabyte B860 AORUS ELITE WIFI7 ICE motherboard report highly positive experiences, especially regarding its stability and next-generation connectivity features. Many buyers appreciate the WiFi 7 performance, noting significantly reduced lag during online gaming and smoother streaming quality. Content creators highlight its strong multitasking capability, allowing them to run demanding software without system slowdowns. The motherboard’s build quality and thermal efficiency are also frequently praised, as it maintains stable temperatures even under heavy workloads. Overall, customers rate it as a reliable and future-proof investment for high-performance PC builds.
If you are planning to build or upgrade a high-performance system, the Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard is an excellent choice for the Motherboard category. At Index IT, you can explore the latest tech components designed to deliver maximum performance and reliability. Don’t settle for outdated hardware when you can experience next-generation speed, stability, and connectivity. Order now and take your PC performance to the next level with confidence.
The latest price of Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard in Bangladesh is 36,050৳ You can buy the Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard at best price from our Website or visit any of our showrooms.
