Name: GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
Brand: GIGABYTE
Price: 26800.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard

-3 % In Stock

GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: B850M EAGLE WIFI6E

Based on 1 reviews. - Write a review

26,800৳

27,500৳

Ex Tax: 26,800৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 256GB, 8200(OC)
- Graphics Output: 2x Display Port, 1 x HDMI
- Features: 2x M.2 Slot, Realtek 2.5GbE LAN, Intel Wi-Fi 6E RTL8852CE

View More Info

Specification

Physical Specification
Slots	4 DIMMs
Supported Memory	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory	Up to 256 GB (64 GB single DIMM capacity) of system memory
Basic Information
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors AMD Ryzen 8000 Series Processors AMD Ryzen 7000 Series Processors
Chipset	AMD B650
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Type	DDR5
Expansion Slots
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
Graphics
Graphics	Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Connector & Ports
HDMI	1x HDMI
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Display Port (s)	2x DisplayPorts
USB (s)	CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors
Audio	3 x Audio jacks

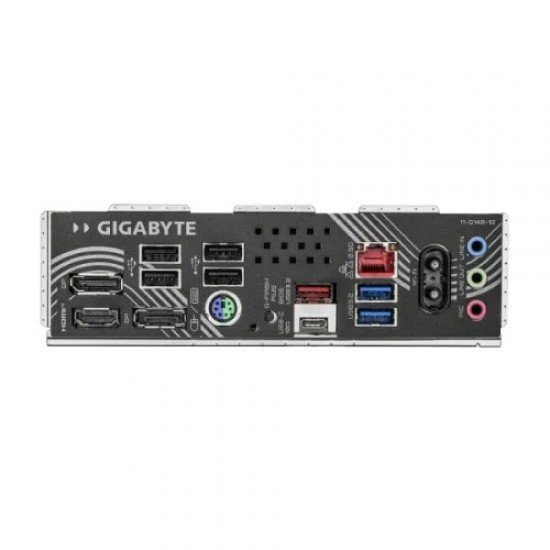

Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Warranty	3 Years

Description

GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard

The GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard is a powerful and future-ready solution designed for modern AMD PC builds. Built on the reliable AMD B650 chipset and featuring the AM5 socket, it offers full compatibility with AMD Ryzen 7000, 8000, and 9000 Series processors, making it an excellent choice for gamers, professionals, and everyday users looking for long-term upgrade support. Designed in a compact Micro ATX form factor (24.4cm x 24.4cm), this motherboard fits easily into smaller cases while still delivering impressive expansion capabilities. It includes a primary PCIe x16 slot that supports PCIe 5.0 when paired with Ryzen 9000 and 7000 series CPUs, ensuring compatibility with next-generation graphics cards and ultra-fast NVMe SSDs. An additional chipset-driven PCIe slot provides flexibility for expansion cards. Memory performance is a standout feature, with four DDR5 DIMM slots supporting up to 256GB of RAM and overclocked speeds reaching 8200MT/s (OC). Support for AMD EXPO™ and XMP profiles allows easy memory optimization for maximum stability and performance. For storage, the motherboard offers two M.2 slots with PCIe 5.0 and PCIe 4.0 support (CPU dependent), along with four SATA 6Gb/s ports, enabling versatile and high-speed storage configurations with RAID support. Connectivity is modern and reliable, featuring Wi-Fi 6E, Bluetooth 5.3, and a Realtek 2.5GbE LAN for fast networking. Display options include HDMI 2.1 and dual DisplayPort 1.4, supporting triple-display setups with high resolutions. Enhanced audio, RGB headers, Q-Flash Plus, and GIGABYTE Control Center further add convenience and customization. Backed by a 3-year warranty, this motherboard delivers excellent performance, connectivity, and value.

Features Of GIGABYTE B850M EAGLE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard

Wide CPU Compatibility: Supports AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket, ensuring future-proof performance and upgrade flexibility.
High-Speed DDR5 Memory Support: Equipped with 4× DDR5 DIMM slots, supporting up to 256GB RAM and ultra-fast speeds up to 8200MHz (OC) with AMD EXPO™ and XMP profiles.
Next-Gen PCIe Performance: Primary PCIe 5.0 x16 slot (CPU dependent) delivers exceptional bandwidth for modern graphics cards and high-performance NVMe SSDs.
Advanced Storage Options: Features 2× M.2 slots (PCIe 5.0 & 4.0) and 4× SATA 6Gb/s ports, with RAID 0/1/5/10 support for faster and more secure data storage.
Modern Graphics Output: Includes 2× DisplayPort 1.4 and 1× HDMI 2.1, supporting up to triple-display output with high resolutions and refresh rates.
Fast & Stable Connectivity: Integrated Wi-Fi 6E (RTL8852CE), Bluetooth 5.3, and Realtek 2.5GbE LAN ensure smooth online gaming, streaming, and productivity.
User-Friendly GIGABYTE Features: Comes with Q-Flash Plus, RGB headers, multiple USB 3.2 ports including USB Type-C, and GIGABYTE Control Center for easy system management.
