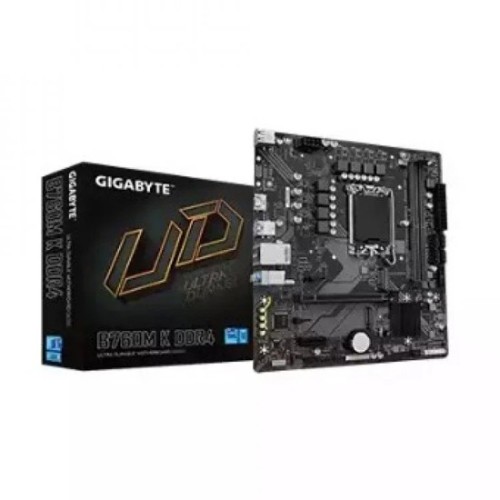

Name: Gigabyte B760M K DDR4 14th/ 13th /12th Gen LGA1700 Intel Motherboard
Brand: Gigabyte
Price: 13600.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

Gigabyte B760M K DDR4 14th/ 13th /12th Gen LGA1700 Intel Motherboard

-2 % In Stock

Gigabyte B760M K DDR4 14th/ 13th /12th Gen LGA1700 Intel Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B760M K DDR4

Based on 1 reviews. - Write a review

13,600৳

13,900৳

Ex Tax: 13,600৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- LGA1700 socket
- Intel B760 Express Chipset
- Support for DDR4
- 1 x 128 Mbit flash

View More Info

Specification

Physical Specification
Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Basic Information
Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Supported CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Memory	Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Graphics
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports
Input Devices
External I/O Ports	2 x USB 2.0/1.1 ports 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
External Features
Expansion Slots	- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Connector & Ports
USB (s)	Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC- TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper
Network & Connectivity
LAN	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Physical Specification
Form Factor	Micro ATX Form Factor
Warranty Information
Warranty	03 years

Description

Gigabyte B760M K DDR4 14th/ 13th /12th Gen LGA1700 Intel Motherboard

The Gigabyte B760M K DDR4 Intel Motherboard is a reliable and budget-friendly solution designed for users who want stable performance with modern Intel processors. Built on the Intel B760 Express chipset and featuring the LGA1700 socket, this motherboard supports 12th, 13th, and 14th Generation Intel Core, along with Pentium Gold and Celeron processors, making it an excellent choice for home, office, and entry-level gaming PCs. With its Micro ATX form factor (23.0cm x 21.5cm), the B760M K DDR4 fits easily into compact PC cases while still offering essential expansion options. It supports DDR4 memory up to 5333MHz (OC) through two DIMM slots, allowing a maximum capacity of 64GB in dual-channel architecture. Support for XMP memory profiles ensures users can achieve better memory performance with ease. For graphics and expansion, the motherboard includes a PCIe 4.0 x16 slot, providing sufficient bandwidth for modern graphics cards. Integrated Intel HD Graphics is supported via an HDMI 2.1 port, enabling smooth 4K resolution at 60Hz, ideal for productivity and entertainment setups. Storage capabilities are strong, featuring two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports, with support for RAID 0, 1, 5, and 10, ensuring fast data access and flexible storage configurations. Networking is handled by a Realtek Gigabit LAN, delivering stable and dependable wired connectivity. Additional features include Realtek High Definition Audio with 7.1-channel support, multiple USB 3.2 Gen 1 ports, RGB header support, TPM header for enhanced security, and a user-friendly AMI UEFI BIOS. Backed by a 3-year warranty, the Gigabyte B760M K DDR4 motherboard offers durability, compatibility, and excellent value for Intel-based PC builds.

Features Of Gigabyte B760M K DDR4 14th/ 13th /12th Gen LGA1700 Intel Motherboard

LGA1700 Socket Support: Supports Intel 14th, 13th, and 12th Generation Core processors, along with Pentium Gold and Celeron CPUs for wide compatibility.
Intel B760 Express Chipset: Delivers a stable, efficient platform with modern features and reliable performance for daily computing and gaming.
DDR4 Memory Support: Supports DDR4 memory up to 5333MHz (OC) with dual-channel architecture and a maximum capacity of 64GB.
PCIe 4.0 Expansion: Includes a PCIe 4.0 x16 slot, providing high-speed bandwidth for modern graphics cards.
Fast Storage Options: Equipped with two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports with RAID support for flexible storage setups.
Reliable Connectivity: Features Realtek Gigabit LAN for stable, high-speed wired internet connectivity.
Advanced BIOS & Durability: Comes with a 128 Mbit AMI UEFI BIOS, TPM header support, and a 3-year warranty for long-term reliability.
