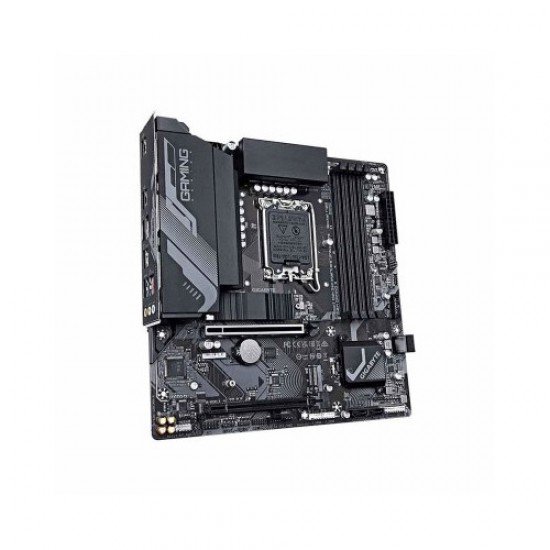

Name: GIGABYTE B760M GAMING X GEN5 DDR5 Gaming Motherboard
Brand: Gigabyte
Price: 20600.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

GIGABYTE B760M GAMING X GEN5 DDR5 Gaming Motherboard

-4 % In Stock

GIGABYTE B760M GAMING X GEN5 DDR5 Gaming Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B760M GAMING X GEN5

Based on 1 reviews. - Write a review

20,600৳

21,500৳

Ex Tax: 20,600৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Chipset: Intel® B760 Express Chipset
- Memory: Support for DDR5 7600(O.C.) /7400(O.C.)
- Onboard Graphics: Support for HDMI 2.1 version and HDCP 2.3

View More Info

Specification

Physical Specification
Supported Memory	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Basic Information
Supported CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
Chipset	Intel® B760 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Type	Support for DDR5 7600(O.C.)
Expansion Slots
M.2 Socket	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Connector & Ports
USB (s)	Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 3 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Others Information
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup

Description

GIGABYTE B760M GAMING X GEN5 DDR5 Gaming Motherboard

The GIGABYTE B760M GAMING X GEN5 DDR5 Gaming Motherboard is a high-performance motherboard engineered for Intel’s 14th, 13th, and 12th Generation Core processors, as well as Pentium Gold and Celeron CPUs, via the LGA1700 socket. Built on the Intel B760 Express chipset, this motherboard delivers reliable and efficient performance, making it an ideal choice for gamers, content creators, and PC enthusiasts seeking a stable and versatile platform. The AMI UEFI BIOS provides an intuitive interface for system setup, with PnP, DMI, and ACPI support ensuring smooth system management and compatibility. Memory performance is enhanced through support for DDR5 modules with speeds up to 7600 MHz (OC), across four DIMM slots, enabling a maximum capacity of 256 GB. The motherboard supports both ECC and non-ECC un-buffered modules and Extreme Memory Profile (XMP), allowing users to achieve optimal performance for gaming and professional workloads. For storage, the motherboard includes two M.2 slots and four SATA 6Gb/s connectors, along with RAID 0, 1, 5, and 10 support for SATA drives, offering flexible and high-speed storage options. Graphics are powered through a PCIe 5.0 x16 slot for high-performance GPUs, while onboard Intel HD Graphics support HDMI 2.1 and DisplayPort 1.2 outputs for up to 4K resolution. Connectivity features include Realtek 2.5GbE LAN, Intel Wi-Fi 6E AX210 with 2.4/5/6 GHz dual-band support, and Bluetooth 5.3, providing both wired and wireless networking options. Audio is delivered via Realtek High Definition Audio CODEC, supporting 2/4/5.1/7.1 channels and S/PDIF output with customizable settings. The motherboard offers extensive expansion and I/O options, including USB Type-C Gen 2, multiple USB Type-A ports, Thunderbolt add-in card support, RGB and addressable LED headers, CPU and system fan headers, and TPM support. Its Micro ATX form factor (24.4cm x 24.4cm) is perfect for compact builds without sacrificing functionality. Additional features include GIGABYTE Control Center (GCC), Q-Flash Plus, Smart Backup, and bundled Norton Internet Security. With a 3-year warranty, the B760M GAMING X GEN5 DDR5 ensures reliable, high-performance computing for gaming and professional applications.

Features Of GIGABYTE B760M GAMING X GEN5 DDR5 Gaming Motherboard

Wide CPU Compatibility: Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors via the LGA1700 socket, providing excellent flexibility for gaming and productivity builds.
Intel B760 Express Chipset: Ensures stable and efficient performance with advanced system management, supporting PnP 1.0a, DMI 2.7, ACPI 5.0, and SM BIOS 2.7 for seamless operations.
High-Speed DDR5 Memory: Features four DDR5 DIMM slots supporting up to 256 GB of system memory, with speeds up to 7600 MHz (OC). Supports ECC/non-ECC modules and Extreme Memory Profile (XMP) for optimized performance.
Advanced Storage Options: Equipped with 2 M.2 slots and 4 SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10, allowing high-speed storage flexibility for SSDs and HDDs.
Powerful Graphics Support: PCIe 5.0 x16 slot for high-end GPUs, with onboard Intel HD Graphics supporting HDMI 2.1 and HDCP 2.3, enabling 4K resolution and superior visual experience.
Comprehensive Connectivity: Realtek 2.5GbE LAN, Intel Wi-Fi 6E AX210, Bluetooth 5.3, multiple USB Type-C/Type-A ports, and Thunderbolt™ add-in card support for high-speed wired and wireless connections.
Enhanced Features & Software: Includes GIGABYTE Control Center (GCC), Q-Flash Plus, Smart Backup, RGB and addressable LED headers, CPU/system fan headers, TPM support, and bundled Norton® Internet Security for secure, versatile PC setups.
