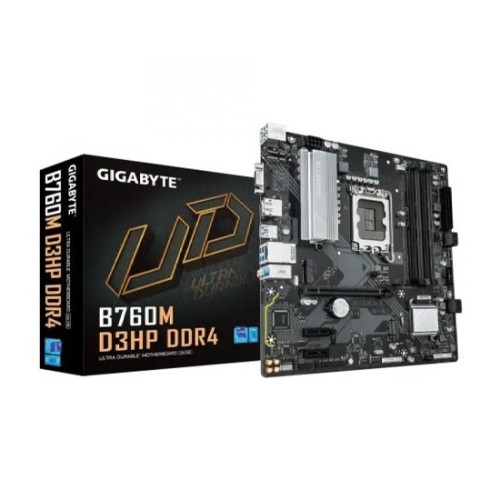

Name: GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard
Brand: GIGABYTE
Price: 16500.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard

-3 % In Stock

GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: B760M D3HP DDR4

Based on 1 reviews. - Write a review

16,500৳

17,000৳

Ex Tax: 16,500৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 4x DDR4, Max 128GB 5333(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
- Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

View More Info

Specification

Physical Specification
Slots	4
Supported Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	Supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Basic Information
Supported CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Type	DDR4
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Graphics
Graphics	Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
HDMI	1 x HDMI port
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Display Port (s)	1 x DisplayPort
USB (s)	Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
Audio	3 x audio jacks
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
D-Sub (s)	1 x D-Sub port
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Warranty	3 years Warranty

Description

GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard

The GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard is a dependable and budget-friendly solution for users looking to build a modern Intel-based PC with stable performance and essential features. Powered by the Intel B760 Express chipset and featuring the LGA1700 socket, it supports 12th, 13th, and 14th Generation Intel Core processors, along with Pentium Gold and Celeron CPUs, making it ideal for office work, home computing, and entry-level gaming. This motherboard supports DDR4 memory up to 5333MHz (OC) through four DIMM slots, allowing a maximum capacity of 128GB in dual-channel architecture. With XMP support, users can easily enhance memory performance for smoother multitasking and faster system responsiveness. Both ECC (non-ECC mode) and non-ECC unbuffered memory modules are supported, ensuring flexibility for different workloads. For graphics, the B760M D3HP offers a PCIe 4.0 x16 slot for dedicated GPUs, while onboard Intel HD Graphics are supported via HDMI 2.1, DisplayPort 1.2, and D-Sub, delivering up to 4K resolution output. This wide display compatibility supports both modern and legacy monitors. Storage options include two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports, with support for RAID 0, 1, 5, and 10, enabling fast data access and secure storage configurations. Connectivity is handled by a Realtek Gigabit LAN, ensuring stable and reliable networking. Additional features such as Realtek High Definition Audio, USB 3.2 Gen 1 including USB Type-C, RGB and addressable LED headers, Q-Flash Plus, and GIGABYTE Control Center (GCC) enhance usability and customization. With its Micro ATX form factor (24.4cm x 24.4cm) and 3-year manufacturing warranty, the GIGABYTE B760M D3HP DDR4 is a solid foundation for modern Intel PC builds.

Features Of GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard

Wide CPU Compatibility: Supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors via the LGA1700 socket for versatile performance needs.
High-Speed DDR4 Memory Support: Equipped with 4 DDR4 DIMM slots, supporting up to 128GB memory with speeds up to 5333MHz (OC) and XMP profiles.
Multiple Display Outputs: Features HDMI 2.1, DisplayPort 1.2, and D-Sub, enabling up to 4K resolution and compatibility with modern and legacy displays.
PCIe 4.0 Expansion: Includes a PCIe 4.0 x16 slot for modern graphics cards, delivering faster bandwidth and improved gaming performance.
Fast Storage Options: Comes with 2× PCIe 4.0 M.2 slots and 4× SATA 6Gb/s ports, supporting RAID 0/1/5/10 for speed and data protection.
Stable Network & Audio: Powered by Realtek Gigabit LAN for reliable connectivity and Realtek HD Audio supporting 7.1-channel surround sound.
Smart GIGABYTE Features: Includes Q-Flash Plus, GIGABYTE Control Center (GCC), RGB headers, and enhanced system management tools for easy customization and maintenance.
