| Physical Specification | ||
| Slots | 4 DIMMs | |
| Supported Memory | 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory<br> modules<br> Dual channel memory architecture<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme<br> Memory Profile (XMP) memory modules | |
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors | |
| Chipset | AMD B650 | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Type | DDR5 | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode<br> AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> * The PCIEX16 slot can only support a graphics card or an NVMe SSD.<br> Chipset:<br> - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) | |
| Graphics | ||
| Graphics | Onboard Graphics<br> Integrated Graphics Processor with AMD Radeon Graphics support<br> - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz<br> * Support for DisplayPort 1.4 version.<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3.<br> ** Support for native HDMI 2.1 TMDS compatible ports.<br> Support for up to triple-display at the same time<br> (Graphics specifications may vary depending on CPU support.) | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices<br> RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Display Port (s) | 2 x DisplayPorts | |
| USB (s) | CPU:<br> - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support<br> - 1 x USB 3.2 Gen 1 port on the back panel<br> - 1 x USB 2.0/1.1 port on the back panel<br> Chipset:<br> - 2 x USB 3.2 Gen 1 ports on the back panel<br> - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header<br> - 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Wireless Communication module<br> Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.0)<br> - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands<br> - BLUETOOTH 5.3<br> - Support for 11ax 160MHz wireless<br> Realtek Wi-Fi 6 RTL 8851BE (PCB rev. 1.1)<br> - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands<br> - BLUETOOTH 5.3<br> - Support for 11ax 80MHz wireless<br> (Actual data rate may vary depending on environment and equipment.) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:<br> AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs<br> 4 x SATA 6Gb/s connectors | |
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Internal I/O Connectors<br> 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 2 x system fan headers<br> 2 x addressable LED strip headers<br> 1 x RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C® header, with USB 3.2 Gen 1 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Q-Flash Plus button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> Back Panel Connectors<br> 1 x PS/2 keyboard/mouse port<br> 1 x USB Type-C® port, with USB 3.2 Gen 1 support<br> 3 x USB 3.2 Gen 1 ports<br> 2 x USB 2.0/1.1 ports<br> 1 x HDMI port<br> 2 x DisplayPorts<br> 2 x SMA antenna connectors (2T2R) (1T1R)*<br> * Only for Realtek Wi-Fi 6 RTL8851BE<br> 1 x RJ-45 port<br> 3 x audio jacks | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> LAN bandwidth management software | |
| Special Features | Support for GIGABYTE Control Center (GCC)<br> * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> Support for Q-Flash<br> Support for Q-Flash Plus | |
| Warranty Information | ||
| Warranty | 3 Years | |

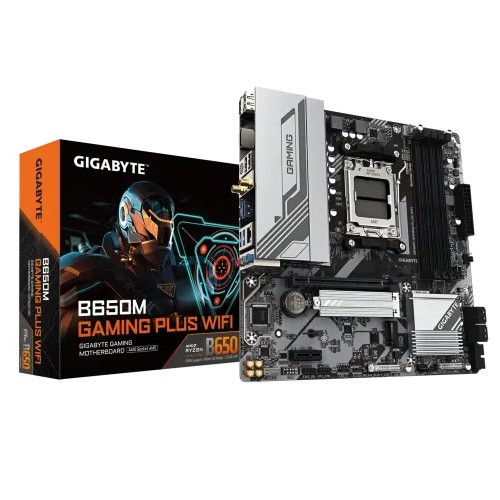

The GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard is a high-performance, compact Micro-ATX motherboard designed for gamers, content creators, and PC enthusiasts who demand reliability, speed, and advanced features. Built on the AMD B650 chipset, it supports the latest AMD Ryzen 7000 and 8000 Series processors on the AM5 socket, delivering exceptional computing power for gaming, multitasking, and productivity. Equipped with 4 DDR5 DIMM slots, the motherboard supports up to 256GB of high-speed memory, with frequencies ranging from 4400MHz up to 7600MHz (OC). Its dual-channel memory architecture, combined with support for AMD EXPO™ and XMP memory profiles, ensures optimized bandwidth, smooth multitasking, and enhanced overclocking potential for demanding applications. For graphics, the B650M GAMING PLUS WIFI includes an integrated AMD Radeon Graphics processor with 2 DisplayPorts and 1 HDMI port, supporting resolutions up to 3840x2160@144Hz and 4096x2160@60Hz, respectively, while offering triple-display capability for immersive gaming and productivity setups. Expansion options include 1 PCIe x16 slot for a graphics card, and 1 PCIe x1 slot, providing flexibility for additional components. Storage connectivity is robust, featuring 2 M.2 connectors supporting PCIe 4.0 SSDs, along with 4 SATA 6Gb/s ports and RAID 0, 1, and 10 support, allowing for versatile and high-speed storage solutions. Networking is powered by Realtek 2.5GbE LAN and dual Wi-Fi modules (Wi-Fi 6E RTL8852CE and Wi-Fi 6 RTL8851BE), offering fast and stable internet connectivity, while Bluetooth 5.3 ensures seamless wireless device connections. Audio performance is handled by the Realtek Audio CODEC, supporting 2/4/5.1/7.1-channel high-definition audio. The motherboard also features internal headers for fans, RGB lighting, and water-cooling solutions. With special features like GIGABYTE Control Center (GCC), Q-Flash, and Q-Flash Plus, system management, BIOS updates, and overclocking are simple and convenient. The motherboard comes with a 3-year warranty, making it a reliable, future-ready foundation for building a high-performance gaming or productivity PC. This Micro-ATX motherboard combines performance, connectivity, and advanced features, making it an ideal choice for gamers and professionals seeking a compact yet powerful platform.
The latest price of GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard in Bangladesh is 21,200৳ You can buy the GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard at best price from our Website or visit any of our showrooms.
