| DVR / NVR / XVR Specification | |
| Auxiliary Interface | SATA : 2, SATA interface Capacity : Up to 10 TB capacity for each disk USB Interface : Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 |
| Network | Remote Connection : 128 Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Network Interface : 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Recording | Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution : 1080p lite/720p/VGA/WD1/4CIF/CIF Frame Rate : Main stream: For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15fps For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N) Video Bitrate : 32 Kbps to 4 Mbps Dual-Stream : Support Stream Type : Video, Video & Audio Audio Compression : G.711u Audio Bitrate : 64 Kbps |
| Video and Audio | IP Video Input : 2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Analog Video Input : 32-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection HDTVI Input : 1080p25, 1080p30, 720p25, 720p30 AHD Input : 1080p25, 1080p30, 720p25, 720p30 HDCVI Input : 1080p25, 1080p30, 720p25, 720p30 CVBS Input : PAL/NTSC HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω) Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ) Audio Output : 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Synchronous Playback : 16-ch |
| General | |
| Power | Power Supply: 12 VDC |
| Power Consumption | <-18 W |
| Weight | <-2.2 kg |
| Physical Specification | |
| Others | Working Temperature : -10 °C to 55 °C (14 °F to 131 °F) Working Humidity : 10% to 90% |
| Dimensions | 380 x 320 x 48 mm |
| Warranty Information | |
| Warranty | 01 year warranty |

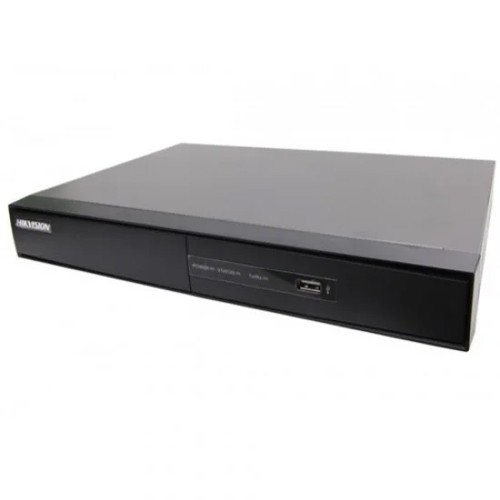

Managing large-scale surveillance systems can be challenging, especially when you need reliable performance, high storage capacity, and smooth remote monitoring. The Hikvision DS-7232HGHI-K2 32-Channel Turbo HD DVR is designed to solve these problems by offering a powerful and scalable solution for businesses, offices, and industrial environments. If you’re dealing with limited recording channels, poor video compression, or inefficient storage management, this DVR provides a complete upgrade.
Supporting up to 32 analog cameras along with additional IP camera inputs, this DVR is ideal for extensive surveillance setups. It features advanced H.265 Pro+ compression technology, which significantly reduces storage usage without compromising video quality. With dual SATA interfaces supporting up to 10TB per drive, users can store massive amounts of footage for long-term monitoring without frequent backups.
The system also offers flexible video output options, including HDMI and VGA, ensuring compatibility with various display setups. With support for multiple video formats such as HDTVI, AHD, HDCVI, and CVBS, it provides seamless integration with different camera types. Remote access through Hik-Connect and support for up to 128 simultaneous connections make it easy to monitor your security system from anywhere. Designed for continuous operation, this DVR ensures stable performance in demanding environments.
Upgrade your surveillance system with the Hikvision DS-7232HGHI-K2 32-Channel DVR from IndexIT. Get powerful performance, scalable security, and reliable monitoring, order now and protect your business with confidence!
