| Mainboard |
| Chipset | AMD B650 |
| Memory |
| Memory | Support For DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/
4800 MT/S Memory Modules
4 X DDR5 DIMM Sockets Supporting Up To 192 GB (48 GB Single DIMM Capacity) Of System Memory
Dual Channel Memory Architecture
Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules
Support For AMD EXtended Profiles For Overclocking (AMD EXPO)
And Extreme Memory Profile (XMP) Memory Modules
(The CPU And Memory Configuration May Affect The Supported Memory Types, Data Rate (Speed), And Number Of DRAM
Modules, Please Refer To "Memory Support List" On GIGABYTE's indexit For More Information.) |
| Graphics |
| Graphics | Integrated Graphics Processor With AMD Radeon Graphics Support
- 2 X DisplayPorts, Supporting A Maximum Resolution Of 3840x2160@144 Hz
* Support For DisplayPort 1.4 Version.
- 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz
* Support For HDMI 2.1 Version And HDCP 2.3.
** Support For Native HDMI 2.1 TMDS Compatible Ports.
Support For Up To Triple-Display At The Same Time
(Graphics Specifications May Vary Depending On CPU Support.) |
| Audio & Microphone |
| Audio | Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-Channel
* You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio, Access The Audio Software For Audio Settings. |
| Networking & Connectivity |
| Wireless Connectivity | Realtek Wi-Fi 6E RTL8852CE
- WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands
- BLUETOOTH 5.3
- Support For 11ax 160MHz Wireless
(Actual Data Rate May Vary Depending On Environment And Equipment.) |
| LAN | Realtek 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Ports |
| Connector | 1 X PS/2 Keyboard/Mouse Port
1 X USB Type-C Port, With USB 3.2 Gen 1 Support
3 X USB 3.2 Gen 1 Ports
2 X USB 2.0/1.1 Ports
1 X HDMI Port
2 X DisplayPorts
1 X RJ-45 Port
3 X Audio Jacks |
| Interface | 1 X M.2 Connector (M2A_CPU), Integrated In The CPU, Supporting Socket 3, M Key, Type 2580 SSDs:
- AMD Ryzen 7000 Series Processors Support PCIe 4.0 X4/X2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors Support PCIe 4.0 X4/X2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors Support PCIe 4.0 X4/X2 SSDs
1 X M.2 Connector (M2C_SB), Integrated In The Chipset, Supporting Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSDs,
4 X SATA 6Gb/S Connectors
RAID 0, RAID 1, And RAID 10 Support For NVMe SSD Storage Devices
RAID 0, RAID 1, And RAID 10 Support For SATA Storage Devices |
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector
1 X 8-Pin ATX 12V Power Connector
1 X CPU Fan Header
2 X System Fan Headers
2 X Addressable LED Strip Headers
1 X RGB LED Strip Header
2 X M.2 Socket 3 Connectors
4 X SATA 6Gb/S Connectors
1 X Front Panel Header
1 X Front Panel Audio Header
1 X USB Type-C Header, With USB 3.2 Gen 1 Support
1 X USB 3.2 Gen 1 Header
2 X USB 2.0/1.1 Headers
1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 Module Only)
1 X Q-Flash Plus Button
1 X Reset Jumper
1 X Clear CMOS Jumper |
| USB | CPU:
- 1 X USB Type-C Port On The Back Panel, With USB 3.2 Gen 1 Support,
- 1 X USB 3.2 Gen 1 Port On The Back Panel
- 1 X USB 2.0/1.1 Port On The Back Panel
Chipset:
- 2 X USB 3.2 Gen 1 Ports On The Back Panel
- 1 X USB Type-C Port With USB 3.2 Gen 1 Support, Available Through The Internal USB Header
- 2 X USB 3.2 Gen 1 Ports Available Through The Internal USB Header
- 5 X USB 2.0/1.1 Ports (1 Port On The Back Panel, 4 Ports Available Through The Internal USB Headers) |
| Technical Info |
| CPU | AMD Socket AM5, Support For:
AMD Ryzen 7000 / Ryzen 8000 Series Processors
(Go To GIGABYTE's indexit For The Latest CPU Support List.) |
| BIOS | 1 X 256 Mbit Flash
Use Of Licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Operating System | Support For Windows 11 64-Bit
Support For Windows 10 64-Bit |
| Special Features |
| Features | Support For GIGABYTE Control Center (GCC)
* Available Applications In GCC May Vary By Motherboard Model. Supported Functions Of Each Application May Also Vary Depending On Motherboard Specifications.
Support For Q-Flash
Support For Q-Flash Plus |
| Software | Norton Internet Security (OEM Version)
LAN Bandwidth Management Software |
| Physical Specification |
| Expansion Slots | 1 X PCI Express X16 Slot (PCIEX16), Integrated In The CPU:
- AMD Ryzen 7000 Series Processors Support PCIe 4.0 X16 Mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors Support PCIe 4.0 X8 Mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors Support PCIe 4.0 X4 Mode
* The PCIEX16 Slot Can Only Support A Graphics Card Or An NVMe SSD. If Only One Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot.
Chipset:
- 1 X PCI Express X1 Slot, Supporting PCIe 3.0 And Running At X1 (PCIEX1) |
| Form Factor | Micro ATX Form Factor; 24.4cm X 24.4cm |
| Others |
| Other Features | I/O Controller - ITE I/O Controller Chip
H/W Monitoring
Voltage Detection
Temperature Detection
Fan Speed Detection
Fan Fail Warning
Fan Speed Control |
| Warranty Information |
| Warranty | 3 YEAR |

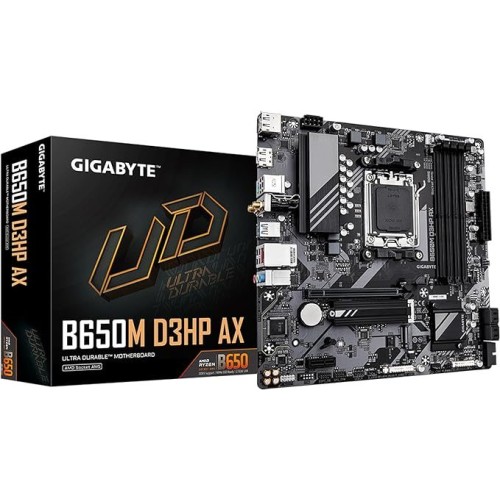

Gigabyte B650M D3HP AX AM5 Motherboard – Powerful Performance in a Compact Design
The Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard is a feature-rich and performance-focused motherboard designed for modern AMD Ryzen 7000 and 8000 Series processors. Built on the AMD B650 chipset, this board delivers the perfect combination of speed, stability, and next-gen connectivity—making it an ideal choice for gamers, content creators, and PC enthusiasts looking for a compact yet powerful setup.
This motherboard supports the latest DDR5 memory, offering speeds up to 7600+ MHz (OC) for exceptional responsiveness and multitasking performance. With four DDR5 DIMM slots supporting up to 192GB, users can enjoy smoother workflows and future-proof memory capacity. It also supports AMD EXPO and XMP profiles, allowing effortless overclocking for maximum performance. For graphics output, the Gigabyte B650M D3HP AX includes dual DisplayPorts and one HDMI 2.1 port, supporting up to triple-monitor setups. This makes it perfect for high-resolution gaming, productivity, and streaming. The integrated Realtek Audio CODEC ensures immersive, high-definition sound with configurable 2/4/5.1/7.1 channels. Connectivity is a major highlight thanks to the inclusion of Realtek Wi-Fi 6E, delivering ultra-fast wireless speeds on 2.4/5/6 GHz bands, along with Bluetooth 5.3 for seamless device pairing. Additionally, the 2.5GbE LAN provides strong and stable wired networking for competitive online gaming. For storage, users get two high-speed M.2 slots supporting PCIe 4.0 x4 SSDs and four SATA 6Gb/s ports, ensuring fast data access and flexible storage configuration. RAID 0/1/10 is supported for both NVMe and SATA drives, giving advanced users powerful data management options.
The board includes a good selection of internal and external connectivity options. On the back panel, users get USB Type-C, USB 3.2 Gen 1, USB 2.0, DisplayPort, HDMI, and more. Internally, it includes multiple fan headers, RGB and ARGB headers, TPM support, and Q-Flash Plus for easy BIOS updates. With a Micro-ATX form factor, the Gigabyte B650M D3HP AX fits compact builds while still offering excellent expandability, including a PCIe 4.0 x16 slot for GPUs and a PCIe 3.0 x1 slot for additional cards. Backed by a 3-year warranty, this motherboard provides reliability, durability, and exceptional performance—making it a standout choice for modern AMD-based systems.
