Specification
| Basic Information |
| Supported CPU |
AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors |
| Chipset |
AMD B650 |
| BIOS |
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
| Audio |
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Expansion Slots |
| PCI |
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Memory |
| Type |
DDR5 |
| Slots |
4 DIMMs |
| Supported Memory |
8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Maximum Memory |
up to 192 GB (48 GB single DIMM capacity) |
| Graphics |
| Graphics |
Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports. |
| Connector & Ports |
| HDMI |
1x HDMI |
| Display Port (s) |
1 x DisplayPorts |
| USB (s) |
CPU:
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel |
| LAN Port (s) |
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module |
Realtek Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless
(Actual data rate may vary depending on environment and equipment.) |
| Supported Storage |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors |
| RAID |
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio |
3 x Audio jacks |
| Internal I/O Ports |
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

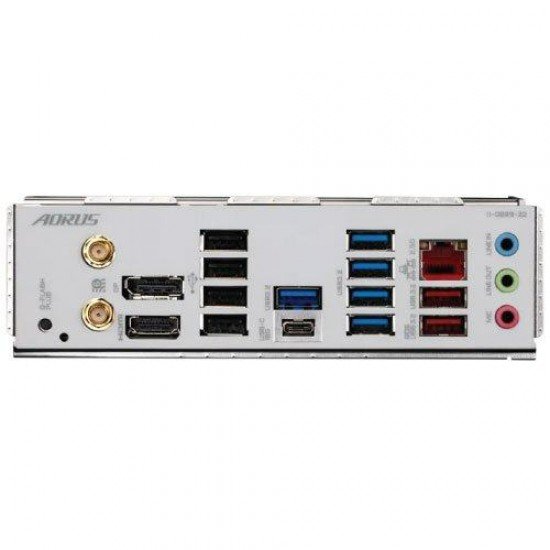

Back Panel Connectors
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)jk
1 x DisplayPort
1 x HDMI port
1 x USB Type-C port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks |
| TPM (Trusted Platform Module ) |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Others |
| Special Features |
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus |
| Bundled Software |
Norton Internet Security (OEM version)
LAN bandwidth management software |
| Warranty Information |
| Manufacturing Warranty |
3 Years |

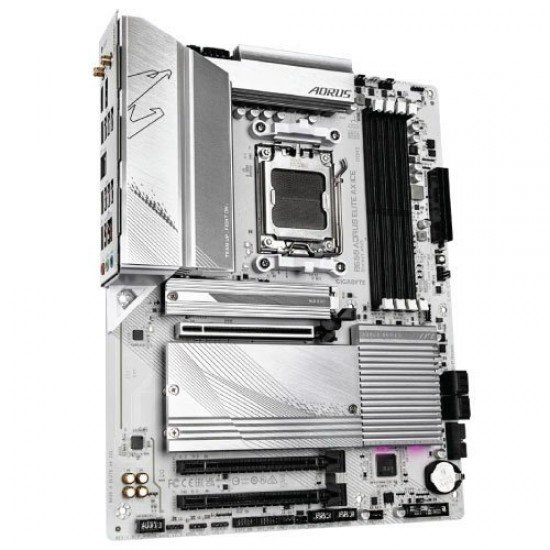

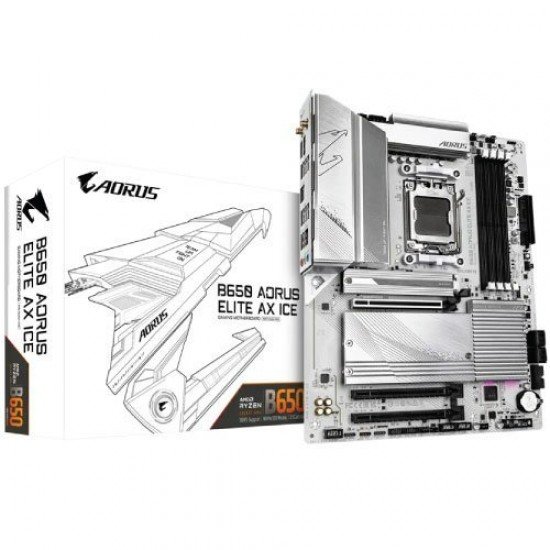

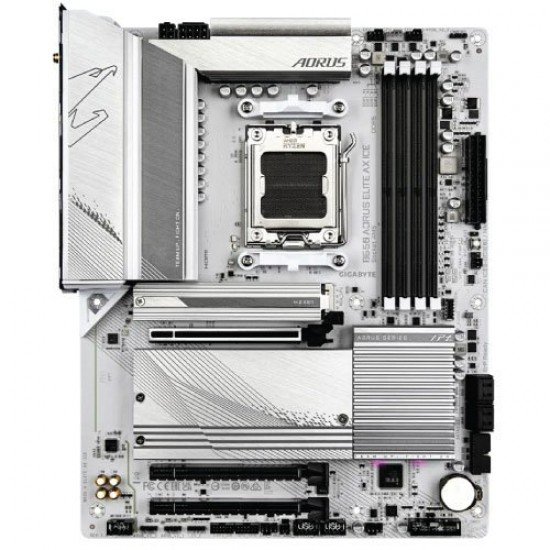

GIGABYTE B650 AORUS ELITE AX ICE DDR5 ATX Motherboard
The GIGABYTE B650 AORUS ELITE AX ICE DDR5 AM5 ATX Motherboard is a premium, future-ready platform designed for gamers, content creators, and PC enthusiasts who demand high performance, stability, and advanced features. Built on the powerful AMD B650 chipset, this motherboard supports the latest AMD Ryzen 7000 and 8000 Series processors, offering exceptional processing power for gaming, productivity, and multitasking.
This motherboard is equipped with DDR5 memory support, offering speeds up to 8000(OC) MT/s, ensuring faster load times, smoother performance, and enhanced overclocking capabilities. With four DIMM slots and support for up to 192GB, users can enjoy maximum flexibility and upgrade potential. The advanced memory architecture supports both AMD EXPO™ and XMP profiles, making it easier to achieve stable and optimized memory performance. Graphics and storage are major strengths of the B650 AORUS ELITE AX ICE. The primary PCIe x16 slot, integrated with the CPU, supports PCIe 4.0 mode, delivering excellent bandwidth for modern GPUs. With three M.2 slots supporting PCIe 4.0 and 5.0 SSDs (depending on CPU model), users benefit from ultra-fast storage performance, reduced loading times, and enhanced data transfer speeds. Additionally, four SATA 6Gb/s ports provide ample storage expansion options. Connectivity is one of this motherboard’s strongest features. It comes with USB 3.2 Gen 2x2 Type-C, multiple USB 3.2 ports, DisplayPort, HDMI, and a solid set of internal I/O connectors. Networking is powered by Realtek 2.5GbE LAN and high-speed Wi-Fi 6E, along with Bluetooth 5.3, ensuring fast and stable wireless connectivity for online gaming and streaming.
The motherboard also includes high-quality Realtek HD Audio supporting 7.1-channel sound, offering a rich audio experience for gaming and media consumption. With enhanced cooling features, including multiple fan headers and water cooling pump support, your system stays cool even under heavy workloads. Extra conveniences include Q-Flash, Q-Flash Plus, support for GIGABYTE Control Center, and a durable ATX form factor with reinforced components. Backed by a 3-year warranty, the GIGABYTE B650 AORUS ELITE AX ICE is an excellent choice for next-gen AMD PC builds.
