Name: Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard
Brand: Gigabyte
Price: 16800.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard

-4 % In Stock

Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B550M GAMING X WIFI6

Based on 1 reviews. - Write a review

16,800৳

17,500৳

Ex Tax: 16,800৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU - AMD Ryzen 5000 G-Series
- Chipset - AMD B550
- Form Factor - Micro ATX
- LAN - Realtek GbE LAN chip

View More Info

Specification

Physical Specification
Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Basic Information
Chipset	AMD B550
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Others	iTE I/O Controller Chip
Graphics
Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Maximum shared memory of 16 GB
Input Devices

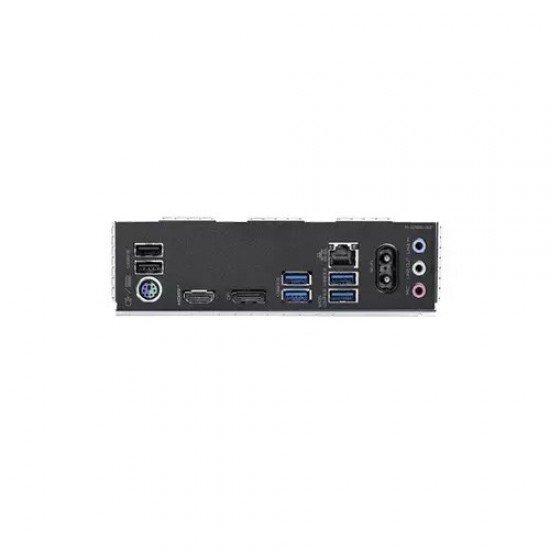

External I/O Ports	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x antenna connectors 3 x audio jacks
Connectivity
USB	CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Connector & Ports
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs - AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
Network & Connectivity
Bluetooth	Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
LAN	Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
WiFi	Realtek Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
Physical Specification
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for APP Center BIOS - EasyTune - RGB Fusion - Smart Backup - System Information Viewer Support for Q-Flash Plus Support for Q-Flash
Warranty Information
Warranty	3-Years

Description

Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard

The GIGABYTE B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard is a feature-rich, high-performance motherboard designed for gamers, content creators, and PC enthusiasts seeking reliability, speed, and advanced functionality in a compact Micro-ATX form factor. Built on the AMD B550 chipset, it supports a wide range of AMD Ryzen processors, including the Ryzen 5000, 4000 G-Series, and 3000 Series, delivering exceptional computing power for gaming, multitasking, and productivity tasks. Equipped with 4 DDR4 DIMM slots, this motherboard supports up to 128GB of high-speed memory with frequencies ranging from 2133MHz to 3200MHz, offering dual-channel memory architecture. It supports both ECC and non-ECC unbuffered DIMMs, as well as Extreme Memory Profile (XMP), allowing users to optimize memory performance for demanding applications and overclocking scenarios. For graphics, the motherboard features an integrated AMD Radeon Graphics processor with 1 DisplayPort and 1 HDMI port, supporting resolutions up to 5120x2880@60Hz and 4096x2160@60Hz respectively. This enables immersive visual experiences and dual-display setups, while dedicated PCIe slots allow users to expand their system with high-performance graphics cards. Storage options are robust, including 2 M.2 connectors and 4 SATA 6Gb/s ports, with support for RAID 0, 1, and 10 configurations for both NVMe and SATA drives, providing fast and reliable storage solutions. Networking and connectivity are enhanced with a Realtek GbE LAN chip and Realtek Wi-Fi 6 RTL8851BE, supporting dual-band wireless connections and Bluetooth 5.3. The motherboard also includes high-definition audio via the Realtek ALC1220 CODEC with support for 2/4/5.1/7.1-channel audio, ensuring crystal-clear sound for gaming and multimedia. Additional features include GIGABYTE’s APP Center, RGB Fusion, EasyTune, Q-Flash Plus, and multiple fan and temperature monitoring controls, allowing users to customize and manage their system efficiently. With a 3-year warranty, the GIGABYTE B550M GAMING X WIFI6 is a reliable, future-ready motherboard ideal for building high-performance, compact gaming and productivity PCs.

Features Of Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard

Supported CPU: Compatible with AMD Ryzen 5000, 4000 G-Series, and 3000 Series processors for AM4 socket, delivering high-performance computing for gaming, productivity, and multitasking.
Chipset: Built on the AMD B550 chipset, offering advanced connectivity, PCIe 4.0 support, and robust performance optimization for modern PC builds.
Memory Support: 4 DDR4 DIMM slots supporting up to 128GB memory, with speeds from 2133MHz to 3200MHz. Supports dual-channel architecture, ECC and non-ECC modules, and XMP profiles for enhanced memory performance.
Graphics Output: Integrated AMD Radeon Graphics with 1 DisplayPort (up to 5120x2880@60Hz) and 1 HDMI port (up to 4096x2160@60Hz), supporting HDR and dual-display setups for immersive visuals.
Storage Options: Includes 2 M.2 connectors and 4 SATA 6Gb/s ports with RAID 0, 1, and 10 support for NVMe and SATA drives, ensuring high-speed and reliable storage solutions.
Networking & Connectivity: Realtek GbE LAN chip, Realtek Wi-Fi 6 RTL8851BE with dual-band support, and Bluetooth 5.3 for fast, stable wired and wireless connections.
Audio & Special Features: High-definition Realtek ALC1220 CODEC with 2/4/5.1/7.1-channel audio, along with APP Center, EasyTune, RGB Fusion, Q-Flash Plus, and fan/temperature monitoring for complete system customization and control.
