| Basic Information | ||
| Storage | 1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type<br> 25110/22110/2580/2280 SSDs:<br> AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type<br> 25110/22110/2580/2280 SSDs:<br> AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs<br> 4 x SATA 6Gb/s connectors<br> RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices<br> RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Chipset | AMD B650 | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Audio | Realtek® Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Memory | Support for DDR5<br> 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/<br> 6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/<br> 6000(OC)/5600(OC)/5200/4800/4400<br> MT/s memory modules<br> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system<br> memory<br> Dual channel memory architecture<br> Support for non-ECC Un-buffered DIMM<br> 1Rx8/2Rx8/1Rx16 memory modules<br> Support for AMD EXtended Profiles for<br> Overclocking (AMD EXPO™) and Extreme<br> Memory Profile (XMP) memory modules<br> (The CPU and memory configuration may<br> affect the supported memory types, data rate<br> (speed), and number of DRAM modules,<br> please refer to "Memory Support List" for more information.) | |
| Operating System | Support for Windows 11 64-bit<br> Support for Windows 10 64-bit | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support:<br> - 1 x DisplayPort, supporting a maximum<br> resolution of 3840x2160@144 Hz<br> * Support for DisplayPort 1.4 version and HDR.<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3.<br> ** Support for native HDMI 2.1 TMDS compatible ports.<br> (Graphics specifications may vary depending on CPU support.) | |
| Connector | ||
| CPU | AMD Socket AM5, support for:<br> AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors | |
| External Features | ||
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode<br> AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| I/O Port | 1 x Q-Flash Plus button<br> 2 x SMA antenna connectors (2T2R)jk<br> 1 x DisplayPort<br> 1 x HDMI port<br> 1 x USB Type-C® port, with USB 3.2 Gen 2 support<br> 2 x USB 3.2 Gen 2 Type-A ports (red)<br> 5 x USB 3.2 Gen 1 ports<br> 4 x USB 2.0/1.1 ports<br> 1 x RJ-45 port<br> 1 x optical S/PDIF Out connector<br> 2 x audio jacks | |
| Connectivity | ||
| USB | CPU:<br> - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support<br> - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> CPU + USB 2.0 Hub:<br> - 4 x USB 2.0/1.1 ports on the back panel<br> Chipset:<br> - 1 x USB Type-C® port with USB 3.2 Gen 2x2<br> support, available through the internal USB header<br> - 3 x USB 3.2 Gen 1 ports (1 port on the back panel,<br> 2 ports available through the internal USB header)<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers<br> Chipset+USB 3.2 Gen 1 Hub:<br> - 4 x USB 3.2 Gen 1 ports on the back panel | |
| Connector & Ports | ||
| Wireless Communication module | Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)<br> - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz<br> carrier frequency bands<br> - BLUETOOTH 5.3<br> - Support for 11ax 160MHz wireless standard<br> Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)<br> - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands<br> - BLUETOOTH 5.3<br> - Support for 11ax 160MHz wireless standard | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 3 x system fan headers<br> 1 x system fan/water cooling pump header<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 1 x CPU cooler LED strip/RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x serial port header<br> 1 x THB_U4 add-in card connector<br> 1 x Trusted Platform Module header (For the GC-<br> TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)<br> 1 x reset button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper | |
| Network & Connectivity | ||
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Physical Specification | ||
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Warranty Information | ||
| Warranty | 03 years | |

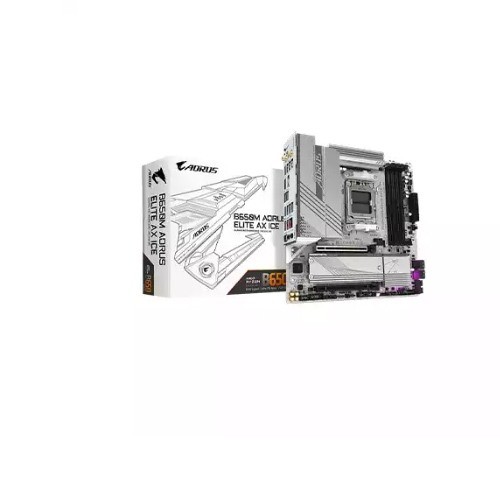

The Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard is designed for users who demand stability, speed, and future-ready performance in a compact form factor. Built on the advanced AMD B650 chipset and AM5 socket platform, this motherboard is optimized for next-generation Ryzen processors, ensuring you get maximum computing power whether you are gaming, streaming, or handling professional workloads. It supports high-speed DDR5 memory, which significantly improves data transfer rates and overall system responsiveness, reducing lag and boosting multitasking efficiency. With integrated WiFi support and enhanced thermal design, it delivers stable connectivity and long-term durability even under heavy usage. This motherboard is ideal for gamers, content creators, and PC enthusiasts who want a balanced combination of performance and reliability. If you are building a powerful yet compact system, this board provides the perfect foundation. It also ensures compatibility with modern GPUs and storage solutions, making your PC build more future-proof. Whether you are upgrading your old system or building a new high-performance rig, this motherboard offers exceptional value and premium features that enhance your entire computing experience.
Users report that the Gigabyte B650M AORUS ELITE AX ICE delivers excellent stability and smooth performance even under heavy workloads. Gamers appreciate its fast boot times and reliable DDR5 memory handling, which significantly improves gameplay experience without lag or crashes. Many users also highlight the strong thermal performance, noting that the system remains cool even during extended gaming or rendering sessions. The built-in WiFi feature is praised for its consistent connectivity, making it a convenient choice for modern setups. Overall, customers consider it a solid investment for both gaming and productivity-focused PC builds.
If you are planning to build or upgrade your system, the Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard is a smart choice for long-term performance and reliability. At Index IT, we provide trusted technology solutions and the latest hardware products to ensure your PC build meets modern demands. This motherboard is perfect for gaming, content creation, and professional workloads, making it a versatile option for different users. Explore more reliable motherboard and PC components categories on Index IT to find compatible products for your build. Don’t miss the opportunity to enhance your computing experience with a future-ready platform that delivers speed, stability, and efficiency in every task.
The latest price of Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard in Bangladesh is 28,800৳ You can buy the Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard at best price from our Website or visit any of our showrooms.
