Specification
| Paper Handling |
| Sizes | Max.: 8.5" x 11.7" duplex/simplex, 8.5" x 14" simplex
Min.:3.5" x 6.7" duplex, 3.5" x 5" simplex |
| Weight | 50 to 120 g/m2 |
| Input Capacity | 200 pages |
| Monthly Print Volume | 45000 |
| Scan Features |
| Bit depth | Color Bit Depth:
RGB x 30-bit internal / external
Grayscale Bit Depth:
8-bit per pixel internal / external |
| Connectivity | Minimum System Requirements:
Windows 10, Windows 8/8.1, Windows 7
Mac OS X 10.6.8 − 10.11.x
Software requires Internet connection for download and installation.
Standard Connectivity:
SuperSpeed USB 3.0 |
| Duty cycle (daily) | 1,500 sheets |
| Scan Technology | Scanner Type:
Flatbed color document scanner
Optical Sensor:
Contact Image Sensor (CIS)
Light Source:
3-color LED technology |
| Resolution | Optical Resolution:
Flatbed: 1200 dpi
ADF: 600 dpi
Hardware Resolution:
Flatbed: 1200 x 1200 dpi
ADF: 600 dpi |
| Speed | 25 ppm simplex, 10 ipm duplex (300 dpi, Black-and-White, Grayscale, Color) |
| Max Document Size | Max.: 8.5" x 11.7" duplex/simplex, 8.5" x 14" simplex |
| Physical Specification |
| Color | White |
| Dimensions (W x D x H) | 12.5" x 17.7" x 4.8" (W x D x H) |
| Weight | 9 lb |
| Voltage | AC 100 – 120V |
| Warranty Information |
| Warranty | 1 Year Warranty |
Description

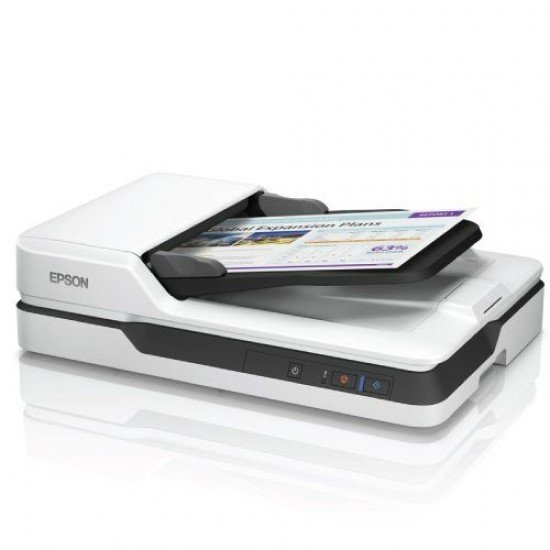

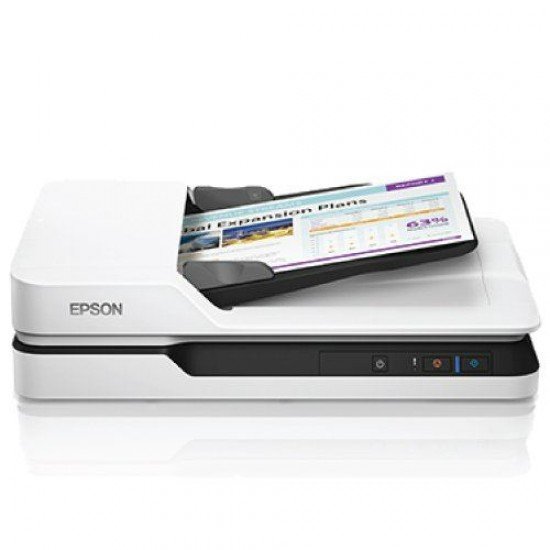

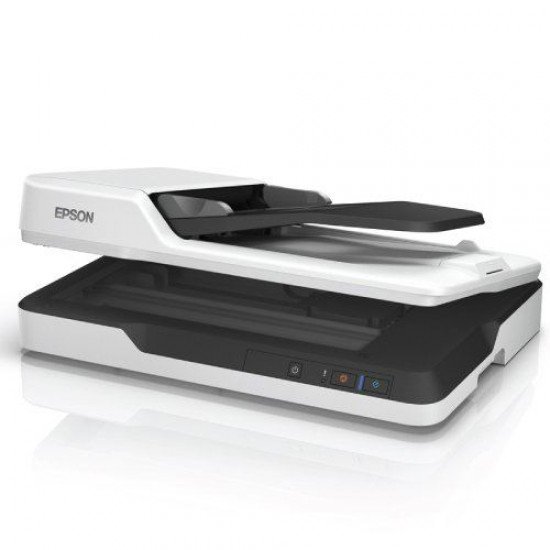

Epson DS-1630 Flatbed and Sheet Fed Color Legal Document Scanner with ADF
Streamline workflows and increase productivity with the DS-1630 document scanner. Combining a flatbed scanner with the convenience of a 50-page ADF, this affordable solution is ideal for virtually any task. Quickly scan stacks of documents up to 8.5" x 14". Or, use the flatbed for IDs, passports, booklets, fragile items and more. Offering speeds up to 25 ppm, plus auto-duplexing, the DS-1630 also includes TWAIN and ISIS drivers for seamless integration with existing document management systems. Scan to a PC, Mac or online storage accounts with one touch. Plus, the included software suite features Epson Document Capture.
