Specification
General |
Functions |
Print Only |
Printer Type |
5-Colour 36" (914 mm) |
Output Color |
Color |
Print |
Technology |
Ink |
Print Speed |
CAD Drawings, A0: 26 sec [Fast (Custom Q5)] 35 sec [Fast] 1 min 6 sec [Standard]
Poster, A0: 29 sec [Fast (Custom Q5)] 41 sec [Fast] 1 min 15 sec [Standard] |
Print Resolution |
2400 x 1200dpi |
Duplex |
Manual |
Paper Information |
Paper Type |
Roll Paper: Two Roll, Front Load, Front Output / Top Output Cut Sheet: Front Load, Front Output*3 |
Paper Weight |
Roll Paper: One Roll, Top Load, Front Output Cut Sheet: Top Load, Front Output Media Width (Roll/Cut Sheet): Roll Width: 203.2 ~ 917 mm; Cut Sheet Width: 203.2 ~ 917 mm |
ADF |
No |
Technical Specs |
Memory |
Standard: 128 GB Physical: 2 GB Hard Disk: 500 GB (Encrypted) |
Connectivity |
USB, LAN, Wi-Fi |
Power Consumption |
Printing: 157W or less Sleep Mode: 2.0 W or less Power Off: 0.3 W or less Power Supply: AC 100 - 240 V, 50 - 60 Hz |
Physical Specs |
Color |
White |
Dimension |
Main Unit: 1548 x 762 x 1126 mm (Basket Closed) Main Unit + Paper Output Support + Top Output Guide: 1548 x 1293 x 1189 mm (Basket Open) 1548 x 960 x 1189 mm (Basket Closed) |
Weight |
Main Unit: 206 kg Main Unit + Paper Output Support + Top Output Guide: 207 kg |
Support |
Toner/ Cartridge/ Refill |
PFI-8340 (330 ml) / PFI-8740 (700 ml) Matte Black / Black / Cyan / Magenta / Yellow |
Warranty Information |
Warranty |
1-year Limited warranty, an Adapter/Power Cable with no warranty, and also a Box Mandatory While Claiming. |

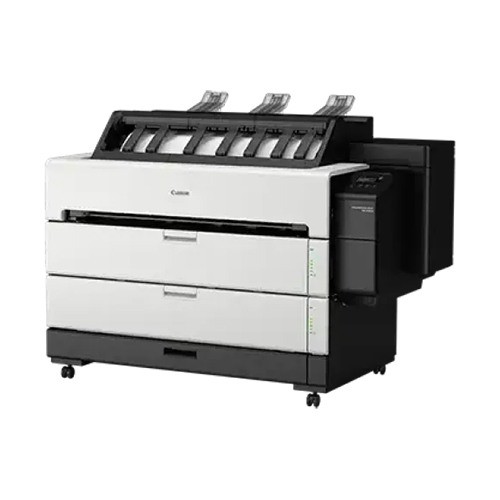

Canon imagePROGRAF TZ-5300 Large Format Printer
Canon imagePROGRAF TZ-5300 Large Format Printer, a cutting-edge solution designed for professionals in need of high-speed, high-quality printing for CAD drawings, posters, and other large-format applications. This printer is engineered to deliver exceptional performance, making it an essential tool for architects, engineers, and graphic designers.
With a maximum print resolution of 2400 x 1200 dpi, the TZ-5300 produces sharp, vibrant prints that capture every detail of your designs. It boasts impressive print speeds, achieving 26 seconds for A0 CAD drawings in fast mode and 29 seconds for A0 posters, ensuring quick turnaround times for large projects. The printer is capable of handling various media types, including roll paper and cut sheets, with widths ranging from 203.2 mm to 917 mm.
The TZ-5300 features a dual-roll feeding unit, allowing users to load up to two rolls of media simultaneously. This innovative design reduces the frequency of switching between different media types, enhancing productivity during high-volume printing tasks. Additionally, the top delivery tray supports stacking of up to 100 A0 size sheets, making it ideal for busy work environments.
Equipped with 128 GB of standard memory and a 500 GB encrypted hard disk, the TZ-5300 ensures smooth processing of large files. Connectivity options include USB, LAN, and Wi-Fi, allowing for easy integration into any office setup. The printer also supports mobile printing through Canon's mobile applications, making it convenient to print directly from smartphones and tablets.
Designed with user-friendliness in mind, the TZ-5300 features a sleek white exterior and a compact footprint, measuring 1548 x 762 x 1126 mm and weighing 206 kg.
Backed by a one-year limited warranty, the Canon imagePROGRAF TZ-5300 is a reliable and high-performance printer that meets the demands of professionals seeking quality and efficiency in large-format printing. Elevate your printing capabilities with this exceptional device, designed to deliver outstanding results every time.
