| Model |
Hikvision DS-7204HUHI-K1 |
| Type |
4 Channel Turbo HD DVR |
| Video Input Channel (BNC) |
4-ch, BNC Interface (1.0Vp-p, 75Ω) |
| Max HDD Support (GB,TB) |
Up to 8TB capacity for each disk |
| Video Compression/Format |
H.265 Pro/H.265 Pro+/H.265/H.264/H.264+ |
| Video Recording Res. |
5MP, 4MP, 3MP, 1080P, 720P, WD1, 4CIF, VGA, CIF |
| Video Output (VGA) |
1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output (HDMI) |
1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Audio Input Channel (RCA) |
RCA (2.0 Vp-p, 1KΩ) |
| Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1KΩ) |
| Network Interface (RJ45) |
1, RJ45 10M/100M self-adaptive Ethernet interface |
| USB Port |
2 x USB2.0 |
| Number HDD Interface (SATA) |
1 SATA Interface |
| Dual Stream Support |
Support |
| Audio Output Channel |
1-ch, RCA (Linear, 1KΩ) |
| Audio Compression |
G.711u |
| Frame Rate |
Main stream: 5 MP 12fps/4 MP 15fps/3 MP 18fps 1080p/720p/WD1/4CIF/VGA/CIF 25fps (P)/30fps (N), Sub-stream: WD1/4CIF/CIF 25fps (P)/30fps (N) |
| Power Supply |
12VDC |
| Stream Type |
Video/Video & Audio |
| Dimensions |
315 x 242 x 45mm |
| Others |
Video Bit Rate: 32 Kbps-10 Mbps, Audio Bit Rate: 64kbps, Remote connections: 32, Network protocols: TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS,ONVIF, Serial Interface: 1; standard RS-485 serial interface, half-duplex, Consumption: -<10W(without hard disks), Weight: 1.16kg |
| Part No |
DS-7204HUHI-K1 |
| Warranty |
1 year |
| Made in/ Assemble |
China |
| Country Of Origin |
China |

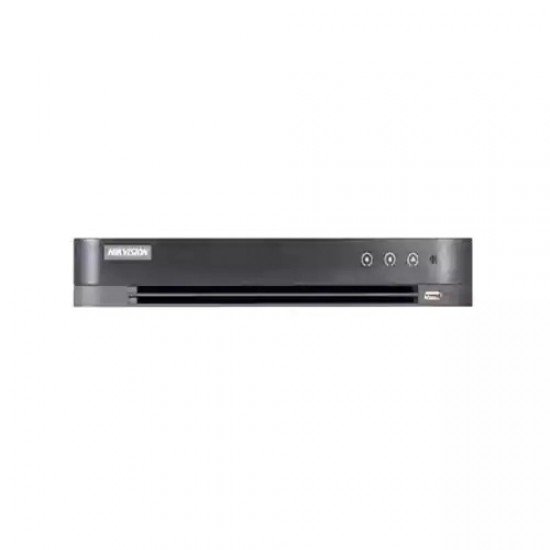

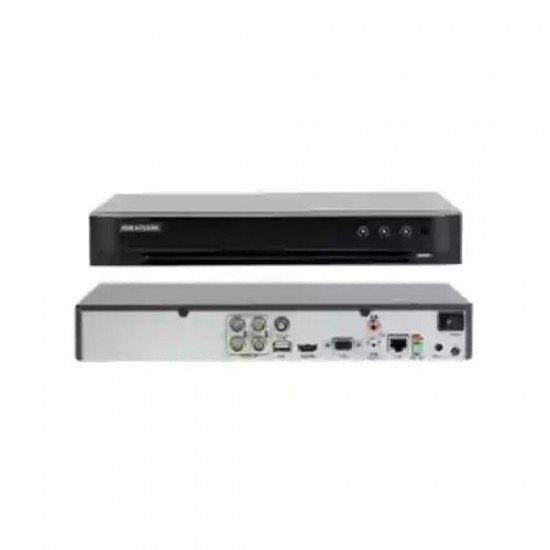

Hikvision DS-7204HUHI-K1 4 Channel Turbo HD DVR
The Hikvision DS-7204HUHI-K1 is a cutting-edge 4-channel Turbo HD DVR designed to provide advanced video surveillance solutions. This compact and robust device showcases Hikvision's commitment to innovation and reliability in the field of security systems. With support for multiple video compression formats, including H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264, this DVR ensures efficient video storage and transmission, optimizing bandwidth usage without compromising on image quality. The 4-channel BNC interface allows for versatile video input connectivity, accommodating analog and HD-TVI video inputs at resolutions ranging from 720p to 1080p. The DVR boasts impressive video output capabilities, supporting VGA and HDMI interfaces with resolutions of 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, and 1024 x 768/60Hz. This facilitates flexible display options, ensuring compatibility with various monitors and screens. The device's video recording capabilities cover a wide range of resolutions, from 4MP and 3MP to standard 1080p and 720p, providing users with the flexibility to choose the desired level of detail based on their surveillance requirements. The H.265 video compression technology further enhances the efficiency of video storage, allowing for extended recording periods without compromising the quality of footage. The DS-7204HUHI-K1 features a 1 SATA interface supporting up to 6TB capacity per disk, providing ample storage space for extended recording periods. Additionally, its network capabilities include two IP video inputs, further expanding the surveillance coverage by accommodating up to 18 channels. The device is housed in a compact Mini 1U chassis, making it suitable for various installation environments. With a working temperature range of -10°C to +55°C and a humidity tolerance of 10% to 90%, this DVR is designed to operate reliably in diverse environmental conditions. The Hikvision DS-7204HUHI-K1 Turbo HD DVR is a versatile and reliable solution, combining advanced features, efficient video compression, and robust build quality to meet the evolving needs of modern video surveillance applications.
Advanced Key Features of Hikvision DS‑7204HUHI‑K1 4 Channel Turbo HD DVR
The Hikvision DS‑7204HUHI‑K1 4 Channel Turbo HD DVR is a compact yet powerful digital video recorder designed for small to medium surveillance systems. It combines advanced recording technology, flexible camera compatibility, and efficient storage management to deliver reliable performance for homes, offices, and retail environments.
Advanced Key Features:
-
Supports Up to 4 Cameras – Ideal for smaller surveillance setups, allowing recording of up to four analog cameras with Turbo HD clarity.
-
High‑Efficient Video Compression – Uses H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 codecs to significantly reduce storage needs while maintaining high‑quality video.
-
Flexible Recording Resolutions – Offers multiple resolution and frame rate options for optimized recording, including 1080p Lite and 720p formats.
-
Dual Stream Support – Enables simultaneous local recording and remote streaming, ensuring smooth playback and efficient bandwidth usage.
-
Multi‑Format Camera Compatibility – Works seamlessly with HDTVI, AHD, HDCVI, and CVBS cameras for versatile system integration.
-
Remote Access & Network Protocols – Supports up to 128 remote connections via TCP/IP, Hik‑Connect, ONVIF, DDNS, HTTPS, and more for easy monitoring from anywhere.
-
Playback & Display Flexibility – HDMI and VGA outputs support Full HD output, making live view and playback clear and convenient.
-
Expandable Storage – Features a SATA interface with support for large capacity HDD (up to 10TB) to store extensive video footage.
This DVR is a solid choice in the DVR category, designed for dependable daily surveillance backed by trusted Hikvision technology. At Index IT, we offer genuine security solutions and expert support to help you build or upgrade your monitoring system with confidence.
