Description |
12 VDC Power Adapter |
|
Weight |
Approx. 85 g (0.19 lb.) |
|
Appearance |
Black |
|
Dimension |
79 mm × 38 mm × 26 mm (3.11" × 1.50" × 1.02") |
|
Output Power |
12 W Max. |
|
Operating Conditions |
-10°C to 40°C (14°F to 104°F), Humidity: 10% to 90% (non-condensing) |
|
Input |
170 to 240 VAC, 50 Hz |
|
Output |
12 VDC/1 A |
|
Ripple & Noise 150 MVp-P |
0.20 Vp-p (200 mV) |
|
Mounting Style |
Desktop |
|
AC Input Connector |
US PLUG |
|
DC Output Connector |
DC Plug: Straight Φ 5.5 × 2.1 × 10 mm, DC Cable: 24AWG 2468 0.8M BLACK |
|
Input Cord Length |
350 mm (13.78") |
|
Output Cord Length |
800 mm (31.50") |

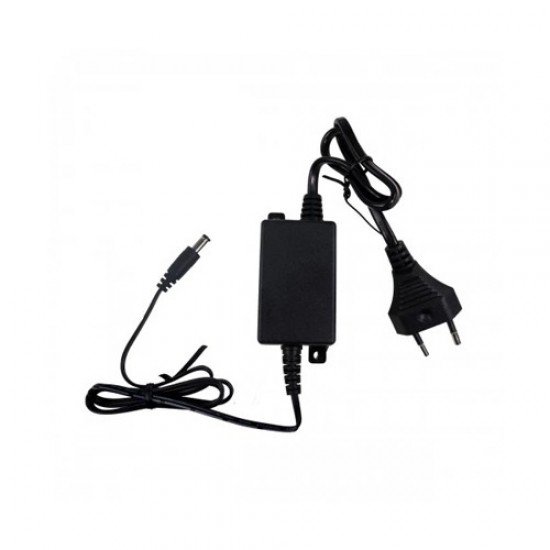

Hikvision DS-2FA1201-DL Power Adapter
Hikvision DS-2FA1201-DL Power Adapter is a reliable and efficient solution for powering various devices, particularly CCTV cameras and other electronic equipment. This compact adapter operates at 12 VDC, providing a maximum output power of 12 watts, making it suitable for devices that require stable and consistent power supply.
Weighing approximately 85 grams (0.19 lb), the DS-2FA1201-DL is lightweight and easy to handle, allowing for convenient placement in any environment. Its dimensions of 79 mm × 38 mm × 26 mm (3.11" × 1.50" × 1.02") make it compact enough to fit into tight spaces without compromising on performance.
Designed for desktop use, this power adapter features a US plug for easy connectivity to standard electrical outlets. The input specifications range from 170 to 240 VAC at 50 Hz, ensuring compatibility with various power systems. The output is a steady 12 VDC at 1 A, with a ripple and noise level of 150 mVp-p, ensuring clean power delivery to connected devices.
The operating conditions for the DS-2FA1201-DL range from -10°C to 40°C (14°F to 104°F) with a humidity tolerance of 10% to 90% (non-condensing), making it suitable for a variety of indoor environments. The adapter is equipped with a DC output connector measuring Φ 5.5 × 2.1 × 10 mm, and it comes with an output cord length of 800 mm (31.50 inches) and an input cord length of 350 mm (13.78 inches), providing flexibility in installation.
In summary, the Hikvision DS-2FA1201-DL Power Adapter is an essential accessory for ensuring reliable power supply to your devices, combining compact design, efficient performance, and ease of use in one dependable package.
