| General | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Pan/Tilt/Rotation | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Power | 12 VDC ±25% |
| Power Consumption | Max. 4 W |
| Weight | 310 g (0.68 lb.) |
| Camera | |
| Electronic Shutter Speed | PAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| IR Distance | 20m |
| Minimum Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Lens | |
| Angle of View | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Lens Type | 2.8 mm, 3.6 mm fixed focal lens |
| Mount Type | M12 |
| Video | |
| Day/Night | IR cut filter |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Resolution | 1920 (H) × 1080 (V) |
| Video Output | 1 HD analog output |
| Physical Specification | |
| Dimensions | Ø 109.8 mm × 89.75 mm (Ø 4.32″ × 3.53″ ) |
| Warranty Information | |
| Warranty | 01 year warranty |

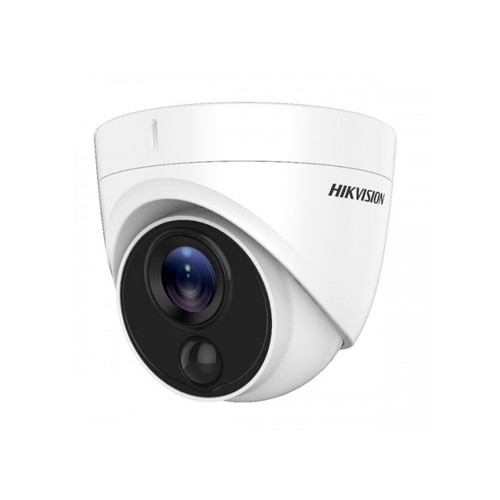

HikVision DS-2CE71D0T-PIRL 2MP PIR Fixed Turret Camera comes with 2MP PIR turret camera, PIR detection and strobe light alarm to warn off intruders in real time, EXIR 2.0: advanced infrared technology with 20 m IR distance, Water and dust resistant (IP67). This Fixed Turret Camera featured with 2.0 megapixel progressive scan CMOS Image Sensor, 1920 (H) × 1080 (V) Max. Resolution, Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Min. Illumination, PAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s Shutter Time. This Turret Camera has IR cut filter Day & Night, Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° Angle Adjustment and PAL/ NTSC Signal System. The HikVision DS-2CE71D0T-PIRL 2MP PIR Fixed Turret Camera
