| General | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing) |
| Pan/Tilt/Rotation | Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360° |
| Power | 12 VDC ± 25% |
| Power Consumption | Max. 2.5 W |
| Weight | Approx. 165 g (0.36 lb.) |
| Camera | |
| Electronic Shutter Speed | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Image Sensor | 2 MP CMOS |
| IR Distance | up to 20m |
| Minimum Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Lens | |
| Focal Length | 2.8 mm, 3.6 mm, 6 mm fixed focal lens |
| Mount Type | M12 |
| Video | |
| Day/Night | ICR |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Resolution | 1920 (H) × 1080 (V) |
| Video Output | witchable TVI/ AHD/ CVI/ CVBS |
| Physical Specification | |
| Dimensions | Φ 70 mm × 153.6 mm × 60.4 mm (Φ 2.76″ × 6.05″ × 2.38″) |
| Warranty Information | |
| Warranty | 01 year Warranty |

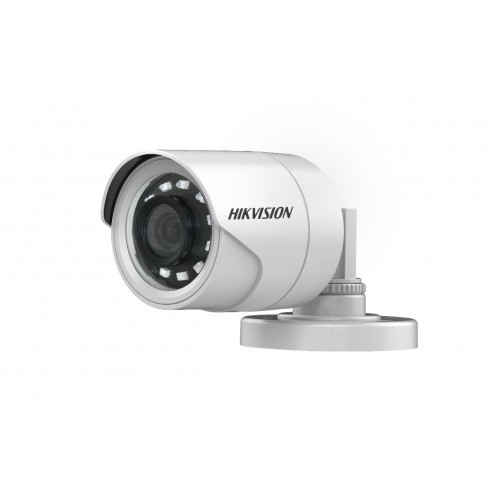

HikVision 2MP Fixed Mini Pellet Camera comes with 2 MP balun pellet camera, Binary videotape affair BNC & crooked- brace string harborage, Smart IR, up to 20 m IR distance, Water and dust resistant (IP66) and 4 in 1 (4 signals commutable TVI/ AHD/ CVI/ CVBS). This Mini Pellet Camera featured with 2 MP CMOS Image Sensor, 1920 (H) × 1080 (V) Max. Resolution,0.01 Lux@ (F1.2, AGC ON), 0 Lux with IR Min. Illumination. The Pellet Camera has Confidante1/25 s to1/50, 000 s NTSC1/30 s to1/50, 000 s Shutter Time option, ICR Day & Night mood, Pan 0 ° to 360 °, Cock 0 ° to 180 °, Rotate 0 ° to 360 ° Angle Adjustment, Plastic Body, Twisted- brace string transmission, BNC transmission and Confidante/ NTSC Signal System. This rearmost HikVision 2MP Fixed Mini Pellet Camera
