| General | |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power | Power Supply: 12 VDC ± 25%, PoE (802.3af Class3) Power Consumption: 12 VDC, 0.5A, Max. 6W PoE (802.3af, 37V To 57V), 0.2A To 0.1A, Max. 7.5W |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| IR Distance | Up To 25 M IR Range |
| Lens | Focal Length & FOV : 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100° Lens Mount : M12 Iris Type : Fixed Aperture : F1.6 |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
| Others | Max. Resolution : 2688 × 1520 Shutter Time : 1/3 s to 1/100,000 s Day & Night : IR cut filter Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Video | Main Stream : 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream : 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream : 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Video Compression : Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Video Bit Rate : 32 Kbps to 8 Mbps H.264 Type : Baseline Profile/Main Profile/High Profile H.265 Type : Main Profile Bit Rate Control : CBR/VBR Scalable Video Coding (SVC) : Yes Region Of Interest (ROI) : 1 fixed region for main stream and sub-stream |
| Physical Specification | |
| Weight | Approx. 570 g (1.3 lb.) |
| INTERFACE | Communication Interface: 1 RJ45 10M / 100M Ethernet Interface
On-Board Storage: Built-In Micro SD/SDHC/SDXC Slot, Up To 128 GB Reset Button: Yes |
| Dimension | Camera Dimension : Ø121.4 × 92.2 mm (Ø4.8″ × 3.7″) Package Dimension : 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Warranty Information | |
| Warranty | 1 years |

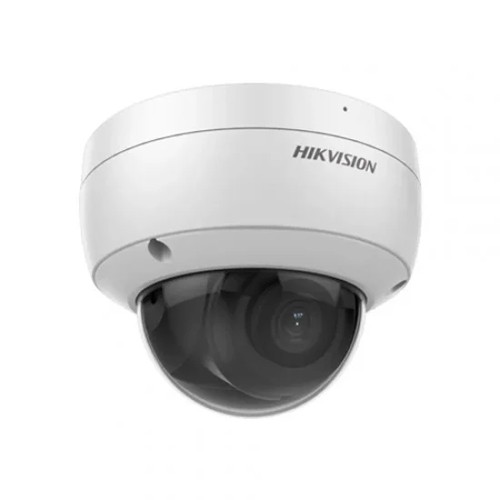

The Hikvision DS-2CD2143G2-IU is a premium 4 MP AcuSense fixed dome network camera designed for both professional and residential surveillance applications. Equipped with an integrated microphone, this camera captures high-quality audio along with sharp, detailed video, making it ideal for monitoring homes, offices, retail spaces, and other sensitive areas. Its AcuSense technology provides accurate human and vehicle detection, reducing false alarms and ensuring reliable security management. This camera supports advanced video compression, including H.265+ and H.264+, allowing efficient storage without compromising image quality. The built-in IR LEDs enable night vision, providing clear images even in low-light conditions. Its robust design features weatherproof and vandal-resistant housing, ensuring durability in both indoor and outdoor environments. The DS-2CD2143G2-IU is compatible with Hikvision’s range of NVRs and VMS software, allowing seamless integration into existing security systems. It supports PoE (Power over Ethernet), simplifying installation by reducing the need for additional power cables. Users can access live video and recordings via web interfaces or mobile apps, making monitoring convenient from anywhere. With flexible mounting options, IP67-rated weather resistance, and wide operating temperature support, this camera offers a balance of reliability, functionality, and ease of use. Whether you are setting up a new surveillance system or upgrading an existing one, the Hikvision DS-2CD2143G2-IU 4 MP AcuSense Built-In Mic Fixed Dome Network Camera delivers excellent performance, intuitive features, and long-term reliability for comprehensive security solutions. This camera is ideal for those seeking a high-quality, professional-grade network camera that combines superior image clarity, intelligent analytics, and audio monitoring in a single, compact design.
The Hikvision DS-2CD2143G2-IU dome camera delivers crystal-clear 4 MP video quality along with advanced AcuSense technology for precise human and vehicle detection. Its built-in microphone captures high-quality audio, making it ideal for enhanced surveillance in both indoor and outdoor environments. This camera ensures reliable performance, reduced false alarms, and excellent night vision capabilities.
4 MP High-Resolution Video for sharper, more detailed monitoring in any lighting.
AcuSense Technology minimizes false alarms by accurately detecting humans and vehicles.
Built-in microphone allows synchronized audio-video recording for better situational awareness.
IR Night Vision up to 30m ensures clear images even in complete darkness.
Strong Weather & Vandal Protection with IP67 and IK10 ratings for long-lasting durability.
Efficient H.265+ Compression reduces storage and bandwidth usage without quality loss.
PoE Support makes installation easy with a single cable for power and data.
Wide Dynamic Range (WDR) provides clear images in challenging lighting conditions.
Seamless Integration with Hikvision NVRs and management software.
Flexible Mounting Options for homes, offices, shops, and industrial sites.
To explore more options, you may also consider the Hikvision DS-2CD2043G2-IU 4MP IP Camera, which offers a powerful outdoor-focused alternative. You can browse our IP Camera category and discover more models from Hikvision. All these products are available at your trusted brand, Index IT.
