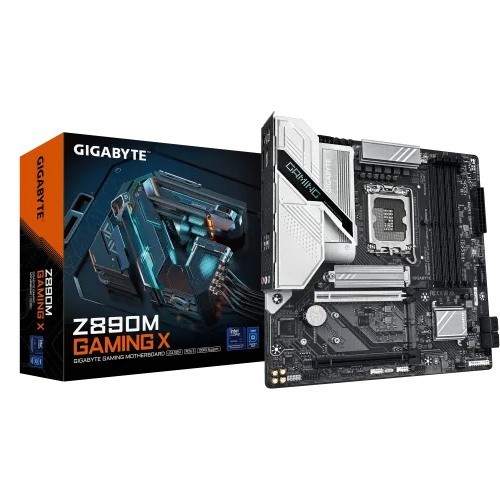

Name: Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard
Brand: GIGABYTE
Price: 32960.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard

-2 % In Stock

Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: Z890M GAMING X

Based on 1 reviews. - Write a review

32,960৳

33,500৳

Ex Tax: 32,960৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: Intel Core Ultra Processors
- Supported RAM: 4x DDR5, Max 256GB
- Graphics Output: 1 x HDMI v2.1
- Features: 3x M.2 slots, Realtek 2.5GbE LAN chip

View More Info

Specification

Physical Specification
Slots	4 x DIMM
Supported Memory	Support for DDR5 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module
Maximum Memory	up to 256 GB (64 GB single DIMM capacity) of system memory
Basic Information
Supported CPU	LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU
Chipset	Intel Z890 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Type	DDR5
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
M.2 Socket	CPU: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 2.1 version.
Connector & Ports
HDMI	1 x HDMI port
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Display Port (s)	2 x DisplayPort
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) - 4 x SATA 6Gb/s connectors
Audio	3 x audio jacks 1 x front panel audio header
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functionsof each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Smart Backup
Warranty Information
Warranty	3 Year

Description

Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard

The Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard is a high-performance, compact motherboard designed for gamers, streamers, and PC enthusiasts seeking next-generation Intel platform support. Powered by the Intel Z890 Express Chipset, it supports the latest Intel Core Ultra Processors on the LGA1851 socket, delivering excellent computing power, efficiency, and system stability for demanding workloads. Built in a Micro-ATX (24.4cm x 24.4cm) form factor, this motherboard fits easily into compact cases while still offering premium features. It supports DDR5 memory with four DIMM slots, allowing up to 256GB RAM and blazing-fast speeds up to 9066MHz (O.C.). With dual-channel architecture, XMP, ECC (non-ECC mode), non-ECC, and CUDIMM support, users get exceptional flexibility and future-ready performance. For expansion, the motherboard features a PCIe 5.0 x16 slot for modern graphics cards or NVMe SSDs, ensuring maximum bandwidth for gaming and creative tasks. Storage options include three M.2 slots, with one PCIe 5.0 x4 connector and two PCIe 4.0 slots, along with four SATA 6Gb/s ports supporting RAID 0/1/5/10 for both NVMe and SATA drives. Display output is highly versatile, offering 1× HDMI 2.1 and 2× DisplayPort 2.1, supporting up to 4K resolution for immersive visuals. Networking is powered by a Realtek 2.5GbE LAN, ensuring fast, stable, and low-latency connectivity. Enhanced with Realtek HD Audio, RGB headers, Q-Flash, Smart Backup, and GIGABYTE Control Center, this motherboard delivers a complete, reliable, and customizable PC-building experience, backed by a 3-year warranty.

Features Of Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard

Intel Core Ultra CPU Support: Built on the LGA1851 socket with Intel Z890 chipset, delivering next-gen processing power and improved efficiency for gaming and productivity systems.
High-Speed DDR5 Memory: Supports 4× DDR5 DIMMs up to 256GB, with overclocked speeds reaching 9066MHz (O.C.), dual-channel architecture, XMP, and CUDIMM compatibility for extreme performance.
PCIe 5.0 Expansion: Equipped with a PCIe 5.0 x16 slot, ensuring maximum bandwidth for modern GPUs or ultra-fast NVMe SSDs in compact Micro-ATX builds.
Advanced Storage Options: Features 3× M.2 slots (1× PCIe 5.0, 2× PCIe 4.0) and 4× SATA 6Gb/s ports with full RAID 0/1/5/10 support for flexible and high-speed storage setups.
Next-Gen Display Output: Includes HDMI 2.1 and 2× DisplayPort 2.1, supporting high-resolution 4K displays for smooth gaming, content creation, and multitasking.
Fast 2.5GbE Networking: Powered by a Realtek 2.5GbE LAN chip, delivering stable, low-latency wired internet performance ideal for online gaming and streaming.
Enhanced Control & Reliability: Comes with GIGABYTE Control Center, Q-Flash, RGB and ARGB headers, premium audio, and a 3-year manufacturing warranty for long-term reliability and customization.
