| Physical Specification | ||
| Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode<br> AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> Chipset:<br> - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for:<br> AMD Ryzen 9000 Series Processors/<br> AMD Ryzen 8000 Series Processors/<br> AMD Ryzen 7000 Series Processors | |
| Chipset | AMD X870 | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) /<br> 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.<br> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory<br> Dual channel memory architecture<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| Operating System | Support for Windows 11 64-bit | |
| Graphics | ||
| Graphics | ntegrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4 Controller:<br> - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz<br> * Support for DisplayPort 1.4 version and HDR.<br> Integrated Graphics Processor with AMD Radeon Graphics support:<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version, HDCP 2.3, and HDR.<br> ** Support for native HDMI 2.1 TMDS compatible ports.<br> - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz | |
| Input Devices | ||
| External I/O Ports | 1 x Clear CMOS button<br> 1 x Q-Flash Plus button<br> 1 x HDMI port<br> 4 x USB 2.0/1.1 ports<br> 4 x USB 3.2 Gen 1 ports<br> 2 x USB 3.2 Gen 2 Type-A ports (red)<br> 2 x USB4 USB Type-C ports (DisplayPort*)<br> 1 x RJ-45 port<br> 2 x antenna connectors (2T2R)<br> 2 x audio jacks<br> 1 x optical S/PDIF Out connector | |
| Connectivity | ||
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| USB | CPU+ASMedia USB4 controller:<br> - 2 x USB4 USB Type-C ports on the back panel<br> CPU+USB 3.2 Gen 1 Hub:<br> - 4 x USB 3.2 Gen 1 ports on the back panel<br> CPU+USB 2.0 Hub:<br> - 4 x USB 2.0/1.1 ports on the back panel<br> Chipset:<br> - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through<br> the internal USB header<br> - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> - 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Connector & Ports | ||
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used. | |
| Audio | Realtek ALC1220 CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 2 x 8-pin ATX 12V power connectors<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 4 x system fan headers<br> 2 x system fan/water cooling pump headers<br> 3 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 4 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 2x2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x noise detection header<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)<br> 1 x HDMI port (Note)<br> 1 x power button<br> 1 x reset button<br> 2 x temperature sensor headers<br> 1 x reset jumper<br> 1 x Clear CMOS jumper | |
| Network & Connectivity | ||
| WiFi | Realtek Wi-Fi 7 RTL8922AE<br> - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| Network & Wireless Connectivity | ||
| Bluetooth | - BLUETOOTH 5.4<br> - Support for 11be 160MHz wireless standard | |
| Physical Specification | ||
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Others Information | ||
| Special Features | Support for GIGABYTE Control Center (GCC)<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support Smart Backup | |
| Warranty Information | ||
| Warranty | 3-Years | |

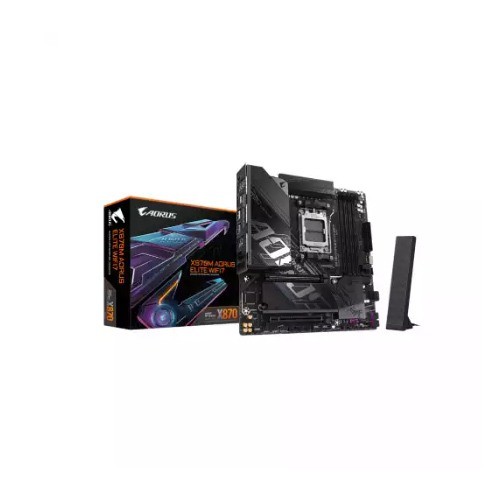

The Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard is a high-performance motherboard designed for gamers, content creators, and PC enthusiasts seeking advanced features and reliable performance. Built on the AMD X870 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series processors, delivering exceptional power and efficiency for demanding tasks, gaming, and multitasking. Its AM5 socket ensures compatibility with the latest AMD processor generation, offering a future-ready platform for high-end builds. This motherboard features four DDR5 DIMM slots, supporting memory speeds up to 8200 MHz (OC) and a maximum capacity of 256 GB. Dual-channel architecture and support for AMD EXPO and XMP memory profiles allow seamless overclocking and superior memory performance. Users can enjoy smooth multitasking, faster rendering, and improved system responsiveness with ultra-fast DDR5 memory. For storage, the X870M AORUS ELITE provides three CPU-integrated M.2 slots supporting PCIe 5.0/4.0 SSDs and an additional chipset-controlled M.2 slot for PCIe 4.0 SSDs. It also includes four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support, offering flexible storage configurations and enhanced data protection. Graphics are supported via integrated AMD Radeon graphics with HDMI 2.1 and DisplayPort output through USB4 Type-C, delivering high-resolution visuals up to 4K UHD. Networking is advanced with Realtek 2.5GbE LAN and Wi-Fi 7 with Bluetooth 5.4, ensuring high-speed wired and wireless connections. Additional features include the Realtek ALC1220 HD audio codec for immersive sound, multiple PCIe slots for expansion, and comprehensive internal I/O headers for fans, RGB lighting, and USB devices. Software support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, and Smart Backup ensures easy system monitoring, updates, and data management. Compact Micro ATX form factor (24.4cm x 24.4cm) and a 3-year warranty make this motherboard a versatile, durable, and reliable choice for high-performance AMD systems.
The latest price of Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard in Bangladesh is 39,200৳ You can buy the Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard at best price from our Website or visit any of our showrooms.
