| Physical Specification | ||
| Slots | 4 DIMMs | |
| Supported Memory | Support for DDR5 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) /<br> 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules | |
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for : AMD Ryzen 9000, 8000 & 7000 Series Processors | |
| Chipset | AMD X870E | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek ALC1220 CODEC<br> * The back panel line out jack supports DSD audio.<br> Support for DTS:X Ultra<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.<br> Support for S/PDIF Out | |
| Others | Support for GIGABYTE Control Center (GCC)<br> * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode<br> * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br> * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors.<br> The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.<br> AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> Chipset:<br> - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)<br> - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:<br> - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz<br> * Support for DisplayPort 1.4 version and HDR | |
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices<br> * RAID 5 is only available on AMD Ryzen 9000 Series Processors.<br> RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| USB (s) | CPU+ASMedia USB4 controller:<br> - 2 x USB4 USB Type-C ports on the back panel<br> CPU:<br> - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub:<br> - 4 x USB 3.2 Gen 1 ports on the back panel<br> Chipset:<br> - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header<br> - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> - 4 x USB 3.2 Gen 1 ports available through the internal USB headers<br> - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
| LAN Port (s) | Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Qualcomm Wi-Fi 7 QCNCM865<br> - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands<br> - BLUETOOTH 5.3<br> - Support for 11be 320MHz wireless standard<br> (Actual data rate may vary depending on environment and equipment.)<br> * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)<br> ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used.<br> 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs<br> 4 x SATA 6Gb/s connectors | |
| Audio | 2 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 2 x 8-pin ATX 12V power connectors<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 4 x system fan headers<br> 2 x system fan/water cooling pump headers<br> 4 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 4 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support<br> 2 x USB 3.2 Gen 1 headers<br> 2 x USB 2.0/1.1 headers<br> 1 x noise detection header<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)<br> 1 x HDMI port (Note)<br> 1 x power button<br> 1 x reset button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> 2 x temperature sensor headers<br> Voltage Measurement Points<br> (Note) Actual support may vary by CPU.<br> Back Panel Connectors<br> 1 x Q-Flash Plus button<br> 1 x Clear CMOS button<br> 1 x HDMI port (Note)<br> 2 x USB4 USB Type-C ports (DisplayPorts (Note))<br> 4 x USB 3.2 Gen 2 Type-A ports (red)<br> 4 x USB 3.2 Gen 1 ports<br> 2 x USB 2.0/1.1 ports<br> 1 x RJ-45 port<br> 2 x antenna connectors (2T2R)<br> 2 x audio jacks<br> 1 x optical S/PDIF Out connector<br> (Note) Actual support may vary by CPU. | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others Information | ||
| Bundled Software | Norton® Internet Security (OEM version)<br> LAN bandwidth management software | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

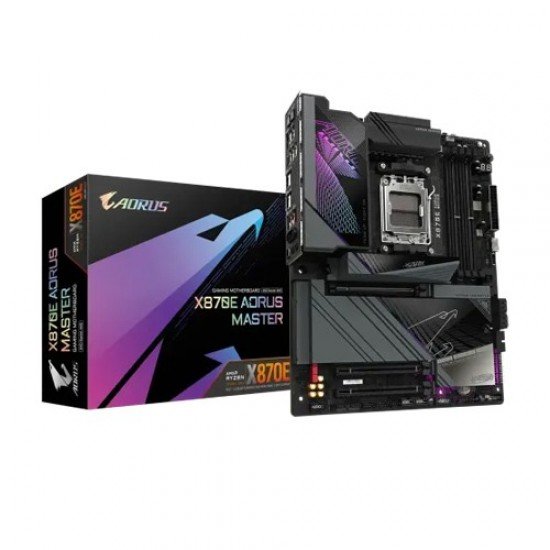

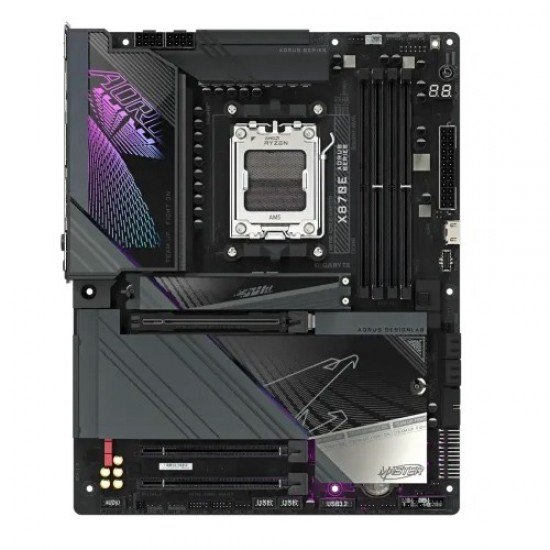

The GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard is a high-end, enthusiast-grade motherboard designed for gamers, content creators, and power users who demand cutting-edge performance and maximum expandability. Built on the AMD X870E chipset and supporting AMD Ryzen 7000, 8000, and 9000 Series processors via the AM5 socket, this motherboard delivers exceptional processing power, future-proofing, and stability for intensive computing tasks. Its ATX form factor ensures ample space for advanced cooling solutions, multiple expansion cards, and robust connectivity options. Equipped with four DDR5 DIMM slots, the X870E AORUS MASTER supports memory speeds up to 8600 MHz (OC) and a maximum capacity of 256 GB, enabling seamless multitasking, high-speed data processing, and enhanced gaming performance. The motherboard also supports AMD EXPO and XMP memory profiles for effortless overclocking and optimal system performance. For graphics enthusiasts, it features a PCIe 5.0 x16 slot integrated into the CPU, providing ultra-fast data transfer speeds and support for the latest graphics cards, along with additional PCIe slots from the chipset for extra expansion. The storage options are extensive, including four M.2 slots (CPU and chipset-integrated) and four SATA 6Gb/s connectors, supporting RAID 0, 1, 5, and 10 configurations for enhanced data security and performance. The motherboard also includes advanced connectivity features such as dual USB4 Type-C ports, multiple USB 3.2 Gen 2 and Gen 1 ports, HDMI 2.1, DisplayPort 1.4, and Realtek 5GbE LAN. For wireless connectivity, it comes with a Qualcomm Wi-Fi 7 module and Bluetooth 5.3, ensuring fast and reliable networking.
The latest price of GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard in Bangladesh is 75,500৳ You can buy the GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard at best price from our Website or visit any of our showrooms.
