| Physical Specification | ||
| Slots | 4 DIMMs | |
| Supported Memory | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) /<br> 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules<br> 4 x DDR5 DIMM sockets<br> Dual channel memory architecture<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules<br> (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for:<br> AMD Ryzen 9000, 8000, 7000 Series Processors | |
| Chipset | AMD X870 | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek ALC1220 CODEC<br> * The back panel line out jack supports DSD audio.<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.<br> Support for S/PDIF Out | |
| Type | DDR5 | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode<br> * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.<br> When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.<br> AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)<br> Chipset:<br> - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)<br> - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor:<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3.<br> ** Support native HDMI 2.1 TMDS compatible ports. | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices<br> * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.<br> RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| USB (s) | CPU+ASMedia USB4® controller:<br> - 2 x USB4® USB Type-C® ports on the back panel<br> CPU:<br> - 1 x USB 3.2 Gen 1 port on the back panel<br> Chipset:<br> - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header<br> - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> - 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)<br> - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)<br> - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands<br> - BLUETOOTH 5.4<br> - Support for 11be 160MHz wireless standard<br> Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)<br> - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands<br> - BLUETOOTH 5.4<br> - Support for 11be 160MHz wireless standard | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br> AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:<br> AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.<br> 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs<br> 4 x SATA 6Gb/s connectors | |
| Audio | Realtek ALC1220 CODEC<br> * The back panel line out jack supports DSD audio.<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 2 x 8-pin ATX 12V power connectors<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 3 x system fan headers<br> 1 x system fan/water cooling pump header<br> 3 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 4 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support<br> 2 x USB 3.2 Gen 1 headers<br> 2 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)<br> 1 x HDMI port (Note)<br> 1 x power button<br> 1 x reset button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> Back Panel Connectors<br> 1 x Q-Flash Plus button<br> 4 x USB 2.0/1.1 ports<br> 4 x USB 3.2 Gen 1 ports<br> 1 x HDMI port (Note)<br> 2 x USB4® USB Type-C® ports (DisplayPort (Note))<br> 1 x RJ-45 port<br> 2 x USB 3.2 Gen 2 Type-A ports (red)<br> 2 x antenna connectors (2T2R)<br> 2 x audio jacks<br> 1 x optical S/PDIF Out connector | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> LAN bandwidth management software | |
| Special Features | Support for GIGABYTE Control Center (GCC)<br> * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support Smart Backup | |
| Warranty Information | ||
| Warranty | 3 Years | |

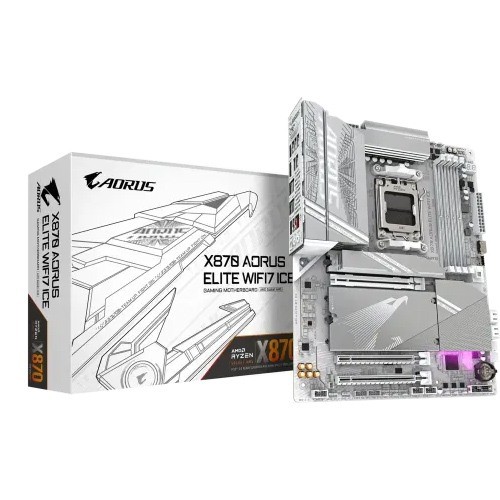

The GIGABYTE X870 AORUS ELITE WIFI7 ICE DDR5 is a cutting-edge AM5 motherboard built for high-performance gaming, productivity, and content creation. Powered by the advanced AMD X870 chipset, it supports the latest Ryzen 9000, 8000, and 7000 Series processors, delivering superior power efficiency and next-generation computing performance. Its durable ICE-themed design and premium components make it an ideal choice for building a fast and future-ready PC. Equipped with four DDR5 DIMM slots, the motherboard supports up to 256GB of ultra-fast memory with speeds reaching 8000 MHz (OC). With support for AMD EXPO and Intel XMP profiles, users can easily achieve stable and optimized overclocking for demanding workloads. The board features a strong expansion setup, including PCIe 5.0 x16 for graphics and multiple PCIe 4.0/5.0 lanes for storage. For storage, the X870 AORUS ELITE includes four M.2 slots supporting PCIe 4.0 and PCIe 5.0 SSDs, along with RAID 0/1/5/10 support on NVMe devices. Additional four SATA 6Gb/s ports ensure broad compatibility for traditional SSDs and HDDs. Connectivity is one of the main highlights, offering dual USB4 Type-C, USB 3.2 Gen 2x2, multiple USB 3.2 Gen 1 ports, and USB 2.0 support. For display, it includes a 4K60 HDMI 2.1 port. The board also features Realtek 2.5GbE LAN and MediaTek Wi-Fi 7, providing ultra-fast wired and wireless networking for smooth online gaming and streaming. The premium Realtek ALC1220 audio codec delivers rich 7.1-channel HD audio with DSD support. Cooling support includes CPU fan headers, pump headers, and multiple RGB/ARGB headers for custom lighting. With Q-Flash Plus, Smart Backup, and GIGABYTE Control Center compatibility, the X870 AORUS ELITE WIFI7 ICE is a powerful, reliable, and future-proof AM5 motherboard.
The latest price of GIGABYTE X870 AORUS ELITE WIFI7 ICE DDR5 AMD AM5 ATX Motherboard in Bangladesh is 45,500৳ You can buy the GIGABYTE X870 AORUS ELITE WIFI7 ICE DDR5 AMD AM5 ATX Motherboard at best price from our Website or visit any of our showrooms.
