Name: GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard
Brand: Gigabyte
Price: 8900.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard

-4 % In Stock

GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: GA-H81M-H

Based on 1 reviews. - Write a review

8,900৳

9,300৳

Ex Tax: 8,900৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: 4th Generation Intel Core processors (LGA1150)
- Supported RAM: 2 x 1.5V DDR3 DIMM up to 16 GB 1600MHz
- Graphics Output: 1 x D-Sub, 1 x HDMI
- Features: LAN with high ESD Protection

View More Info

Specification

Physical Specification
Slots	2 x 1.5V DIMM sockets
Supported Memory	Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	16 GB
Basic Information
Supported CPU	Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package L3 cache varies with CPU
Chipset	Intel H81 Express Chipset
BIOS	1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 22.6cm x 17cm
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Type	DDR3
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots
Graphics
Graphics	Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz * Support for HDMI 1.4a version.
Max Shared Memory	1 GB
Connector & Ports
HDMI	1 x HDMI

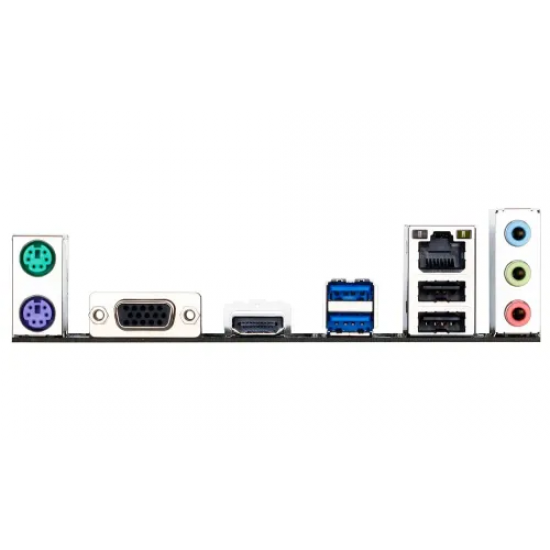

USB (s)	Chipset: 2 x USB 3.0/2.0 ports on the back panel 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage	Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) 2 x SATA 3Gb/s connectors (SATA2 2/3)
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
D-Sub (s)	1 x D-Sub
Others Information
Special Features	Support for Q-Flash Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Smart TimeLock Smart Recovery 2 Support for ON/OFF Charge
Warranty Information
Warranty	3 Years

Description

GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard

The GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard is a reliable and budget-friendly solution designed for everyday computing, office productivity, and entry-level home PC builds. Powered by the Intel H81 Express chipset and featuring the LGA1150 socket, this motherboard supports 4th Generation Intel Core i7, i5, i3, Pentium, and Celeron processors, delivering stable and efficient performance for daily tasks. L3 cache support varies by CPU, ensuring balanced processing power based on the installed processor. Built in a compact Micro ATX form factor (22.6cm x 17cm), the GA-H81M-H fits perfectly into small to mid-size PC cases while still offering essential expansion capabilities. It includes one PCI Express x16 slot for a dedicated graphics card and two PCI Express x1 slots for additional expansion cards, providing flexibility for future upgrades. Memory support consists of two DDR3 DIMM slots with dual-channel architecture, supporting DDR3 1600/1333 MHz memory modules and a maximum capacity of 16GB. This configuration is ideal for smooth multitasking and dependable system responsiveness. For display output, the motherboard offers integrated Intel HD Graphics support with HDMI and D-Sub ports. HDMI supports resolutions up to 4096 x 2160 @ 24Hz, while D-Sub supports up to 1920 x 1200, making it suitable for both modern and legacy displays. Storage connectivity includes four SATA ports—two SATA 6Gb/s and two SATA 3Gb/s—allowing flexible SSD and HDD configurations. Additional features include USB 3.0 and USB 2.0 ports, Realtek GbE LAN for stable wired networking, and Realtek ALC887 7.1-channel HD audio for immersive sound. With GIGABYTE utilities like Q-Flash, APP Center, and EasyTune, system management becomes simple and user-friendly. Backed by a 3-year manufacturing warranty, the GA-H81M-H is a dependable choice for cost-effective PC builds.

Features Of GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard

4th Gen Intel CPU Support (LGA1150): Compatible with Intel Core i7, i5, i3, Pentium, and Celeron processors, ensuring reliable performance for office work and home computing.
DDR3 Memory Support up to 16GB: Features 2 x 1.5V DDR3 DIMM slots with dual-channel architecture, supporting DDR3 1600/1333 MHz for stable multitasking.
Integrated Graphics with HDMI & D-Sub: Built-in Intel HD Graphics support allows connection to modern and legacy displays, with HDMI offering up to 4K resolution at 24Hz.
Flexible Expansion Options: Equipped with 1 x PCIe x16 slot for a graphics card and 2 x PCIe x1 slots for additional expansion cards.
High-Speed Storage Connectivity: Includes 2 x SATA 6Gb/s and 2 x SATA 3Gb/s ports, enabling fast and flexible SSD and HDD configurations.
Reliable LAN with High ESD Protection: Realtek Gigabit LAN delivers stable wired networking with enhanced electrical protection for durability.
GIGABYTE Exclusive Utilities: Features Q-Flash, APP Center, EasyTune, and Xpress Install for easy BIOS updates, system tuning, and simplified setup
