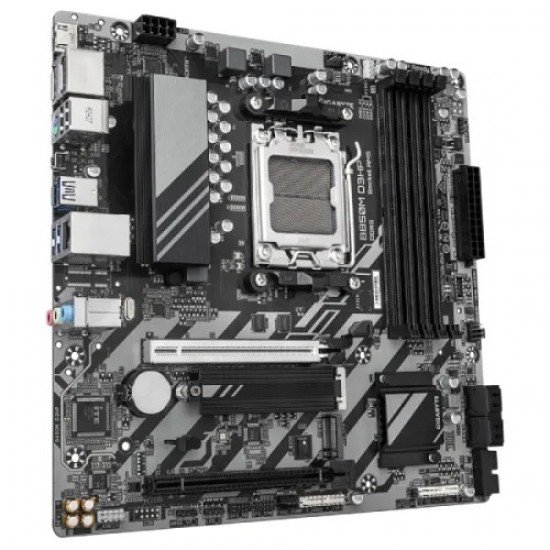

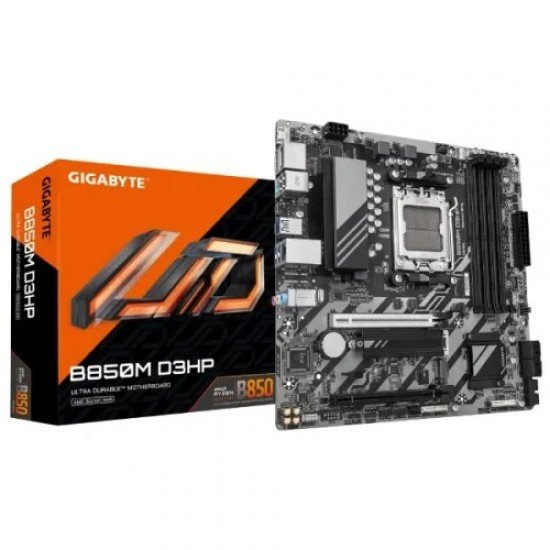

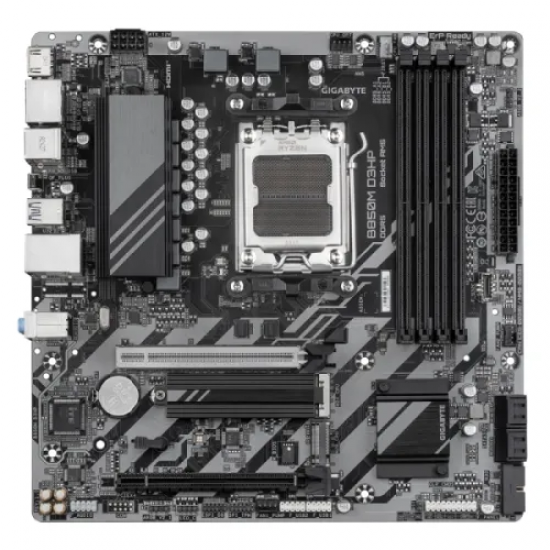

Name: GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard
Brand: GIGABYTE
Price: 21100.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard

-4 % In Stock

GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: B850M D3HP

Based on 1 reviews. - Write a review

21,100৳

22,000৳

Ex Tax: 21,100৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series
- Supported RAM: 4x DDR5
- Graphics Output: 2x Display Port
- Features: 2x M.2 Slot

View More Info

Specification

Physical Specification
Slots	4 DIMM
Supported Memory	Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Maximum Memory	Up to 256 GB (64 GB single DIMM capacity) of system memory
Basic Information
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors AMD Ryzen 8000 Series Processors AMD Ryzen 7000 Series Processors
Chipset	AMD B650
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Type	DDR5
Expansion Slots
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Graphics
Graphics	Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Connectivity
Audio Jack	3 x audio jacks
Connector & Ports
HDMI	1x HDMI
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Display Port (s)	2 x DisplayPorts
USB (s)	CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 1 port on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors

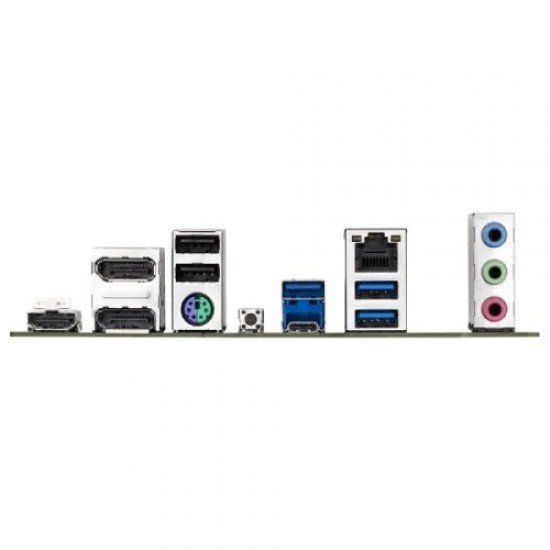

Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 1 x USB Type-C® port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others Information
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Warranty	3 Years

Description

GIGABYTE B850M D3HP AM5 DDR5 Motherboard – Reliable Performance for Modern PC Builds

Building a new AMD-powered desktop requires a motherboard that balances performance, stability, and future-ready features. The GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard is designed to provide exactly that. Whether you are assembling a gaming PC, productivity workstation, content creation system, or a versatile home computer, this motherboard offers a strong foundation for long-term performance and upgrade flexibility. Powered by the latest AMD B850 chipset and AM5 socket platform, the motherboard supports advanced AMD Ryzen processors and next-generation DDR5 memory technology. This combination enables faster data processing, improved system responsiveness, and enhanced multitasking capabilities compared to older platforms. Its Micro ATX design makes it suitable for compact and mid-sized PC cases while still offering essential expansion options for graphics cards, storage devices, and peripherals. The GIGABYTE B850M D3HP also focuses on durability and reliability, ensuring stable operation during intensive workloads and extended gaming sessions. With support for modern storage technologies, high-speed connectivity, and future hardware upgrades, users can build a system that remains relevant for years. If you are searching for a motherboard that delivers excellent value without compromising on essential features, this model stands out as a practical choice for both enthusiasts and everyday users.

Why the GIGABYTE B850M D3HP is a Smart Choice for Your Next AMD PC Build

Future-Ready AMD AM5 Platform: Designed to support the latest AMD Ryzen processors, allowing users to enjoy cutting-edge performance and easier upgrade paths without replacing the entire system.
DDR5 Memory Support: Enables faster memory speeds, improved bandwidth, and smoother multitasking performance, helping applications load quicker and operate more efficiently.
Compact Micro ATX Design: Perfect for users who want a powerful system while maintaining a space-saving PC build. It fits a wide range of cases without sacrificing essential functionality.
Enhanced Productivity: Ideal for professionals handling multiple applications simultaneously, offering the stability and responsiveness needed for demanding workloads.
Gaming-Oriented Performance: Supports modern graphics hardware and high-speed memory, helping gamers achieve smoother gameplay and better overall system responsiveness.
Fast Storage Connectivity: M.2 and SATA support allows users to install high-performance SSDs and larger storage drives, reducing load times and improving system efficiency.
Reliable System Stability: Engineered with quality components and advanced power delivery solutions that help maintain consistent performance under heavy workloads.
Flexible Expansion Options: Provides room for future upgrades such as additional storage devices, expansion cards, and other essential hardware components.
High-Speed Connectivity: Modern networking and USB interfaces ensure quick file transfers, seamless online experiences, and improved peripheral compatibility.
Excellent Value for Money: Combines modern platform support, performance-focused features, and long-term reliability, making it a cost-effective investment for a wide range of users.

What Buyers Say About the GIGABYTE B850M D3HP Motherboard

Users appreciate the GIGABYTE B850M D3HP for its dependable performance, straightforward installation process, and compatibility with the latest AMD Ryzen processors. Many builders highlight its DDR5 support and upgrade-friendly AM5 platform as major advantages for creating future-proof systems. Gamers often praise its stable operation during extended gaming sessions, while professionals value its ability to handle multitasking and productivity workloads efficiently.

The motherboard also receives positive feedback for its compact Micro ATX layout, which makes it suitable for smaller PC cases without limiting essential features. Overall, buyers frequently rate it highly for delivering strong performance, modern connectivity, and excellent value within its category.

Upgrade Your System with Confidence from Index IT

If you are planning to build a reliable AMD-powered desktop, the GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard is an excellent foundation for your setup. Combining modern DDR5 support, AM5 compatibility, and dependable performance, it is built to meet the needs of gamers, professionals, and everyday users alike.

Order today from Index IT and explore more options from our extensive Motherboard Collection, AMD Components, and PC Build Accessories categories. Choosing the right motherboard today can help ensure a smoother, faster, and more upgrade-friendly computing experience for years to come.
