Name: GIGABYTE B760M H DDR4 mATX Motherboard
Brand: Gigabyte
Price: 14100.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

-3 % In Stock

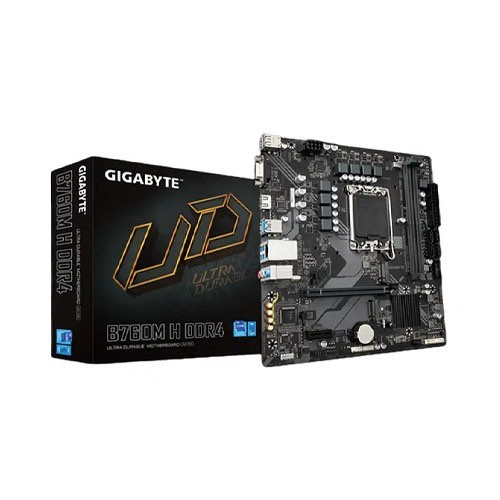

GIGABYTE B760M H DDR4 mATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B760M H DDR4

Based on 1 reviews. - Write a review

14,100৳

14,500৳

Ex Tax: 14,100৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: 14th/12th/13th Gen Intel Processors (LGA1700)
- Supported RAM: 2 x DDR4, Max 64GB 3200 Mhz
- Graphics Output: 1x HDMI, 1 x D-Sub
- Features: Realtek GbE LAN chip

View More Info

Specification

Physical Specification
Slots	2
Supported Memory	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	up to 64GB (32 GB single DIMM capacity) of system memory
Basic Information
Supported CPU	LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 23.0cm x 21.5cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Type	DDR4
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.
Connector & Ports
HDMI	1x HDMI
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB (s)	Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
D-Sub (s)	1x D-Sub
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash
Warranty Information
Warranty	3 years

Description

GIGABYTE B760M H DDR4 mATX Motherboard

The GIGABYTE B760M H DDR4 Micro ATX Motherboard is a compact yet high-performance platform designed for gamers, professionals, and everyday PC users seeking reliable computing with the latest Intel technologies. Built on the Intel B760 Express chipset and featuring an LGA1700 socket, this motherboard supports 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors, delivering versatile performance for gaming, productivity, and multimedia applications. Designed in a Micro ATX form factor (23.0cm x 21.5cm), the B760M H DDR4 fits easily into smaller cases without compromising on expandability. Memory support includes 2 DDR4 DIMM slots, compatible with speeds from 2133 MT/s up to 3200 MT/s and a maximum capacity of 64GB, supporting dual-channel architecture, XMP profiles, and both ECC and non-ECC un-buffered memory modules for optimized performance. For graphics, the motherboard includes integrated Intel HD Graphics support with HDMI and D-Sub outputs, supporting resolutions up to 4K (4096x2160@60Hz) and 1920x1200@60Hz, respectively. Storage options are flexible, offering two M.2 connectors for ultra-fast NVMe SSDs and four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support for data redundancy and speed. Networking is powered by a Realtek GbE LAN chip, ensuring stable and fast wired connections, while audio is handled by the Realtek HD Audio CODEC, supporting 2/4/5.1/7.1 channels and S/PDIF Out for immersive sound. Expansion includes a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot for graphics cards or additional expansion devices. Additional features include support for GIGABYTE Control Center (GCC), Q-Flash for easy BIOS updates, RGB LED headers, and TPM header support for secure hardware encryption. With USB 3.2 Gen 1, USB 2.0 ports, and bundled Norton Internet Security, this motherboard combines performance, connectivity, and security in a compact Micro ATX design. Backed by a 3-year manufacturing warranty, the GIGABYTE B760M H DDR4 is a reliable, feature-rich, and future-ready choice for modern PC builds.

Features Of GIGABYTE B760M H DDR4 mATX Motherboard

Supported CPU: Compatible with 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors via the LGA1700 socket, delivering versatile performance for gaming, content creation, and everyday computing.
High-Performance Memory: Equipped with 2 DDR4 DIMM slots, supporting dual-channel memory up to 64GB and speeds up to 3200 MT/s, including ECC and non-ECC un-buffered modules, and full XMP profile support for optimized system performance.
Advanced Graphics Support: Integrated Intel HD Graphics with HDMI (4K 60Hz) and D-Sub (1920x1200 60Hz) outputs, providing crisp visuals for gaming, multimedia, and productivity applications without the need for a dedicated GPU.
Storage Flexibility: Includes 2 M.2 connectors for high-speed NVMe SSDs and 4 SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10, enabling both speed and data redundancy for reliable storage configurations.
Robust Networking: Features a Realtek GbE LAN chip (1 Gbps) for stable, high-speed wired connections, ensuring lag-free online gaming and smooth data transfer.
Enhanced Audio: Realtek HD Audio CODEC supports 2/4/5.1/7.1 channels with S/PDIF Out, delivering immersive and high-quality sound for gaming and media.
Additional Features & Reliability: Supports GIGABYTE Control Center (GCC), Q-Flash BIOS updates, RGB LED headers, TPM support for hardware security, and bundled Norton Internet Security. Backed by a 3-year warranty, this motherboard ensures future-ready, reliable performance.
