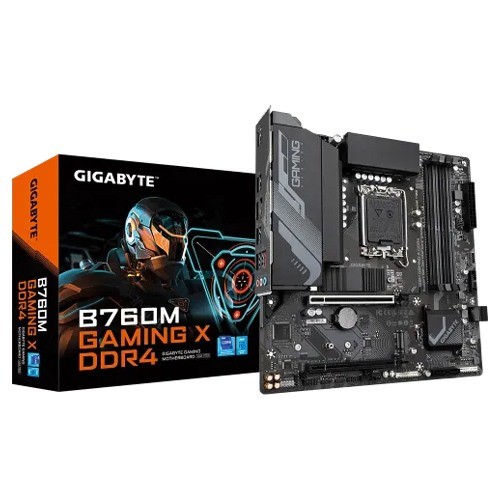

Name: GIGABYTE B760M GAMING X DDR4 mATX Motherboard
Brand: Gigabyte
Price: 20200.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

GIGABYTE B760M GAMING X DDR4 mATX Motherboard

-4 % In Stock

GIGABYTE B760M GAMING X DDR4 mATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B760M GAMING X
MPN: smart

Based on 1 reviews. - Write a review

20,200৳

21,000৳

Ex Tax: 20,200৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 4x DDR4, Max 128GB 5333(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: Realtek 2.5GbE LAN chip

View More Info

Specification

Physical Specification
Slots	4
Supported Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128GB
Basic Information
Supported CPU	LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Type	DDR4
Expansion Slots
PCI	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Connector & Ports
HDMI	1x HDMI
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Display Port (s)	1x DisplayPort
USB (s)	1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port
Supported Storage	1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
Audio	1 x front panel audio header 3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others Information
Special Features	2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Warranty	3 years

Description

GIGABYTE B760M GAMING X DDR4 mATX Motherboard

The GIGABYTE B760M GAMING X DDR4 Micro ATX Motherboard is a compact yet powerful platform designed for gamers, content creators, and everyday PC users seeking high-performance computing in a small form factor. Built on the Intel B760 Express chipset and featuring the LGA1700 socket, this motherboard supports 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors, providing versatile performance for gaming, productivity, and multimedia tasks. Designed in a Micro ATX form factor (24.4cm x 24.4cm), the B760M GAMING X fits easily into compact cases without sacrificing expandability. It features a PCIe 4.0 x16 slot for modern graphics cards or NVMe SSDs, plus two PCIe 3.0 x1 slots for additional expansion cards. Memory support is extensive with four DDR4 DIMM slots, supporting speeds up to 5333(O.C.) MT/s and a maximum capacity of 128GB. Dual-channel memory architecture and Intel XMP support allow users to optimize memory performance for multitasking and high-speed applications. For storage, the motherboard offers two M.2 connectors for ultra-fast NVMe SSDs and four SATA 6Gb/s ports, with RAID 0, 1, 5, and 10 support, ensuring both flexibility and reliability in storage configurations. Integrated graphics support includes HDMI, DisplayPort, and D-Sub outputs, delivering crisp visuals and up to 4K resolution with Intel HD Graphics. Networking and connectivity are robust, featuring Realtek 2.5GbE LAN and support for Thunderbolt add-in cards, while USB ports include multiple USB 3.2 Gen 1 and USB Type-C connections. Audio is powered by a Realtek High Definition Audio codec with 7.1-channel support and S/PDIF Out, delivering immersive sound for gaming and media. Additional features include RGB and addressable LED headers, GIGABYTE Control Center (GCC) support, and Q-Flash Plus for easy BIOS updates. With a 3-year manufacturing warranty, the GIGABYTE B760M GAMING X DDR4 Micro ATX Motherboard is a reliable, feature-rich, and future-ready choice for modern PC builds.

Features Of GIGABYTE B760M GAMING X DDR4 Micro ATX Motherboard

Supported CPU: Compatible with 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors via the LGA1700 socket, ensuring versatile performance for gaming, office work, and content creation.
Memory Support: Equipped with 4 DDR4 DIMM slots, supporting up to 128GB of system memory and speeds up to 5333(O.C.) MT/s. Dual-channel architecture and Intel XMP support optimize memory performance for multitasking and heavy workloads.
Graphics Output: Integrated Intel HD Graphics support with 1x HDMI port (4K@60Hz) and 1x DisplayPort (4K@60Hz), offering high-quality visuals without the need for a dedicated GPU.
Storage Options: Two M.2 connectors supporting PCIe 4.0 NVMe SSDs and four SATA 6Gb/s ports, with RAID 0, 1, 5, and 10 support, allowing flexible and high-speed storage configurations.
Connectivity: Features a Realtek 2.5GbE LAN chip for fast wired networking and multiple USB ports, including USB Type-C with USB 3.2 Gen 2 support for modern peripherals and high-speed data transfer.
Audio & Multimedia: Powered by a Realtek High Definition Audio codec, supporting 7.1-channel audio and S/PDIF Out for immersive sound during gaming or media playback.
Special Features: Supports RGB and addressable LED headers, GIGABYTE Control Center (GCC), Q-Flash and Q-Flash Plus for easy BIOS updates, and comes with a 3-year warranty ensuring reliability and long-term performance.
