| Supported CPU |
LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core,
Pentium Gold and Celeron Processors
L3 cache varies with the CPU |
| Chipset |
Intel B760 Express Chipset |
| BIOS |
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor |
Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio |
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out |
| Expansion Slots |
| PCI |
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| M.2 Socket |
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors |
| Memory |
| Type |
DDR4 |
| Slots |
2 |
| Supported Memory |
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory |
64GB |
| Graphics |
| Graphics |
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| Connector & Ports |
| HDMI |
1x HDMI |
| Display Port (s) |
1x DisplayPort |
| USB (s) |
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) |
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
1 x RJ-45 port |
| Supported Storage |
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio |
1 x front panel audio header
3 x audio jacks |
| Internal I/O Ports |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others |
| Special Features |
2 x addressable LED strip headers
2 x RGB LED strip headers
iTE I/O Controller Chip
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus |
| Warranty Information |
| Manufacturing Warranty |
3 years |

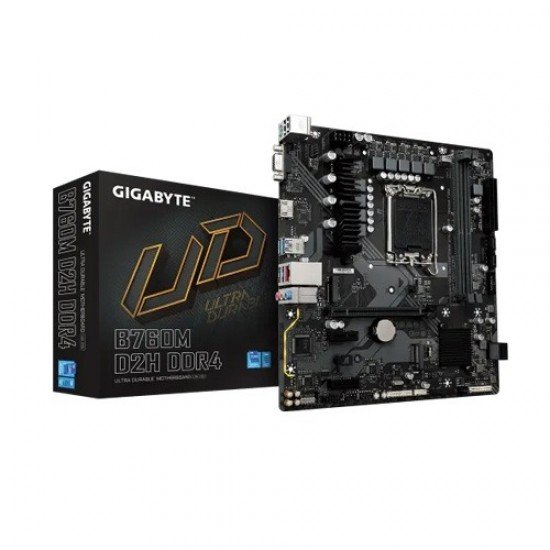

GIGABYTE B760M D2H DDR4 mATX Motherboard
GIGABYTE B760M D2H DDR4 mATX Motherboard stands as a powerful and versatile foundation for your computing needs, combining advanced technology with a compact form factor. Designed for Micro ATX (mATX) cases, this motherboard strikes a balance between space efficiency and performance, making it an ideal choice for those seeking a robust system without sacrificing desktop real estate. At the heart of the B760M D2H is its support for DDR4 memory, offering a significant boost in data transfer rates and overall system responsiveness. This ensures a seamless multitasking experience and enhances the motherboard's capability to handle resource-intensive applications. Whether you're a gamer, content creator, or professional seeking reliability, the DDR4 support contributes to the motherboard's ability to keep pace with modern computing demands. The motherboard features an array of expansion slots and ports to accommodate various components, enabling you to build a customized system tailored to your specific requirements. With PCIe slots, USB ports, and SATA connectors, the B760M D2H ensures compatibility with a wide range of peripherals, storage devices, and expansion cards. This flexibility makes it suitable for a diverse range of computing tasks, from gaming setups to content creation workstations. Equipped with GIGABYTE's signature Ultra Durable components, the B760M D2H prioritizes stability and longevity. High-quality materials and rigorous testing contribute to the motherboard's durability, providing a reliable foundation for your system. Additionally, the motherboard incorporates advanced cooling solutions to maintain optimal temperatures during extended usage, promoting system longevity and performance efficiency. The B760M D2H also integrates modern connectivity options, including high-speed USB ports and HDMI outputs, ensuring compatibility with the latest peripherals and display technologies. This attention to modern standards showcases GIGABYTE's commitment to staying at the forefront of technological advancements. In conclusion, the GIGABYTE B760M D2H DDR4 mATX Motherboard is a compact powerhouse, combining cutting-edge technology, reliability, and versatility. Whether you're a casual user or a demanding enthusiast, this motherboard offers a solid foundation for building a high-performance and efficient computing system.
Advanced Key Features of GIGABYTE B760M D2H Motherboard
The GIGABYTE B760M D2H DDR4 mATX Motherboard is built to provide reliable performance, efficient power delivery, and essential features for Intel-based PC builds. It’s a versatile choice for users seeking a balance of performance, expandability, and value in a compact Micro ATX form factor.
Key Features:
-
Intel B760 Chipset Support: Optimized for Intel 12th and 13th Gen processors, enhancing performance and compatibility.
-
DDR4 Memory Support: Supports high-speed DDR4 RAM modules for effective multitasking and smoother workflow.
-
Micro ATX Form Factor: Compact yet functional design, ideal for smaller builds without sacrificing expandability.
-
Dual M.2 Slots: Provides enhanced storage options with support for fast NVMe SSDs.
-
Robust Power Design: Ensures stable power delivery to the CPU for consistent performance under load.
-
PCIe 4.0 Support: Offers faster data transfer speeds for compatible graphics cards and expansion cards.
-
Multiple USB Ports: Includes a variety of USB connectivity options for peripherals and external devices.
-
High-Quality Audio Capacitors: Delivers improved audio performance for entertainment and communication.
This motherboard is an excellent foundation for building a powerful and dependable system with a Motherboard tailored for modern needs. Discover more performance-driven components from GIGABYTE (Intel) to enhance your setup, available at Index IT, your trusted destination for quality PC hardware.
