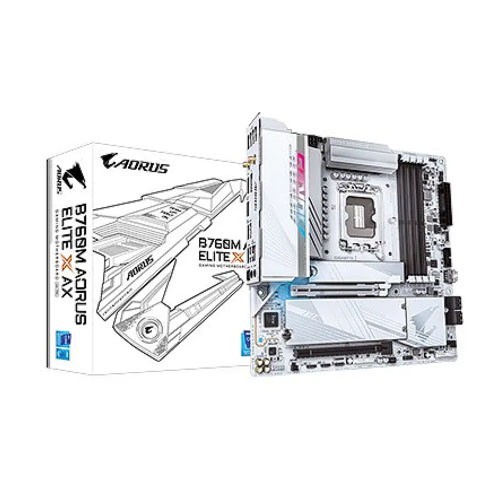

GIGABYTE B760M AORUS ELITE X AX 14th, 13th, And 12th Gen ATX Motherboard

 GIGABYTE B760M AORUS ELITE X AX 14th, 13th, And 12th Gen ATX Motherboard
 GIGABYTE B760M AORUS ELITE X AX 14th, 13th, And 12th Gen ATX Motherboard
 GIGABYTE B760M AORUS ELITE X AX 14th, 13th, And 12th Gen ATX Motherboard
 GIGABYTE B760M AORUS ELITE X AX 14th, 13th, And 12th Gen ATX Motherboard
 GIGABYTE B760M AORUS ELITE X AX 14th, 13th, And 12th Gen ATX Motherboard
 GIGABYTE B760M AORUS ELITE X AX 14th, 13th, And 12th Gen ATX Motherboard
 GIGABYTE B760M AORUS ELITE X AX 14th, 13th, And 12th Gen ATX Motherboard
 GIGABYTE B760M AORUS ELITE X AX 14th, 13th, And 12th Gen ATX Motherboard
GIGABYTE B760M AORUS ELITE X AX 14th, 13th, And 12th Gen ATX Motherboard
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: B760M AORUS ELITE X AX
28,509৳
Ex Tax: 28,509৳

Key Features

    • CPU: LGA1700 socket
    • Chipset: Intel B760 Express Chipset
    • Memory: Support for DDR5
    • LAN: Intel 2.5GbE LAN chip
Description
Processor
Supported CPU LGA1700 Socket: Support For The 14th, 13th, And 12th Generation Intel Core,
Pentium Gold And Celeron Processors* L3 Cache Varies With CPU
Mainboard
Chipset Intel® B760 Express Chipset
Memory
Memory Support For DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.)
/ 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/S Memory Modules
4 X DDR5 DIMM Sockets Supporting Up To 192 GB (48 GB Single DIMM Capacity) Of System Memory
Dual Channel Memory Architecture
Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In
Non-ECC Mode)
Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules
Support For Extreme Memory Profile (XMP) Memory Modules
(The CPU And Memory Configuration May Affect The Supported Memory Types, Data Rate (Speed), And Number Of
DRAM Modules, Please Refer To "Memory Support List" For More Information.)
Storage
Storage CPU:
- 1 X M.2 Connector (Socket 3, M Key, Type 2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU)
Chipset:
- 1 X M.2 Connector (Socket 3,M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2P_SB)
- 4 X SATA 6Gb/S Connectors
RAID 0, RAID 1, RAID 5, And RAID 10 Support For SATA Storage Devices
Graphics
Graphics Chipset Integrated Graphics Processor-Intel® HD Graphics Support:
- 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz
* Support For HDMI 2.1 Version And HDCP 2.3.
** Support For Native HDMI 2.1 TMDS Compatible Ports.
- 1 X Front HDMI Port, Supporting A Maximum Resolution Of 1920x1080@30 Hz
* Support For HDMI 1.4.
- 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz
* Support For DisplayPort 1.2 Version And HDCP 2.3
(Graphics Specifications May Vary Depending On CPU Support.)
Audio & Microphone
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-Channel
* You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio,
Access The Audio Software For Audio Settings.
Support For S/PDIF Out
Networking & Connectivity
Wireless Connectivity Realtek Wi-Fi 6E RTL8852CE (PCB Rev. 1.0/1.2)
- WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands
- BLUETOOTH 5.3
- Support For 11ax 160MHz Wireless Standard
Intel® Wi-Fi 6E AX211 (For PCB Rev. 1.1/1.3)
- WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands
- BLUETOOTH 5.3
- Support For 11ax 160MHz Wireless Standard
(Actual Data Rate May Vary Depending On Environment And Equipment.)
LAN Intel 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps)
Ports
I/O Port ITE I/O Controller Chip
Connector 2 X SMA Antenna Connectors (2T2R)
1 X USB Type-C Port, With USB 3.2 Gen 2x2 Support
1 X USB 3.2 Gen 2 Type-A Port (Red)
3 X USB 3.2 Gen 1 Ports
4 X USB 2.0/1.1 Ports
1 X HDMI Port
1 X DisplayPort
1 X RJ-45 Port
1 X Optical S/PDIF Out Connector
2 X Audio Jacks
Internal I/O Ports 1 X 24-Pin ATX Main Power Connector
1 X 8-Pin ATX 12V Power Connector
1 X 4-Pin ATX 12V Power Connector
1 X CPU Fan Header
3 X System Fan Headers
3 X Addressable RGB Gen2 LED Strip Headers
1 X RGB LED Strip Header
2 X M.2 Socket 3 Connectors
4 X SATA 6Gb/S Connectors
1 X Front Panel Header
1 X Front Panel Audio Header
1 X USB Type-C Header, With USB 3.2 Gen 2 Support
1 X USB 3.2 Gen 1 Header
2 X USB 2.0/1.1 Headers
2 X Thunderbolt Add-In Card Connectors
1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 Module Only)
1 X HDMI Port
1 X Q-Flash Plus Button
1 X Reset Button
1 X Reset Jumper
1 X Clear CMOS Jumper
USB Chipset:
- 1 X USB Type-C Port On The Back Panel, With USB 3.2 Gen 2x2 Support
- 1 X USB Type-C Port With USB 3.2 Gen 2 Support, Available Through The
Internal USB Header
- 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel
- 1 X USB 3.2 Gen 1 Ports On The Back Panel
- 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers
Chipset+USB 3.2 Gen 1 Hub:
- 4 X USB 3.2 Gen 1 Ports (2 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header)
Chipset+USB 2.0 Hub:
- 4 X USB 2.0/1.1 Ports On The Back Panel
Technical Info
Supported OS Support For Windows 11 64-Bit
Support For Windows 10 64-Bit
BIOS 1 X 256 Mbit Flash
Use Of Licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features
Software Norton Internet Security (OEM Version)
LAN Bandwidth Management Software
Physical Specification
Expansion Slots CPU:
- 1 X PCI Express X16 Slot, Supporting PCIe 5.0 And Running At X16 (PCIEX16)
* The PCIEX16 Slot Can Only Support A Graphics Card Or An NVMe SSD. If Only One Graphics Card Is To Be Installed,
Be Sure To Install It In The PCIEX16 Slot.
Chipset:
- 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4)
Form Factor 24.4cm X 24.4cm
Dimension 24.4cm X 24.4cm
Warranty Information
Warranty 3 Years


GIGABYTE B760M AORUS ELITE X AX 14th, 13th, And 12th Gen ATX Motherboard in Bangladesh

GIGABYTE B760M AORUS ELITE X AX 14th, 13th, and 12th Gen ATX Motherboard, now available at TechLand BD in Bangladesh. Designed to support the latest 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors, this motherboard delivers unmatched versatility and power for both gaming and professional applications. Boasting an LGA1700 socket and Intel® B760 Express Chipset, this motherboard ensures seamless compatibility and stability. With support for DDR5 memory up to 8266MHz (O.C.), unleash the full potential of your system with lightning-fast memory speeds and up to 192GB of memory capacity across 4 DIMM sockets. Integrated with Intel® HD Graphics support, including HDMI, Front HDMI, and DisplayPort outputs, enjoy stunning visuals and vibrant colors for an immersive gaming and multimedia experience. The Realtek® Audio CODEC delivers high-definition audio with support for 2/4/5.1/7.1-channel configurations, ensuring crystal-clear sound for your entertainment needs. Stay connected with Intel® 2.5GbE LAN and Realtek® Wi-Fi 6E, offering fast and reliable network connectivity. Expansion slots include PCIe 5.0 and PCIe 4.0 for seamless compatibility with the latest peripherals and graphics cards. Storage options abound with multiple M.2 connectors and SATA 6Gb/s ports, supporting RAID configurations for both NVMe SSDs and SATA storage devices. USB connectivity includes USB Type-C® ports, USB 3.2 Gen 2x2 support, and USB 2.0/1.1 ports for seamless connectivity to external devices. With advanced features such as GIGABYTE Control Center (GCC) support, Q-Flash, and Smart Backup, streamline your computing experience and enhance productivity. Compatible with Windows 11 and Windows 10 64-bit operating systems, the GIGABYTE B760M AORUS ELITE X AX motherboard offers reliability, performance, and versatility for your computing needs.
