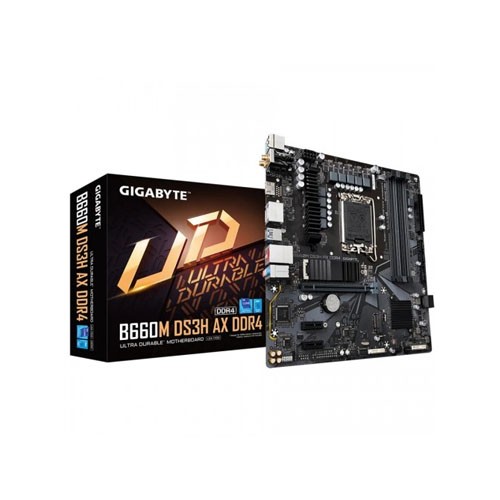

Name: Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard
Brand: Gigabyte
Price: 16000.00 BDT
Availability: OutOfStock

Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard

In Stock

Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B660M DS3H AX DDR4

Based on 0 reviews. - Write a review

16,000৳

Ex Tax: 16,000৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- LGA1700 socket: Supports 12th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4,
- WIFI 6 802.11ax 2T2R & BT5
- Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2

View More Info

Specification

Physical Specification
Type	DDR4
Slots	4 x DDR DIMM sockets
Supported Memory	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Max. Memory	up to 128 GB (32 GB single DIMM capacity) of system memory
Basic Information
Supported CPU	LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset	Intel B660 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x1 slots (The PCIEX1 slots conform to PCI Express 3.0 standard.)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. Support for up to 3 displays at the same time
Connector & Ports
HDMI	1 x HDMI port
USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Others Information
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	3 years

Description

Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard

The Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard is a high-performance motherboard designed to deliver exceptional reliability, versatility, and efficiency for modern desktop builds. Supporting Intel’s 12th Gen Core processors, it brings a perfect balance of power and advanced features for both gamers and productivity users. Built in a compact Micro ATX form factor, this motherboard offers flexibility for smaller PC cases without compromising on expandability. Equipped with DDR4 memory support up to high speeds, the B660M DS3H AX ensures fast and stable system performance, while integrated Wi-Fi 6 and Bluetooth 5.2 connectivity provide seamless networking for online gaming, streaming, and remote work. The motherboard features a durable design with high-quality components, multiple PCIe slots for graphics cards, and M.2 slots for ultra-fast SSDs, ensuring a future-ready platform. Users also benefit from advanced thermal designs that maintain optimal temperatures during intense workloads, enhancing overall system longevity. With user-friendly BIOS options and a host of customization features, the Gigabyte B660M DS3H AX DDR4 makes system tuning simple for both beginners and experienced PC builders. Whether you’re assembling a high-speed gaming rig or a professional workstation, this motherboard offers the perfect combination of performance, connectivity, and reliability in a compact design.

Special Benefits of Gigabyte B660M DS3H AX Micro ATX Motherboard

The Gigabyte B660M DS3H AX DDR4 is a reliable and high-performance motherboard designed for 12th Gen Intel processors. It combines advanced connectivity, robust build quality, and efficient power delivery to ensure smooth multitasking, gaming, and professional workloads.

12th Gen Intel Support – Optimized for Intel 12th Gen Core processors for top-tier performance.
DDR4 Memory Support – Dual-channel DDR4 RAM supports up to high frequencies for fast data processing.
Micro ATX Form Factor – Compact design without compromising on features or expandability.
Advanced Connectivity – Equipped with Wi-Fi 6, Bluetooth, multiple USB ports, and LAN for seamless networking.
M.2 & SATA Storage Options – Supports NVMe SSDs and SATA drives for high-speed storage solutions.
Durable Build Quality – Premium components ensure long-term stability and reliability.
Integrated Graphics Support – HDMI and DisplayPort outputs for flexible display options.
Enhanced Cooling & Power Design – Keeps your system stable under heavy workloads and gaming sessions.

Upgrade your Intel setup with the Gigabyte B660M DS3H AX DDR4 12th Gen Motherboard and experience seamless performance, fast connectivity, and reliable power delivery. Order now and build your next-level PC today!

This premium Component and Motherboard from GIGABYTE (Intel) is perfect for gamers, creators, and PC enthusiasts. Explore more high-quality motherboards and components in our Component and Motherboard categories, featuring authentic Gigabyte (Intel) products, only at Index IT, your trusted source for genuine tech and unbeatable deals.
