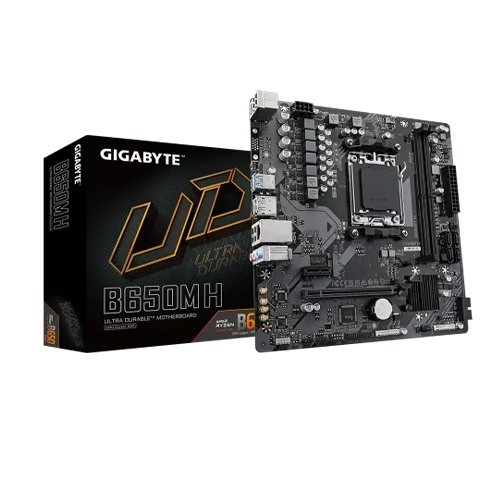

GIGABYTE B650M H AM5 Micro-ATX Motherboard
The GIGABYTE B650M H AM5 Micro-ATX Motherboard is a robust and versatile platform designed for gamers, content creators, and productivity enthusiasts who demand high performance, stability, and future-ready expandability. Built for AMD’s latest Ryzen 7000, 8000, and 9000 series processors with the AM5 socket, this motherboard leverages the AMD B650 chipset to deliver reliable performance and advanced features suitable for both workstations and high-end gaming rigs. Its compact Micro-ATX form factor (23.0cm x 22.5cm) ensures compatibility with smaller cases without compromising functionality. Equipped with two DDR5 memory slots, the motherboard supports memory speeds up to 6400 MT/s (OC) and a maximum capacity of 96GB, enabling smooth multitasking, fast data access, and enhanced system responsiveness. Dual-channel architecture, along with AMD EXPO and XMP support, allows for easy memory optimization and overclocking potential. Graphics output is versatile, with one HDMI 2.1 port supporting up to 4096x2160@60Hz and one DisplayPort 1.4 supporting up to 3840x2160@144Hz, accommodating high-resolution displays for gaming, design, and media consumption. Storage performance is excellent, with two M.2 slots supporting PCIe 4.0 x4/x2 SSDs and four SATA 6Gb/s connectors, all compatible with RAID 0, 1, and 10 configurations for improved speed and data redundancy. Expansion is flexible with one PCIe 4.0 x16 slot for graphics cards and one PCIe 3.0 x1 slot for additional peripherals. Connectivity options include USB 3.2 Gen 1, multiple USB 2.0 ports, a Realtek GbE LAN port, and audio through three high-definition audio jacks. The motherboard also supports TPM 2.0 for enhanced security, Q-Flash and Q-Flash Plus for easy BIOS updates, and features headers for RGB and addressable LED lighting.
Features Of GIGABYTE B650M H AM5 Micro-ATX Motherboard
- Supports AMD Ryzen 7000, 8000 & 9000 Series Desktop Processors via AM5 socket
- Based on AMD B650 chipset for strong performance and PCIe 4.0 compatibility
- Compact mATX form factor (23.0 × 22.5 cm) ideal for smaller chassis
- 2 × DDR5 DIMM slots, supporting up to 96GB memory
- Overclock‑ready memory up to 6400+ MT/s (OC) with AMD EXPO and XMP support
- 1 × PCIe 4.0 x16 slot for graphics cards
- 1 × PCIe 3.0 x1 slot for additional expansion cards
- 2 × M.2 slots (PCIe 4.0 x4/x2) for fast NVMe storage
- 4 × SATA 6Gb/s ports with RAID 0, 1, and 10 support
- HDMI 2.1 and DisplayPort 1.4 outputs for high-resolution displays
- Realtek Gigabit LAN for stable and fast wired connectivity
- Realtek high-definition audio codec via 3 audio jacks
- Headers for Addressable RGB and conventional LED strip lighting
- TPM 2.0 header for enhanced system security
- Q-Flash and Q-Flash Plus for BIOS updates without booting into OS
- GIGABYTE Control Center (GCC) support for system monitoring and control
- Built-in EZ Clear CMOS jumper for easy BIOS reset
- Multiple system fan headers for effective cooling design
- Backed by a 3-year manufacturer warranty
