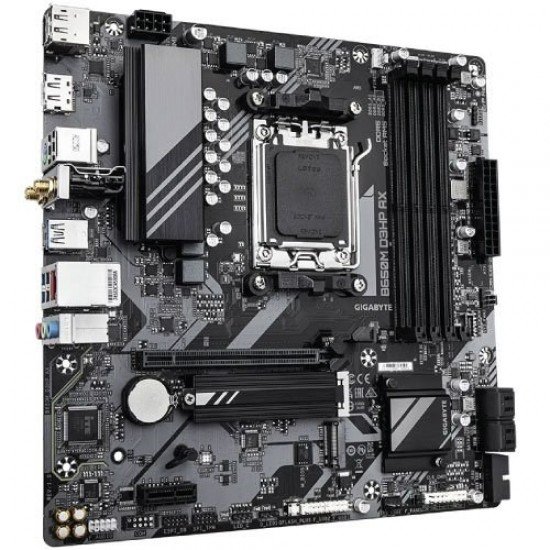

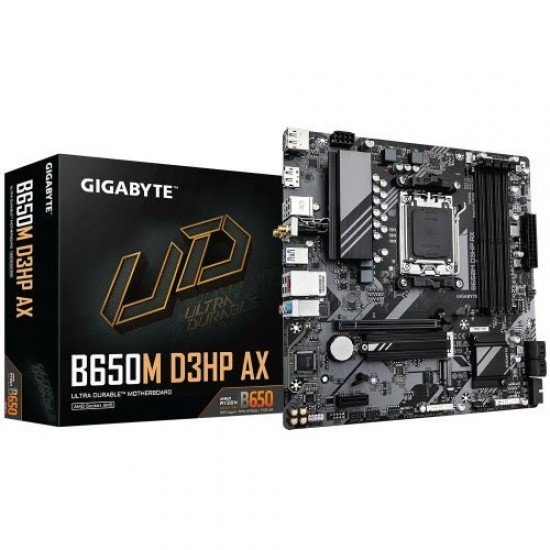

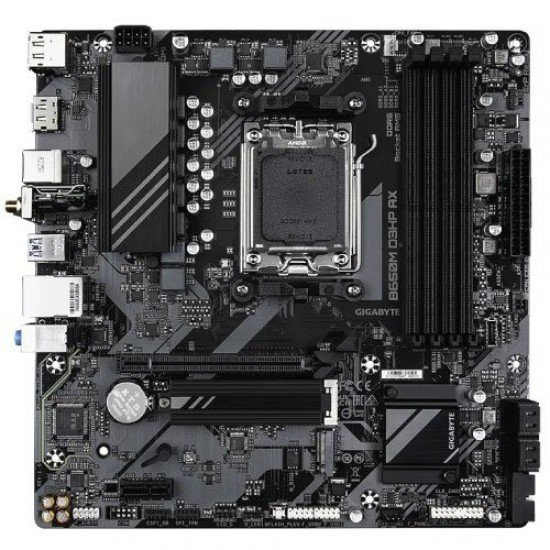

Name: GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard
Brand: GIGABYTE
Price: 18600.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard

-5 % In Stock

GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: B650M D3HP AX

Based on 1 reviews. - Write a review

18,600৳

19,500৳

Ex Tax: 18,600৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 192GB, 7600(OC)
- Graphics Output: 2x Display Port, 1 x HDMI
- Features: Realtek 2.5GbE LAN & Realtek Wi-Fi 6E RTL8852CE

View More Info

Specification

Physical Specification
Slots	4 DIMMs
Supported Memory	7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Maximum Memory	192GB
Basic Information
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
Chipset	AMD B650
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Type	DDR5
Expansion Slots
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Graphics
Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. Support for up to triple-display at the same time (Graphics specifications may vary depending on CPU support.)
Connector & Ports
HDMI	1x HDMI
RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Display Port (s)	2 x DisplayPorts
USB (s)	CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 1 port on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless (Actual data rate may vary depending on environment and equipment.)
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
Audio	3 x Audio jacks

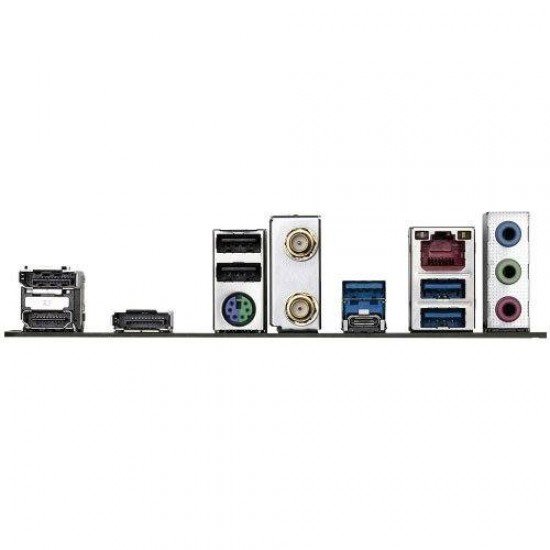

Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x DisplayPorts 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Warranty	3 Years

Description

GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard

The GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard is a high-performance and future-ready platform designed for modern AMD-based PCs. Built around the AMD B650 chipset and featuring the AM5 socket, it fully supports AMD Ryzen 7000 and 8000 Series processors, providing excellent computing power for gaming, content creation, and everyday tasks. With its Micro ATX form factor (24.4cm x 24.4cm), the motherboard fits easily into compact cases while offering robust expansion and connectivity options. Memory performance is a standout feature of the B650M D3HP AX, offering four DDR5 DIMM slots that support up to 192GB of RAM. It supports high-speed modules up to 7600MT/s (OC) and is compatible with AMD EXPO and Intel XMP profiles, allowing easy memory tuning and overclocking for enhanced system responsiveness. Dual-channel memory architecture ensures optimal bandwidth for demanding applications. For graphics and display, the motherboard features an integrated AMD Radeon graphics processor, with one HDMI 2.1 port supporting 4096x2160@60Hz and two DisplayPort 1.4 ports supporting 3840x2160@144Hz. Users can run up to three displays simultaneously, making it ideal for multitasking and immersive visuals. Expansion is supported with a PCIe x16 slot integrated in the CPU and an additional PCIe x1 slot for add-on cards. Storage options include two M.2 connectors (CPU and chipset) and four SATA 6Gb/s ports, supporting RAID 0, 1, and 10 for both NVMe SSDs and SATA devices, providing flexibility and improved data security. Connectivity features are extensive, including Realtek 2.5GbE LAN, Wi-Fi 6E with Bluetooth 5.3, multiple USB ports including USB Type-C, and support for GIGABYTE Control Center for system monitoring. Additional features include high-definition audio, RGB and addressable LED headers, Q-Flash Plus for easy BIOS updates, and TPM support for enhanced security. Backed by a 3-year warranty, the GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard delivers a balanced combination of performance, expandability, and reliability for compact AMD systems.

Features Of GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard

Supported CPU: Compatible with AMD Ryzen 7000 and 8000 Series Processors for Socket AM5, delivering powerful performance for gaming, content creation, and multitasking.
High-Speed DDR5 Memory: Four DDR5 DIMM slots supporting up to 192GB of RAM with speeds up to 7600MT/s (OC). Supports AMD EXPO and Intel XMP for easy memory overclocking.
Graphics & Display: Integrated AMD Radeon Graphics with 1x HDMI 2.1 port (4096x2160@60Hz) and 2x DisplayPort 1.4 ports (3840x2160@144Hz). Supports triple-display setups for immersive visuals and multitasking.
Advanced Storage Options: Two M.2 connectors (CPU and chipset) and four SATA 6Gb/s ports, with RAID 0, 1, and 10 support for NVMe SSDs and SATA devices, offering flexibility and enhanced data security.
Robust Connectivity: Realtek 2.5GbE LAN for high-speed wired networking, Realtek Wi-Fi 6E RTL8852CE, and Bluetooth 5.3 for stable wireless connections. Multiple USB ports including USB Type-C for fast data transfer.
Expansion Slots & Form Factor: PCIe x16 slot integrated in the CPU and PCIe x1 slot for additional cards. Micro ATX form factor (24.4cm x 24.4cm) fits compact cases without compromising expandability.
Enhanced Features: High-definition audio with 3 audio jacks, RGB and addressable LED headers, Q-Flash Plus for easy BIOS updates, TPM support for security, and support for GIGABYTE Control Center (GCC) for system monitoring.
