| Physical Specification | ||
| Slots | Expansion Slots<br> 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> - AMD Ryzen 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br> 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1<br> * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen 8000 Series-Phoenix 2 processor is used.<br> 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1 | |
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for:<br> AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors<br> (Please refer "CPU Support List" for more information.) | |
| Chipset | AMD B650 Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Audio | Realtek Audio CODEC<br> ALC897<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Memory | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/<br> 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules<br> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory<br> Dual channel memory architecture<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules<br> (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Operating System | Support for Windows 11 64-bit<br> Support for Windows 10 64-bit | |
| Graphics | ||
| Graphics | Integrated Graphics Processor:<br> - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz<br> * Support for DisplayPort 1.4 version.<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3.<br> ** Support for native HDMI 2.1 TMDS compatible ports.<br> (Graphics specifications may vary depending on CPU support.) | |
| Input Devices | ||
| External I/O Ports | 1 x DisplayPort<br> 1 x HDMI port<br> 1 x PS/2 keyboard/mouse port<br> 2 x SMA antenna connectors (1T1R)<br> 1 x USB Type-C port, with USB 3.2 Gen 1 support<br> 2 x USB 3.2 Gen 2 Type-A ports (red)<br> 6 x USB 2.0/1.1 ports<br> 1 x RJ-45 port<br> 3 x audio jacks | |
| Connectivity | ||
| USB | CPU:<br> - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support<br> CPU+USB 2.0 Hub:<br> - 4 x USB 2.0/1.1 ports on the back panel<br> Chipset:<br> - 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header<br> - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> Chipset+USB 2.0 Hub:<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Connector & Ports | ||
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br> - AMD Ryzen 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:<br> - AMD Ryzen 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs<br> 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)<br> 4 x SATA 6Gb/s connectors<br> RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices<br> RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 2 x system fan headers<br> 1 x system fan/water cooling pump header<br> 1 x addressable RGB Gen2 LED strip header<br> 1 x RGB LED strip header<br> 3 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 1 support<br> 1 x USB 3.2 Gen 1 header<br> 3 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)<br> 1 x Q-Flash Plus button<br> 1 x Clear CMOS jumper | |
| Network & Connectivity | ||
| Bluetooth | BT 5.0 | |
| LAN | Realtek RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| WiFi | Realtek RTL8851 WIFI 6 module<br> - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band<br> - Support for 11ac wireless standard<br> (Actual data rate may vary depending on environment and equipment.) | |
| Physical Specification | ||
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> LAN bandwidth management software | |
| Special Features | Support for GIGABYTE Control Center (GCC)<br> * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> Support for Q-Flash<br> Support for Q-Flash Plus | |
| Warranty Information | ||
| Warranty | 3 Years | |

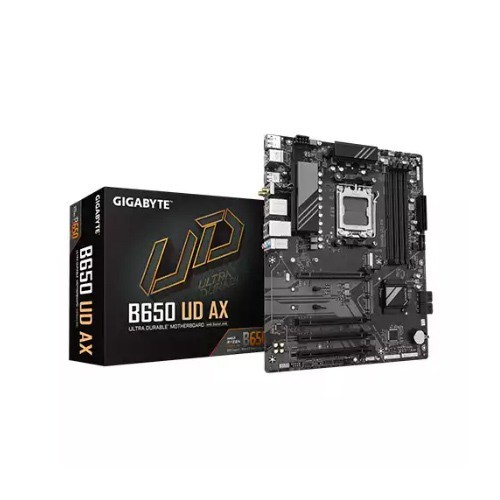

The GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard is a high-performance, reliable platform designed for gamers, content creators, and PC enthusiasts who demand speed, stability, and future-ready technology. Built on the AMD B650 chipset, this motherboard supports the latest AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 socket, ensuring powerful computing performance for gaming, multitasking, and productivity. Featuring 4 DDR5 DIMM slots, the B650 UD AX supports up to 256GB of system memory with high frequencies reaching 8000MHz (OC). Dual-channel architecture, along with support for AMD EXPO and XMP memory profiles, provides optimized memory performance, faster bandwidth, and enhanced overclocking capabilities for demanding applications. The motherboard offers a versatile expansion setup with 1 PCIe 4.0 x16 slot for graphics cards, two additional PCIe 3.0 x1 slots, and one PCIe 3.0 slot integrated into the chipset. Storage options include three M.2 slots (supporting PCIe 5.0/4.0 depending on CPU) and four SATA 6Gb/s connectors, with RAID 0/1/10 support for flexible and secure storage solutions. Connectivity is robust with USB 3.2 Gen 2 Type-A, USB Type-C, multiple USB 2.0 ports, HDMI 2.1, and DisplayPort 1.4 outputs for integrated graphics. Networking is supported through Realtek GbE LAN, Wi-Fi 6 (802.11a/b/g/n/ac), and Bluetooth 5.0, offering fast and stable connections for online gaming and streaming. Audio is powered by the Realtek ALC897 Audio CODEC, supporting 2/4/5.1/7.1-channel HD audio, and the motherboard features internal headers for RGB lighting, fans, and water-cooling pumps. Exclusive features such as GIGABYTE Control Center (GCC), Q-Flash, and Q-Flash Plus ensure easy system management, BIOS updates, and enhanced user experience. With its full ATX form factor, premium components, and 3-year warranty, the GIGABYTE B650 UD AX DDR5 AM5 Motherboard delivers durability, high performance, and a reliable foundation for building a next-generation PC.
The latest price of GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard in Bangladesh is 21,700৳ You can buy the GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard at best price from our Website or visit any of our showrooms.
