| Physical Specification | ||
| Slots | 4 DIMMs | |
| Supported Memory | 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/<br> 4800/ 4400 MT/s memory modules<br> Dual channel memory architecture<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory<br> modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Maximum Memory | 192GB | |
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors | |
| Chipset | AMD B650 | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software.<br> To configure 7.1-channel audio, access the audio software for audio settings. | |
| Type | DDR5 | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br> 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1<br> * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used.<br> 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1 | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support:<br> - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz<br> * Support for DisplayPort 1.4 version.<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3.<br> ** Support for native HDMI 2.1 TMDS compatible ports.<br> (Graphics specifications may vary depending on CPU support.) | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices<br> RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Display Port (s) | 1 x DisplayPorts | |
| USB (s) | CPU:<br> - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support<br> CPU+USB 2.0 Hub:<br> - 4 x USB 2.0/1.1 ports on the back panel<br> Chipset:<br> - 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header<br> - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> Chipset+USB 2.0 Hub:<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| Wireless Communication module | Realtek Wi-Fi 6E RTL8852CE<br> - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands<br> - BLUETOOTH 5.3<br> - Support for 11ax 160MHz wireless standard<br> (Actual data rate may vary depending on environment and equipment.) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br> - AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:<br> - AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs<br> - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs<br> 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)<br> 4 x SATA 6Gb/s connectors | |
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Internal I/O Connectors<br> 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 2 x system fan headers<br> 1 x system fan/water cooling pump header<br> 3 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 3 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 1 support<br> 1 x USB 3.2 Gen 1 header<br> 3 x USB 2.0/1.1 headers<br> 1 x Q-Flash Plus button<br> 1 x serial port header j<br> 1 x Clear CMOS jumper<br> Back Panel Connectors<br> 1 x DisplayPort<br> 1 x HDMI port<br> 1 x PS/2 keyboard/mouse port<br> 2 x SMA antenna connectors (2T2R)<br> 1 x USB Type-C port, with USB 3.2 Gen 1 support<br> 2 x USB 3.2 Gen 2 Type-A ports (red)<br> 6 x USB 2.0/1.1 ports<br> 1 x RJ-45 port<br> 3 x audio jacks | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> LAN bandwidth management software | |
| Special Features | Support for GIGABYTE Control Center (GCC)<br> * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> Support for Q-Flash<br> Support for Q-Flash Plus | |
| Warranty Information | ||
| Warranty | 3 Years | |

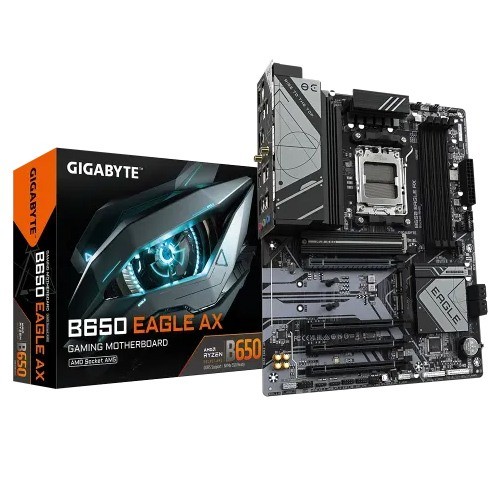

The GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard is designed for users who want to build a powerful, future-ready PC without compromising on speed, stability, or upgrade potential. In today’s fast-paced digital world, slow performance, limited upgrade options, and outdated hardware can seriously affect productivity and gaming experience. This motherboard solves those issues by supporting AMD’s latest AM5 platform and DDR5 memory, ensuring faster data processing, smoother multitasking, and improved overall system responsiveness. Whether you are a gamer, content creator, or professional user, this motherboard provides a balanced foundation for high-performance computing. It also enhances system efficiency with modern connectivity options, allowing users to enjoy faster networking and seamless device integration. Built with reliability in mind, it reduces system bottlenecks and ensures long-term usability. If you are planning to upgrade your PC or build a new one, this motherboard offers a strong combination of performance, durability, and future compatibility, making it a smart investment for demanding users.
Users of the GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard generally appreciate its strong performance stability and modern feature set. Many buyers report that system boot times are noticeably faster, and overall responsiveness improves significantly when paired with DDR5 RAM and compatible Ryzen processors. Gamers highlight smoother gameplay with reduced lag, especially in CPU-intensive titles. Content creators also mention improved rendering speeds and efficient multitasking capabilities. Some users initially find BIOS setup slightly advanced, but once configured, the system runs very reliably. Overall, customer feedback suggests that this motherboard delivers excellent value for its price range, especially for users building a future-proof AMD-based PC. It is often recommended for mid-to-high level PC builds due to its balance of performance, stability, and upgrade potential.
If you are planning to upgrade your system with a reliable and future-ready motherboard, the GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard is a strong choice for gaming, productivity, and professional workloads. It delivers excellent performance, modern connectivity, and long-term upgrade support, making it suitable for both beginners and advanced PC builders. At Index IT, you can explore a wide range of motherboard category products designed to meet different performance needs and budgets. Choosing the right motherboard is the foundation of a powerful PC build, and this model ensures you get stability, speed, and compatibility in one package. Don’t wait to upgrade your experience—visit Index IT today and explore the best options in the motherboard and pc components to build a system that keeps up with your future demands.
The latest price of GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard in Bangladesh is 26,300৳ You can buy the GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard at best price from our Website or visit any of our showrooms.
