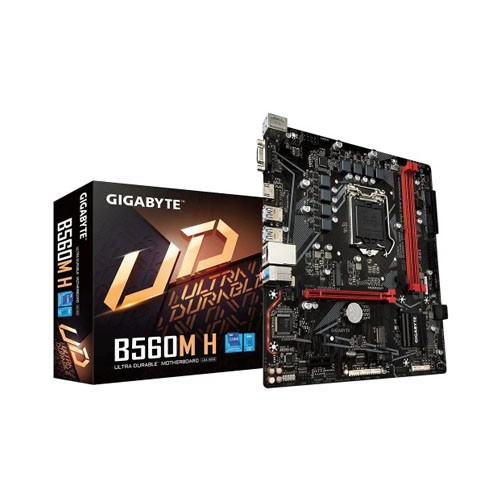

Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard

Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard
In Stock
Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard
Share:
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: B560M H
  • MPN: star
Based on 0 reviews. - Write a review
11,000৳
Ex Tax: 11,000৳
Buy Now
Buy Now Add to Compare
Add to Wish List Compare this Product

Key Features

    • Supports 11th and 10th Gen Intel Core Processors
    • Direct 6+2 Phases Digital VRM
    • Dual Ultra-Fast NVMe PCIe 4.0
    • Exclusive 8118 Gaming LAN
View More Info
Specification
Physical Specification
Type DDR4
Slots 2 x DIMM
Supported Memory 11th Generation Intel Core i9/ i7/ i5 processors: Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Max. Memory 64 GB (32 GB single DIMM capacity)
Basic Information
Supported CPU 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset Intel B560 Express Chipset
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note) 1 x PCI Express x1 slot (PCIEX1) (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
M.2 Socket CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz * Support for HDMI 2.0 version and HDCP 2.3.
Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz
USB (s) Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset + USB 2.0 Hub: 8 x USB 2.0/ 1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1 Gbit/100 Mbit)
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) 4 x SATA 6Gb/s connectors Intel Optane Memory Ready
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz
Others Information
Special Features Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty 3 year
Description

Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard

Gigabyte B560M H Ultra Durable Intel 10th And 11th Gen Micro ATX Motherboard Supports 11th And 10th Gen Intel Core Series Processors. It Has Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. It Features Direct 6 + 2 Phases Digital VRM With Low RDS(On) MOSFETs. It Has Shielded Memory Routing For Better Memory Overclocking. It Comes With A Fully Covered Thermal Design With High Coverage MOSFET Heatsinks. It Is Powered By A Exclusive 8118 Gaming LAN With Bandwidth Management. It Supports Dual Ultra-Fast NVMe PCIe 4.0/3.0 X4 M.2 With Thermal Guard It Comes With Rear USB 3.2 Gen2 Type-C And Front USB3.2 Gen1 Type-C For Connecting Devices. It Has Pre-Installed IO Shield For Easy And Quick Installation. RGB FUSION 2.0 With Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers With FAN STOP. Q-Flash Plus Update BIOS Without Installing The CPU, Memory And Graphics Card.

Cooling Features:

High Current Support

Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control

Up to 7 temperature/fan speed control points for precise fan curve

Dual Curve Mode

Slope/Stair dual mode for different user scenario

Fan Stop

Fan can stop completely below users' specified temperature point

Solid Pin Power Connectors:

B560 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

  • Larger contact area for electricity
  • More metal quantity to sustain higher power and generated heat
  • Ultra durable and longer lifespan
