| Physical Specification | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 4 x DIMM | |
| Supported Memory | AMD Ryzen™ 5000 series processors:<br> Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / <br>3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz <br>memory modules<br> 3rd Gen AMD Ryzen™ Processors:<br> Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ <br>2133 MHz memory modules<br> 3rd Gen AMD Ryzen with Radeon Graphics processors:<br> Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) <br>/3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules<br> Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules<br> Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 128 GB | |
| Basic Information | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD B550 | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode<br> 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode<br> 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:<br> Supporting PCIe 3.0 x4 mode<br> 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:<br> Supporting PCIe 3.0 x1 mode | |
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type <br>2242/2260/2280/22110 SSDs: | |
| Graphics | ||
| Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:<br> 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz<br> The DVI-D port does not support D-Sub connection by adapter.<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| Max Shared Memory | 16 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> (Support for HDMI 2.1 version, HDCP 2.3, and HDR) | |
| USB (s) | CPU:<br> 4 x USB 3.2 Gen 1 ports on the back panel<br> Chipset:<br> 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB <br>header) | |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit)<br> Wireless Communication module:<br> Intel Wi-Fi AC 3168<br> WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band<br> BLUETOOTH 4.2<br> Support for 11ac wireless standard and up to 433 Mbps data rate | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type <br>2242/2260/2280/22110 SSDs:<br> 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs<br> 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 <br>SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type <br>2242/2260/2280 SSDs:<br> Supporting SATA and PCIe 3.0 x2 SSDs<br> 4 x SATA 6Gb/s connectors, integrated in the Chipset:<br> Support for RAID 0, RAID 1, and RAID 10 | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 2 x system fan headers<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 1 x CPU cooler LED strip/RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 1 x USB 2.0/1.1 header<br> 1 x serial port header<br> 1 x Clear CMOS jumper<br> 1 x Q-Flash Plus button | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz<br> (The DVI-D port does not support D-Sub connection by adapter) | |
| Others Information | ||
| Special Features | Special Features<br> Support for APP Center<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |

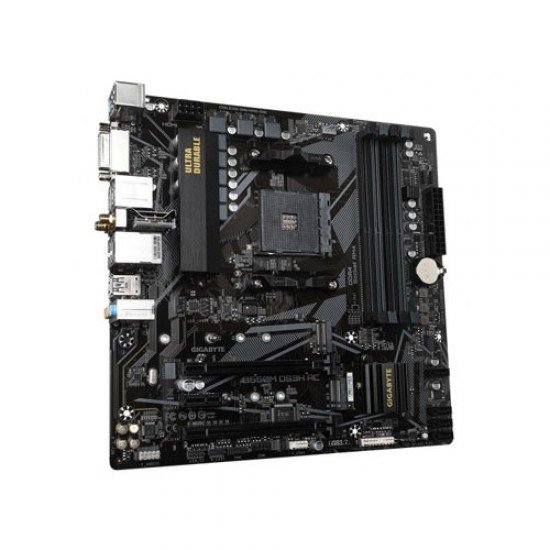

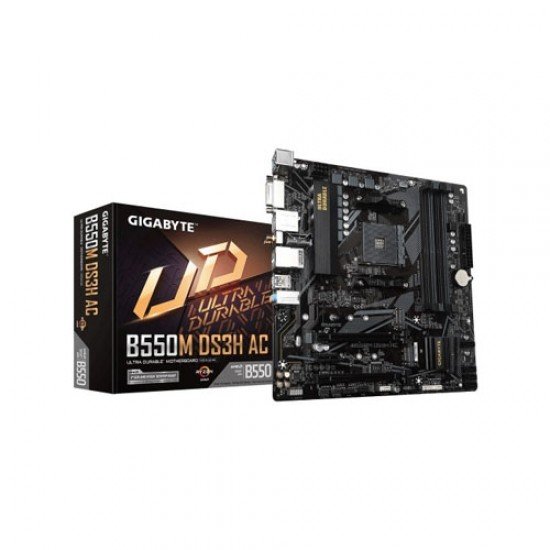

The Gigabyte B550M DS3H AC Ultra Durable Micro ATX AMD Motherboard is a high-performance motherboard designed for gamers, creators, and PC enthusiasts who demand reliability and advanced functionality. Built on the AMD B550 chipset, this motherboard supports AMD Ryzen 3000 and 5000 series processors, offering robust performance for multitasking, gaming, and productivity applications. With a compact Micro ATX form factor, it perfectly fits mid-sized PC builds without compromising on expansion options. Equipped with ultra-durable components, including high-quality capacitors and solid-state chokes, this motherboard ensures long-lasting stability even under heavy workloads. It features dual-channel DDR4 memory support with speeds up to 4866 MHz (OC), providing smooth and responsive system performance. The integrated Wi-Fi 802.11ac ensures fast and stable wireless connectivity, while Intel Gigabit LAN guarantees reliable wired network performance. For gamers and content creators, the B550M DS3H AC includes PCIe 4.0 support for next-gen graphics cards and NVMe M.2 SSDs, enabling ultra-fast data transfer and reduced loading times. Multiple USB 3.2 Gen1 and Gen2 ports, HDMI and DisplayPort outputs, and high-definition audio ensure seamless connectivity and immersive experiences. The motherboard also supports RGB lighting for customizable aesthetics, giving your build a stylish and personalized look. With a balance of performance, durability, and future-ready technology, the Gigabyte B550M DS3H AC Ultra Durable Micro ATX AMD Motherboard is an ideal choice for anyone looking to build a powerful and reliable AMD-based PC system.
The Gigabyte B550M DS3H AC Ultra Durable Micro ATX AMD Motherboard combines performance, connectivity, and reliability. Here’s what makes it stand out:
The latest price of Gigabyte B550M DS3H AC Ultra Durable Micro ATX AMD Motherboard in Bangladesh is 15,200৳ You can buy the Gigabyte B550M DS3H AC Ultra Durable Micro ATX AMD Motherboard at best price from our Website or visit any of our showrooms.
