Specification
| Basic Information |
| Supported CPU |
AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors |
| Chipset |
AMD B550 |
| BIOS |
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor |
ATX Form Factor: 30.5cm x 24.4cm |
| Expansion Slots |
| PCI |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
- 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
- Supporting PCIe 3.0 x2 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode |
| M.2 Socket |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
- 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
- 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
- Supporting SATA and PCIe 3.0 x4/x2 SSDs |
| Memory |
| Type |
DDR4 |
| Slots |
4 x DIMM slots |
| Supported Memory |
AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen :
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory |
support up to 128GB (32 GB single DIMM capacity) |
| Graphics |
| Graphics |
Integrated in the New Generation AMD Ryzen with Radeon Graphics processors:
1 x DisplayPort, supporting a maximum resolution of 5120 x 2880 @60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
| Max Shared Memory |
16 GB |
| Connector & Ports |
| HDMI |
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Display Port (s) |
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz |
| USB (s) |
CPU:
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset + USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) |
Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Wireless Communication module |
Intel Wi-Fi 6 AX200
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Supported Storage |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
- 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
- 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
- Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
- Support for RAID 0, RAID 1, and RAID 10 |
| Audio |
Realtek ALC1200 codec
High Definition Audio
2/ 4/ 5.1/ 7.1-channel
Support for S/PDIF Out |
| Internal I/O Ports |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) |
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| Others |
| Special Features |
Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install |
| Warranty Information |
| Manufacturing Warranty |
03 years warranty |

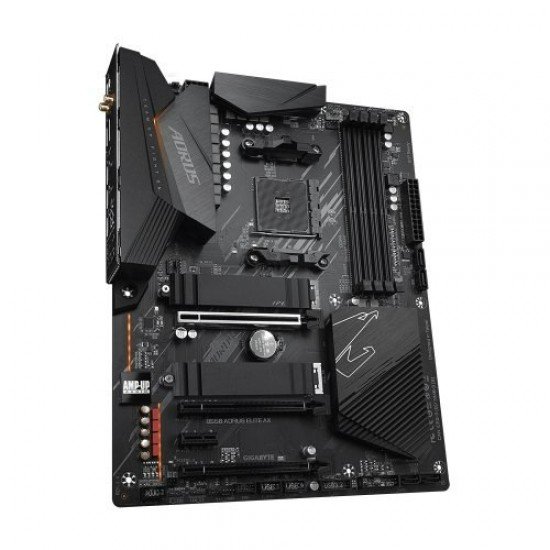

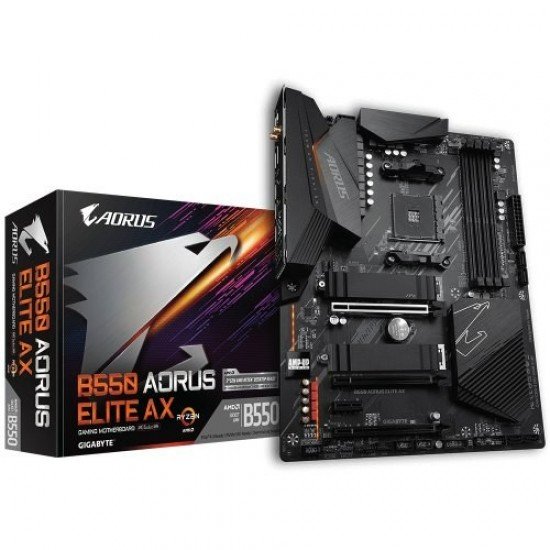

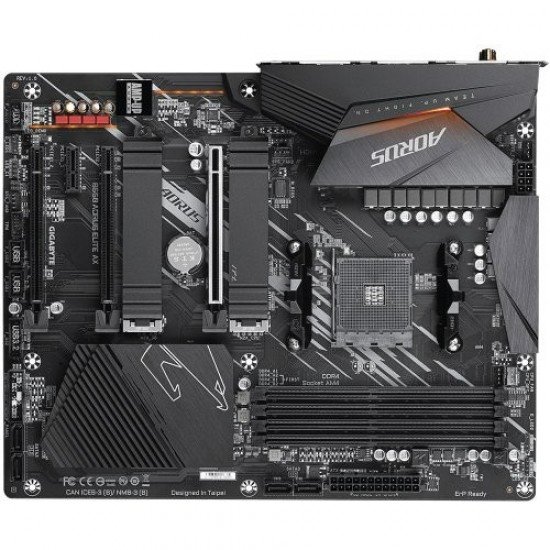

GIGABYTE B550 Aorus Elite AX Motherboard – Power, Precision & Next-Gen Performance
The GIGABYTE B550 Aorus Elite AX embodies the spirit of the falcon—sharp, powerful, and unstoppable even in the darkest environments. Just like the falcon’s piercing vision, the AORUS Core Lighting system illuminates your setup with bold RGB effects, making it a centerpiece of any high-end gaming rig. Designed for gamers and PC enthusiasts, this motherboard delivers unmatched stability, raw power, and premium features that elevate your computing experience.
Ultimate Power Design
To support the full potential of 3rd Gen AMD Ryzen processors, the B550 Aorus Elite AX integrates a true direct, digital multi-phase power design. This ensures stable CPU power delivery, smoother performance under load, and an uncompromised platform for overclocking. After extensive fine-tuning and testing, GIGABYTE engineered this board to provide long-term reliability and extreme performance for demanding users.
Unparalleled Performance
GIGABYTE focuses on delivering peak efficiency with optimized memory routing, reducing signal interference and boosting memory overclocking capability. The motherboard also features multiple PCIe and M.2 slots, including PCIe 4.0 readiness, ensuring compatibility with the fastest SSDs and graphics cards. With built-in thermal guards, M.2 SSDs can sustain high performance without thermal throttling—ideal for gamers, streamers, and creators who need maximum speed and stability.
Advanced Thermal Solution
Engineered for heavy workloads, the B550 Aorus Elite AX features enlarged heatsinks, high-quality thermal pads, and superior M.2 thermal guards. These ensure cooler temperatures for both the MOSFETs and SSDs, even during intense gaming or rendering sessions. This robust cooling system guarantees long-term durability and consistent peak performance.
Next-Generation Connectivity
Stay ahead of the curve with cutting-edge connectivity options. The board includes 2.5GbE LAN, offering speeds twice as fast as standard Gigabit Ethernet—perfect for low-latency gaming and streaming. It also comes with Intel Wi-Fi 6 (802.11ax) and Bluetooth 5, delivering ultra-fast wireless performance, smoother video streaming, and extended wireless range.
Hi-Fi Audio System
For audiophiles and gamers who demand superior sound quality, the motherboard uses Hi-Fi grade WIMA FKP2 capacitors, Nichicon Fine Gold capacitors, and the exclusive AORUS AMP-UP Audio technology. These components provide immersive, crystal-clear audio for gaming, movies, and music.
RGB Fusion 2.0
With enhanced RGB personalization through RGB Fusion 2.0, users can customize every lighting zone to match their style. Sync lighting across the entire AORUS ecosystem for a fully unified, vibrant PC build.
