| Physical Specification | ||
| Type | Dual channel memory architecture | |
| Slots | - 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory | |
| Supported Memory | - Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules<br> - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> - Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 32 GB | |
| Basic Information | ||
| Supported CPU | AM4 Socket<br> Support for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon<br> Vega Graphics/ Ryzen 1st Generation Processors | |
| Chipset | AMD B450 | |
| BIOS | 1 x 128 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16<br> (The PCIEX16 slot conforms to PCI Express 3.0 standard.)<br> 2 x PCI Express x1 slots<br> (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) | |
| M.2 Socket | 1 x M.2 Socket 3 connector<br> 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)<br> Supports only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series or <br>Athlon APU. | |
| Graphics | ||
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz<br> 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz<br> The DVI-D port does not support D-Sub connection by adapter.<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz(Note)<br> Support for HDMI 2.0 version and HDCP 2.2.(Note)<br> Maximum shared memory of 2 GB<br> (Note) Actual support may vary by CPU. | |
| Max Shared Memory | 2 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz<br> Support for HDMI 2.0 version and HDCP 2.2.<br> 1 x HDMI port | |
| USB (s) | Chipset:<br> 2 x USB 3.1 Gen 1 ports available through the internal USB header<br> 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)<br> CPU:<br> 4 x USB 3.1 Gen 1 ports on the back panel | |
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)<br> Supports only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series <br>or Athlon APU.<br> 4 x SATA 6Gb/s connectors<br> Support for RAID 0, RAID 1, and RAID 10 | |
| Audio | Realtek ALC887 codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> To configure 7.1-channel audio, you have to use an HD front panel audio module and enable <br>the multi-channel audio feature through the audio driver.<br> Support for S/PDIF Out | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x system fan header<br> 1 x M.2 Socket 3 connector<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x S/PDIF Out header<br> 1 x CPU cooler LED strip/RGB LED strip header<br> 1 x USB 3.1 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x speaker header<br> 1 x Clear CMOS jumper<br> 1 x chassis intrusion header | |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz | |
| Others Information | ||
| Special Features | Support for APP Center<br> Available applications in APP Center may vary by motherboard model. Supported functions of<br> each application may also vary depending on motherboard specifications.<br> BIOS<br> 3D OSD<br> AutoGreen<br> Cloud Station<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> Smart Keyboard<br> Smart TimeLock<br> Smart HUD<br> Smart Survey<br> System Information Viewer<br> USB Blocker<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years warranty | |

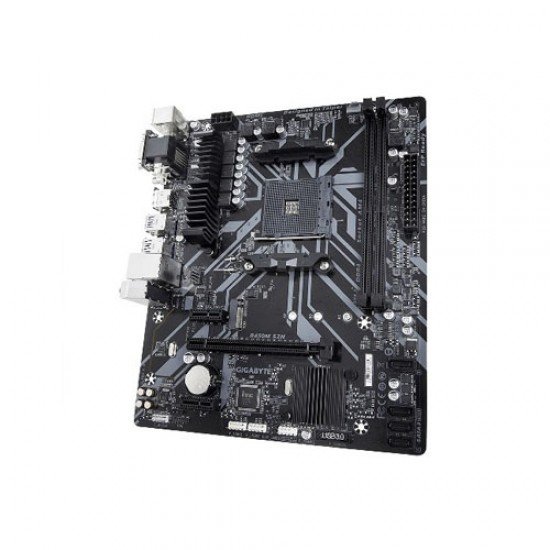

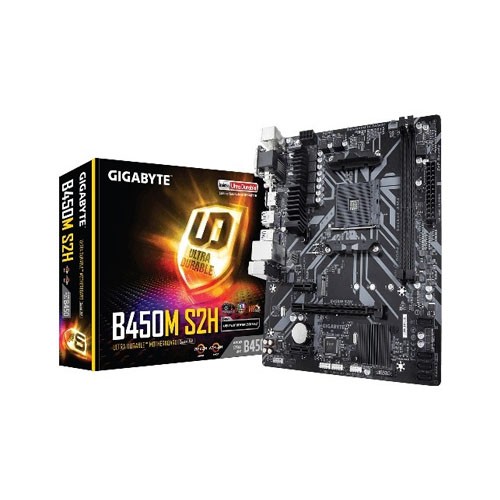

The Gigabyte B450M S2H ULTRA Durable Motherboard is a reliable and budget-friendly solution designed for AMD Ryzen users who want stable performance, essential features, and long-term durability. Built on the AMD B450 chipset, this micro-ATX motherboard supports 1st, 2nd, and 3rd generation AMD Ryzen processors, making it an excellent choice for entry-level to mid-range gaming PCs, home systems, and productivity builds. Gigabyte’s renowned Ultra Durable technology ensures high-quality components, including solid capacitors and improved power delivery, for consistent performance and extended lifespan. This motherboard supports dual-channel DDR4 memory, allowing smoother multitasking and improved system responsiveness. With an M.2 slot for high-speed NVMe SSDs and SATA ports for additional storage, users can enjoy faster boot times and efficient data access. The integrated HDMI and DVI-D display outputs make it suitable for both gaming and office setups without requiring a dedicated graphics card initially. Audio performance is enhanced with high-quality audio capacitors, delivering clear and immersive sound for gaming, movies, and music. Designed with Smart Fan 5 technology, the Gigabyte B450M S2H offers advanced fan control to maintain optimal system cooling while keeping noise levels low. Its compact micro-ATX form factor ensures easy installation in smaller cases without sacrificing essential features. Overall, the Gigabyte B450M S2H ULTRA Durable Motherboard delivers excellent value, dependable performance, and future-ready expandability, making it a smart choice for users building a cost-effective yet capable AMD-based PC in Bangladesh.
The Gigabyte B450M S2H ULTRA is a reliable and feature-packed motherboard designed for gamers, PC builders, and professionals using AMD processors. With robust durability, flexible connectivity, and advanced features, it delivers stable performance for both everyday tasks and high-demand applications.
Build a stable and powerful AMD system with the Gigabyte B450M S2H ULTRA Durable Motherboard. Ensure smooth multitasking, superior connectivity, and long-lasting performance for your gaming or professional setup. Order now and upgrade your PC with confidence!
This feature-rich Motherboard from GIGABYTE (AMD) is ideal for gamers, creators, and PC enthusiasts. Explore more premium motherboards in our Motherboard category and discover authentic Gigabyte (AMD) products at Index IT, your trusted source for genuine tech and unbeatable deals.
The latest price of Gigabyte B450M S2H ULTRA Durable Motherboard in Bangladesh is 6,250৳ You can buy the Gigabyte B450M S2H ULTRA Durable Motherboard at best price from our Website or visit any of our showrooms.
