| Basic Information | |
| Supported CPU | AM4 Socket Support for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors |
| Chipset | AMD B450 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
| M.2 Socket | 1 x M.2 Socket 3 connector 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) Supports only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series or Athlon APU. |
| Graphics | |
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz(Note) Support for HDMI 2.0 version and HDCP 2.2.(Note) Maximum shared memory of 2 GB (Note) Actual support may vary by CPU. |
| Max Shared Memory | 2 GB |
| Connector & Ports | |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz Support for HDMI 2.0 version and HDCP 2.2. 1 x HDMI port |
| USB (s) | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) Supports only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series or Athlon APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz |
| Others Information | |
| Special Features | Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. BIOS 3D OSD AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install |
| Physical Specification | |
| Type | Dual channel memory architecture |
| Slots | - 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory |
| Supported Memory | - Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules |
| Max. Memory | 32 GB |
| Warranty Information | |
| Manufacturing Warranty | 03 years warranty |

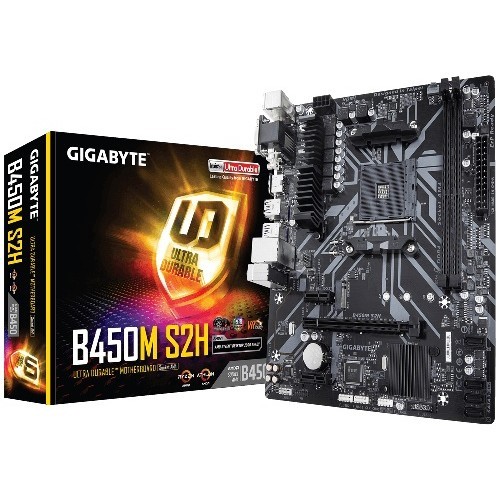

Building a powerful yet budget-friendly PC can be challenging, especially when you need stability, compatibility, and future upgrade options. The Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard is designed to solve these problems by offering a balanced combination of performance, durability, and essential features for modern computing needs. Whether you are assembling a gaming rig, office workstation, or home PC, this motherboard provides the flexibility and reliability you expect from a trusted brand. Powered by the AMD B450 chipset, it supports a wide range of AMD Ryzen processors, ensuring smooth multitasking and efficient performance. The Micro ATX form factor makes it perfect for compact builds without compromising expandability. With support for high-speed DDR4 memory, ultra-fast M.2 storage, and multiple connectivity options, this motherboard ensures your system runs efficiently and stays future-ready. Gigabyte’s quality components and advanced BIOS features make installation and optimization simple, even for beginners. If you are looking for a dependable motherboard that delivers excellent value for money, the Gigabyte B450M S2H stands out as a smart choice.
Upgrade your PC with the Gigabyte B450M S2H Motherboard today and enjoy reliable performance, smooth multitasking, and future-ready features. Order now to build a powerful system that meets your everyday computing and gaming needs without breaking your budget.
The latest price of Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard in Bangladesh is 9,700৳ You can buy the Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
