| Physical Specification | ||
| Type | Dual channel memory architecture | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 128 GB | |
| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 series/ 3rd Generation AMD Ryzen processors/ <br>2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd <br>Generation AMD Ryzen with Radeon Vega Graphics processors/ 1st Generation AMD Ryzen<br> with Radeon Vega Graphics processors/ AMD Ryzen with Radeon <br>Vega Graphics processors | |
| Chipset | AMD B450 | |
| BIOS | 1 x 128 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)<br> 1 x PCI Express x16 slot, running at x4 (PCIEX4)<br> 2 x PCI Express x1 slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD <br>support) (M2A_SOCKET)<br> 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor:<br> 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does <br>not support D-Sub connection by adapter.<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.0 version, HDCP 2.2, and HDR<br> Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies | |
| Max Shared Memory | 16 GB | |
| Connector & Ports | ||
| HDMI | x HDMI<br> DVI-D (s)<br> 1 x DVI-D | |

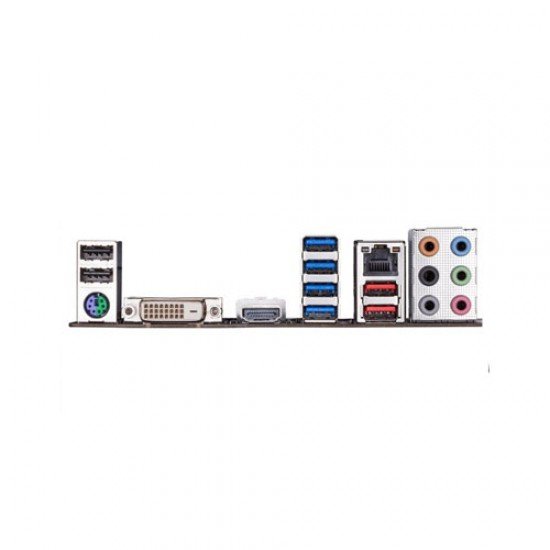

| USB (s) | Integrated in the CPU:<br> 4 x USB 3.1 Gen 1 ports on the back panel<br> Integrated in the Chipset:<br> 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel<br> 2 x USB 3.1 Gen 1 ports available through the internal USB headers<br> 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the<br> internal USB headers) | |
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | Integrated in the CPU:<br> 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD <br>support) (M2A_SOCKET)<br> 2 x SATA 6Gb/s connectors (ASATA3 1/2)<br> Integrated in the Chipset:<br> 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSD support) <br>(M2B_SOCKET)<br> 4 x SATA 6Gb/s connectors (SATA3 0/1/2/3) | |
| Audio | Realtek ALC892 codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 3 x system fan headers<br> 2 x M.2 Socket 3 connectors<br> 6 x SATA 6Gb/s connectors<br> 2 x addressable LED strip headers<br> 2 x addressable LED strip power select jumpers<br> 1 x CPU cooler LED strip/RGB LED strip header<br> 1 x RGB (RGBW) LED strip header<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x S/PDIF Out header<br> 1 x USB 3.1 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x serial port header<br> 1 x speaker header<br> 1 x Clear CMOS jumper<br> 1 x chassis intrusion header | |
| Others Information | ||
| Special Features | Support for APP Center<br> * Available applications in APP Center may vary by motherboard model. Supported functions <br>of each application may also vary depending on motherboard specifications.<br> @BIOS<br> AutoGreen<br> Cloud Station<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> Smart Keyboard<br> Smart Survey<br> System Information Viewer<br> USB Blocker<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |

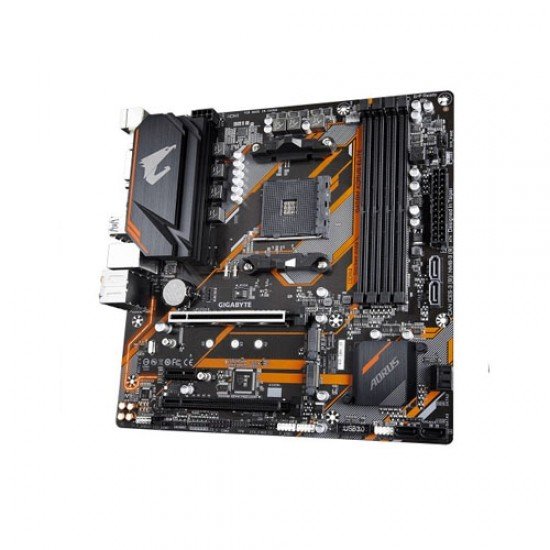

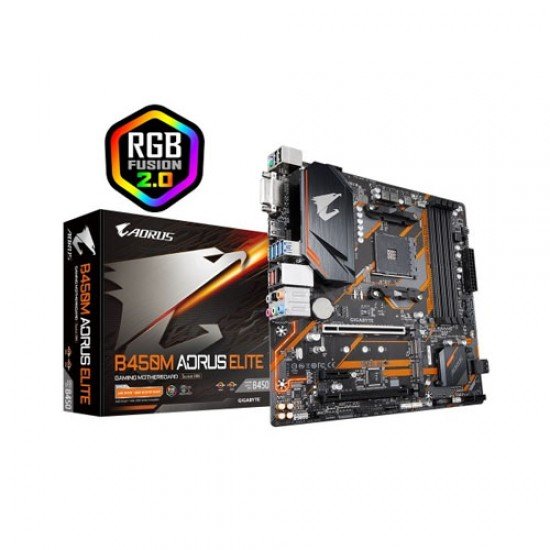

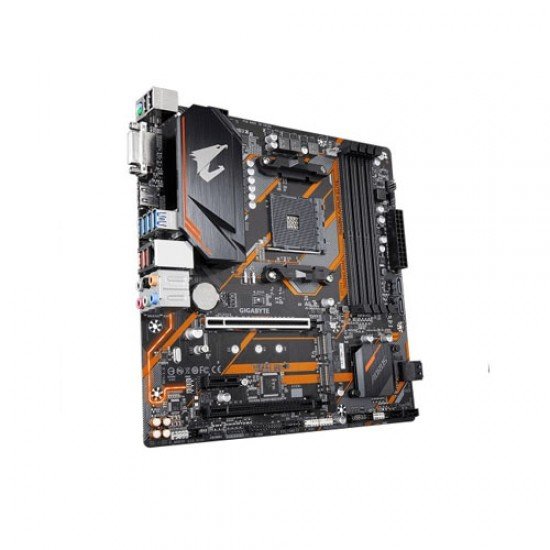

The Gigabyte B450M AORUS Elite AMD Gaming Motherboard is engineered to bring performance, stability, and advanced features to your gaming or productivity PC. Designed for AMD Ryzen processors, this motherboard supports high-speed memory, multiple GPU configurations, and enhanced thermal solutions to ensure smooth operation under heavy workloads and gaming sessions. At Index IT, you can get this premium motherboard at 9,600৳, offering incredible value for gamers, content creators, and PC enthusiasts. Its robust power design, ultra-fast connectivity options, and reliable BIOS features make system building and upgrades effortless. Whether you’re setting up a competitive gaming rig or a multitasking workstation, the B450M AORUS Elite ensures consistent performance and long-term durability. Trust Index IT to deliver genuine Gigabyte products backed by expert advice and dependable after-sales support, helping you build a high-performing system with ease.
Ensure compatibility with AMD Ryzen processors (AM4 socket)
Check supported RAM type and maximum capacity for your needs
Verify case size to match Micro-ATX form factor
Review GPU compatibility and expansion slots
Use quality power supply for stable performance
Purchase from trusted stores like Index IT for original motherboard
Upgrade your rig with Gigabyte B450M AORUS Elite AMD Gaming Motherboard from Index IT and enjoy smooth performance, trusted quality, and hassle-free support. At Index IT, we specialize in offering genuine components. Explore our wide range of Gigabyte motherboard (Intel), GIGABYTE laptops, GIGABYTE PC bundles, and brand PCs, all curated for high performance and reliability. Don’t compromise on quality—choose IndexIT for authentic products, expert guidance, and fast delivery to elevate your computing experience today!
The latest price of Gigabyte B450M AORUS Elite AMD Gaming Motherboard in Bangladesh is 9,600৳ You can buy the Gigabyte B450M AORUS Elite AMD Gaming Motherboard at best price from our Website or visit any of our showrooms.
