Specification
| General |
| Casing |
Plastic |
| Dimensions |
Φ97.1 mm × 93.0 mm (Φ3.82″ × 3.66″) |
| Weight |
0.17 Kg (0.37lb) |
| Pan/Tilt/Rotation |
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360° |
| Operating Conditions |
-40°C to +50°C (-40°F to 122°F);<95% (non-condensation) |
| Storage Conditions |
-40°C to +50°C (-40°F to 122°F);<95% (non-condensation) |
| Power Supply |
12V ±30% DC |
| Power Consumption |
Max 2.6 W (12V DC, IR on) |
| Camera |
| Image Sensor |
1/2.7 inch CMOS |
| Effective Pixels |
2MP |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s |
| Minimum Illumination |
0.02 Lux/F1.9, 30IRE, 0 Lux IR on |
| S/N Ratio |
>65dB |
| IR Distance |
25 m (82.0 ft) |
| IR On/Off Control |
Auto; manual |
| Lens |
| Lens Type |
Fixed -Focal |
| Mount Type |
M12 |
| Focal Length |
2.8mm; 3.6mm |
| Max Aperture |
2.8 mm: F1.9
3.6 mm: F2.0 |
| Angle of View |
2.8 mm: H: 101°; V: 54° ; D: 119°
3.6 mm: H: 84°; V: 45°; D: 100° |
| Close Focus Distance |
2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.8 m (2.62 ft) |
| Video |
| Resolution |
1920(H)×1080(V) |
| Frame Rate |
CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
AHD: 1080P@25/30fps; 720P@25/30fps;
TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
CVBS: 960H |
| Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Day/Night |
Auto switch by ICR |
| BLC Mode |
BLC/HLC/DWDR |
| BLC Mode |
BLC/HLC/DWDR |
| Gain Control |
Auto; manual |
| Noise Reduction |
2D NR |
| Interface |
| Audio Interface |
Built-in mic (-A) |
| Warranty |
| Warranty |
1 Year |

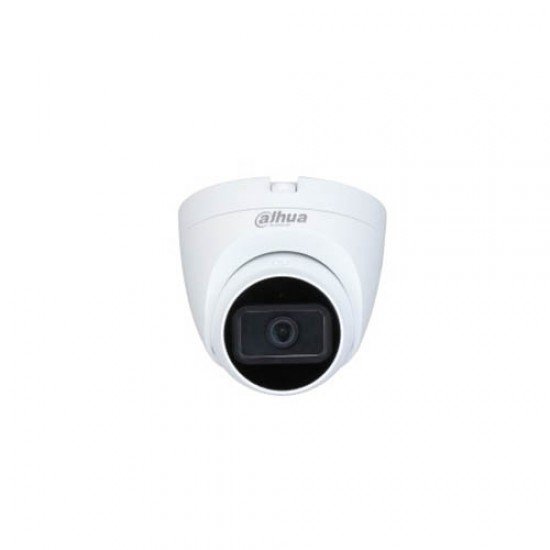

Dahua HAC-HDW1200TRQP-A 2MP HDCVI IR Eyeball Camera
The Dahua HAC-HDW1200TRQP-A is a modern 2MP HDCVI eyeball camera designed for fast installation, dependable performance, and clear surveillance in a wide range of environments. Built with a compact yet durable plastic casing, this camera is lightweight (only 0.17 kg) and engineered for flexibility, featuring full 360° pan and rotation with up to 78° tilt adjustment. This makes it easy to position accurately during installation, saving both time and effort—especially in quick deployment scenarios. At its core, the camera uses a 1/2.7-inch CMOS image sensor with progressive scanning to deliver sharp Full HD 1920×1080 resolution video. It performs well in challenging lighting conditions, offering a minimum illumination of 0.02 Lux in low light and 0 Lux when IR is enabled. With an IR range of up to 25 meters, the camera ensures reliable night-time monitoring, while automatic or manual IR control adapts to changing environments. The built-in ICR mechanism seamlessly switches between day and night modes for consistent image quality. The camera supports multiple video formats—HDCVI, TVI, AHD, and CVBS—through a single BNC port, making it highly compatible with existing DVR systems. Flexible lens options (2.8mm and 3.6mm) provide wide-angle coverage, allowing users to choose the best field of view for their security needs. Advanced image features such as BLC, HLC, DWDR, 2D noise reduction, and auto/manual gain control help maintain clarity and balance in high-contrast or noisy scenes. Designed to operate reliably in extreme conditions, the camera functions smoothly from -40°C to +50°C with non-condensing humidity. It runs on a standard 12V DC power supply with low power consumption (max 2.6W) and includes a built-in microphone for audio recording. Backed by a 1-year warranty, the Dahua HAC-HDW1200TRQP-A is a practical, efficient, and professional solution for modern surveillance needs.
Buying Guideline for Dahua HAC-HDW1200TRQP-A 2MP Eyeball Camera
When choosing the Dahua HAC-HDW1200TRQP-A 2MP HDCVI Quick-to-Install IR Eyeball Camera, it’s important to consider features that will deliver reliable performance, clear image quality, and easy installation. The guidelines below will help you make an informed choice based on technical specs, environment, and long-term use.
Key Buying Considerations:
-
Image Quality & Resolution – Ensure the camera provides at least 2MP (1080P) resolution for sharp and detailed footage, suitable for both residential and commercial security.
-
IR Night Vision Performance – Check the IR distance (up to 25m) and IR control modes (auto/manual) to ensure clear night surveillance in low-light environments.
-
Lens & Viewing Angle – Choose between 2.8mm or 3.6mm focal lengths based on your coverage needs. Wider angles cover more area, while narrower angles offer more focused views.
-
Environmental Durability – Verify operating temperature range (-40°C to +50°C) and humidity tolerance to ensure the camera performs reliably in your climate.
-
Installation Ease – The quick-to-install design and standard mounting options help reduce installation time and cost.
-
Video Output Flexibility – Look for support across CVI/TVI/AHD/CVBS outputs for compatibility with different DVR systems.
-
Additional Features – Features such as DWDR, BLC/HLC, and 2D noise reduction improve video clarity in challenging lighting.
-
Warranty & Support – A 1-year warranty provides peace of mind and protection against early failures.
Choose this camera if you need a balance of high-definition capture, adaptable installation, and robust night vision. For top-tier Security and HD Camera solutions by Dahua, trust Index IT for genuine products and expert support tailored to your surveillance needs.
