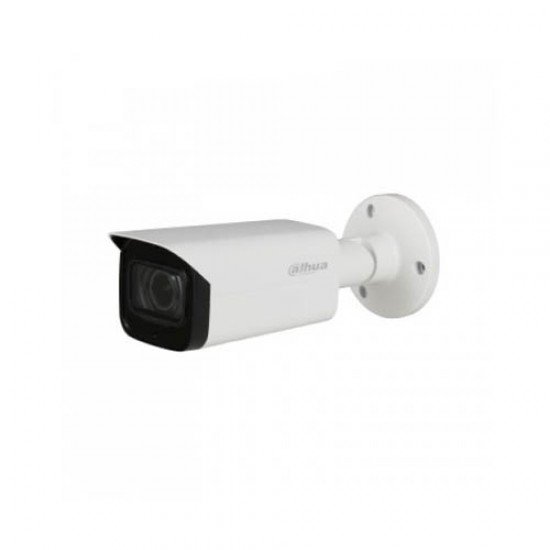

Dahua DH-HAC-HFW2401TP-Z-A 4MP Water-Proof HDCVI IR Bullet Camera

Dahua DH-HAC-HFW2401TP-Z-A 4MP Water-Proof HDCVI IR Bullet Camera
In Stock
Dahua DH-HAC-HFW2401TP-Z-A 4MP Water-Proof HDCVI IR Bullet Camera
Share:
  • Stock: In Stock
  • Brand: Dahua
  • Model: DH-HAC-HFW2401TP-Z-A
  • MPN: star
7,500৳
Ex Tax: 7,500৳

Key Features

Specification
General
Pan/Tilt/Rotation Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
Power Power Supply:
AC 24V±30% / DC 12V±30% Power Consumption:
Max 13.5W (12V DC, IR on)
Power Consumption
Weight Net Weight: 0.80kg (1.76lb)
Gross Weight: 1.05kg (2.31lb)
Camera
Effective Pixels 2560(H)×1440(V), 4MP
Electronic Shutter Speed PAL: 1/25s~1/100,000s
NTSC: 1/30s~1/100,000s
Image Sensor 1/1.8" CMOS
IR Distance Up to 80m (262feet)
Minimum Illumination 0.002Lux/F1.9, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
Lens
Angle of View H: 114.3°~47.2°
V: 61.7°~26.8°
Focal Length 3.7-11mm
Lens Type Motorized lens / Fixed iris
Mount Type Board-in
Video
Day/Night Auto (ICR) / Manual
Frame Rate 25/30fps@4MP, 25/30fps@1080P
Resolution 4MP (2560×1440)
Video Output 1-channel BNC high definition video output / CVBS video output (DIP switch)
Physical Specification
Others
Dimensions 244.1mm×90.4mm×90.4mm (9.61"×3.56"×3.56")
Warranty Information
Warranty 01-year warranty
Description

Dahua DH-HAC-HFW2401TP-Z-A 4MP Water-Proof Bullet Camera

The Dahua DH-HAC-HFW2401TP-Z-A 4MP Water-Proof HDCVI IR Bullet Camera is a professional-grade surveillance solution, designed to deliver high-quality, reliable security monitoring in a variety of environments. With a 4-megapixel resolution (2560×1440 pixels), this camera ensures ultra-clear images with excellent detail, making it ideal for critical monitoring of homes, offices, retail spaces, and industrial sites. Its 1/1.8" CMOS sensor provides exceptional low-light performance, capturing sharp images even in near-total darkness. The camera supports a minimum illumination of just 0.002Lux at F1.9, and with IR enabled, it can operate in complete darkness up to a range of 80 meters (262 feet), ensuring round-the-clock security coverage.

This bullet camera features a motorized lens with a focal length of 3.7–11mm, offering flexible zoom and a horizontal field of view ranging from 114.3° to 47.2°, and vertical coverage from 61.7° to 26.8°. Its pan, tilt, and rotation capabilities (Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°) allow precise camera positioning for optimal coverage, while the fixed iris ensures consistent image quality across varying lighting conditions. The camera delivers smooth video at 25/30fps in both 4MP and 1080p resolution, outputting high-definition video through BNC or standard CVBS connections.

Designed for durability, the Dahua DH-HAC-HFW2401TP-Z-A is water-resistant, making it suitable for outdoor installations in diverse weather conditions. Its sturdy build, weighing 0.8 kg net and measuring 244.1mm × 90.4mm × 90.4mm, provides reliable protection without compromising on aesthetics. Power options include AC 24V±30% or DC 12V±30%, with a maximum consumption of 13.5W when IR is active, ensuring energy-efficient operation.

Backed by a one-year warranty, this camera combines advanced imaging, flexible installation, and robust performance. The Dahua DH-HAC-HFW2401TP-Z-A 4MP Water-Proof HDCVI IR Bullet Camera is a dependable choice for anyone seeking high-definition surveillance with exceptional low-light performance and long-range infrared capability.
