| General Information |
| Functions |
Print Only |
| Printer Type |
Single Function Large Format Printer |
| Output Color |
Color |
| Print Information |
| Print Speed (Plain Paper - A0) |
CAD Drawings: 34 sec (Fast Custom Q5), 37 sec (Fast), 1 min 4 sec (Standard)
Poster: 37 sec (Fast Custom Q5), 42 sec (Fast), 1 min 15 sec (Standard)
|
| Heavyweight Coated Paper HG (A0 Poster) |
1 min 38 sec (Fast), 2 min 33 sec (Standard) |
| Glossy Photo Paper HG 170 (A0 Poster) |
2 min 59 sec (Fast), 5 min 44 sec (Standard) |
| Print Resolution |
2400 x 1200 dpi |
| Duplex |
IEEE 802.3x Full Duplex |
| Paper Information |
| Minimum Printable Length |
Roll Paper: 101.6 mm
Cut Sheet: 203.2 mm
|
| Maximum Printable Length |
Roll Paper: 18 m
Cut Sheet: 1.6 m
|
| Technical Specifications |
| Memory |
2GB RAM |
| Storage |
500GB HDD (Encrypted) |
| USB |
Hi-Speed USB, Full Speed (12 Mb/sec), High Speed (480 Mb/sec),
Bulk Transfer, Series B (4 pins)
|
| LAN |
IEEE 802.3 10base-T,
IEEE 802.3u 100base-TX (Auto Negotiation),
IEEE 802.3ab 1000base-T (Auto Negotiation),
IEEE 802.3x Full Duplex
|
| WiFi |
IEEE802.11n/g/b |
| Physical Specifications |
| Color |
White |
| Dimensions |
1593 x 1188 x 1168 mm (Main Unit + Roll Unit + Stand + Stacker) |
| Weight |
165 kg |
| Ink Information |
| Ink Capacity |
130 ml / 300 ml (MBK, BK, C, M, Y) |
| Bundled Starter Ink |
130 ml (MBK) / 90 ml (BK, C, M, Y) |
| Ink Type |
Pigment Ink: Matte Black, Black, Cyan, Magenta, Yellow |
| Supported Ink Model |
PFI-8110 (160 ml), PFI-8310 (330 ml) |
| Warranty Information |
| Warranty |
1-year Limited Warranty.
Adapter/Power Cable has no warranty.
Box is mandatory while claiming warranty.
|

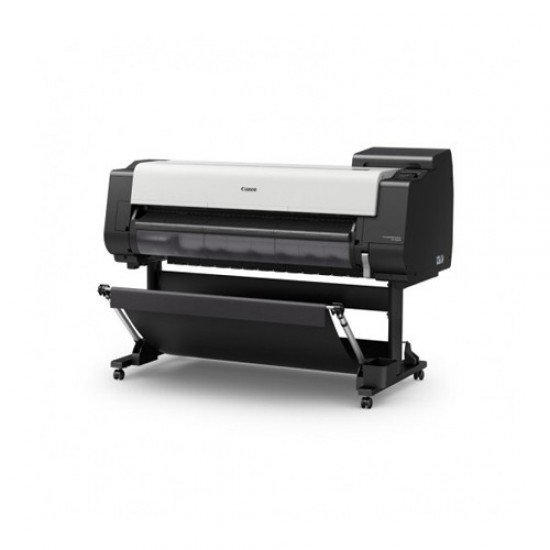

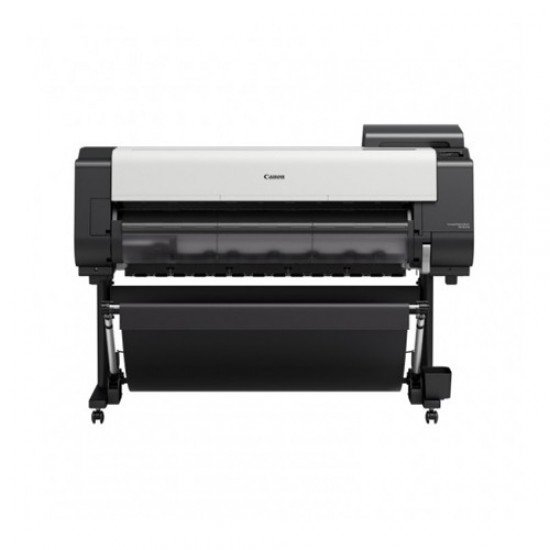

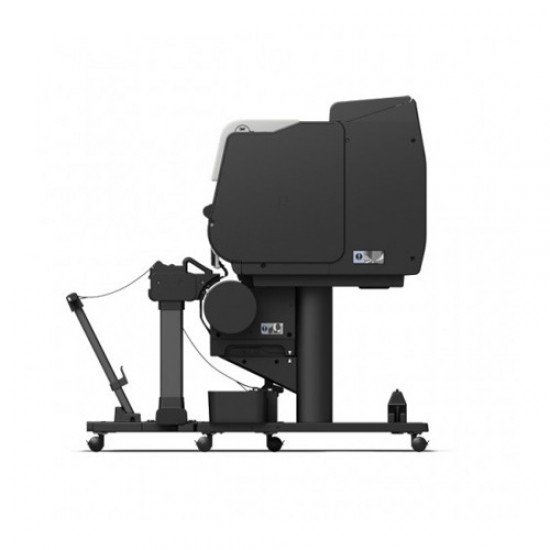

Canon imagePROGRAF TX-5410 Large Format Printer
Canon imagePROGRAF TX-5410 Large Format Printer, a powerful and efficient solution designed for professionals who require high-quality printing for CAD drawings, posters, and other large-format applications. This single-function printer is engineered to deliver exceptional performance, making it an essential tool for architects, engineers, and graphic designers. With a maximum print resolution of 2400 x 1200 dpi, the TX-5410 produces stunningly detailed prints that capture every nuance of your designs. It boasts impressive print speeds, achieving 34 seconds for A0 CAD drawings in fast mode and 37 seconds for A0 posters, ensuring quick turnaround times for large projects. For heavyweight coated paper, it takes approximately 1 minute and 38 seconds for posters in fast mode, making it versatile for various media types. The TX-5410 supports a wide range of paper sizes, with a maximum capacity of A0 and media widths ranging from 203.2 mm to 917 mm. It is compatible with both roll paper and cut sheets, allowing for flexible printing options. The printer features IEEE 802.3x full duplex for efficient data transmission. Equipped with 2GB of RAM and a 500GB HDD, the TX-5410 ensures smooth processing of large files. Connectivity options include USB, LAN, and Wi-Fi, allowing for easy integration into any office setup. The printer also supports mobile printing through Canon's mobile applications, making it convenient to print directly from smartphones and tablets. Designed with user-friendliness in mind, the TX-5410 features a sleek white exterior and a compact footprint, measuring 1593 x 1188 x 1168 mm and weighing 165 kg. Backed by a one-year limited warranty, the Canon imagePROGRAF TX-5410 is a reliable and high-performance printer that meets the demands of professionals seeking quality and efficiency in large-format printing. Elevate your printing capabilities with this exceptional device, designed to deliver outstanding results every time.
Special Benefits of Canon imagePROGRAF TX-5410 Large Format Printer
The Canon imagePROGRAF TX-5410 is designed to deliver professional-grade large-format printing with outstanding precision, speed, and reliability. Built for businesses that demand high performance in technical drawings, posters, banners, and GIS applications, this printer provides a seamless workflow backed by Canon’s advanced printing technology. Its robust build and intelligent features make it an ideal choice for architects, engineers, print shops, and corporate environments.
Special Benefits:
-
Exceptional Print Accuracy – Delivers razor-sharp lines and vibrant color consistency, ideal for CAD, GIS, and large-scale graphic prints.
-
High-Speed Output – Engineered for fast production without compromising quality, ensuring efficient handling of heavy workloads.
-
5-Color LUCIA TD Pigment Ink System – Offers superior water resistance, durability, and clarity even on uncoated media.
-
Automatic Media Handling – Features smart roll feeding, auto paper loading, and advanced detection for hassle-free operation.
-
4.3-inch Touchscreen Panel – Simplifies navigation with an intuitive user interface for smooth control.
-
Wi-Fi, USB & Network Connectivity – Enables flexible printing from multiple devices and workstations.
-
High-Capacity Ink Options – Supports multiple ink tank sizes to reduce operating costs and boost productivity.
-
Advanced Security Features – Protects sensitive data with encrypted communication and secure print settings.
-
Low Maintenance Requirements – Built with user-friendly maintenance cartridges and intelligent monitoring systems.
-
Supports Large Media Up to 44 Inches – Ideal for wide-format commercial printing and detailed technical tasks.
If you’re looking for a more compact yet highly efficient option, the Canon imagePROGRAF TC-20 Single Function Large Format Printer is a great alternative. Both models are available under the Large Format Printer category and belong to the trusted Canon brand. Explore these reliable printing solutions at Index IT, where you can easily compare and choose the best fit for your workflow.
