| Physical Specification | ||
| Type | Dual Channel Memory Architecture | |
| Slots | 4 x DDR4 memory slots | |
| Supported Memory | 3rd Gen AMD Ryzen Processors<br> 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory<br> 3rd Gen AMD Ryzen with Radeon Graphics Processors<br> 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory<br> ECC Memory (ECC mode) support varies by CPU | |
| Maximum Memory | 128GB | |
| Basic Information | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD B550 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor<br> 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) | |
| Expansion Slots | ||
| PCI | 3rd Gen AMD Ryzen Processors<br> 1 x PCIe 4.0 x16 (x16 mode)<br> 3rd Gen AMD Ryzen with Radeon Graphics Processors<br> 1 x PCIe 3.0 x16 (x16 mode)<br> AMD B550 Chipset<br> 1 x PCIe 3.0 x16 (x4 mode)<br> 1 x PCIe 3.0 x1 | |
| M.2 Socket | 3rd Gen AMD Ryzen Processors :<br> 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support<br> 3rd Gen AMD Ryzen with Radeon Graphics Processors :<br> 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support<br> AMD B550 Chipset :<br> 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1.2<br> 1 x HDMI 2.1(4K@60HZ)<br> Supports AMD 2-Way CrossFireX Technology | |
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1(4K@60HZ) | |
| Display Port (s) | 1 x DisplayPort 1.2 | |
| USB (s) | Rear USB Port ( Total 8 )<br> 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C)<br> 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)<br> 2 x USB 2.0 port(s)(2 x Type-A)<br> Front USB Port ( Total 6 )<br> 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)<br> 4 x USB 2.0 port(s)(4 x Type-A) | |
| LAN Port (s) | Realtek RTL8125B 2.5Gb Ethernet<br> TUF LANGuard | |
| Supported Storage | Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports<br> 3rd Gen AMD Ryzen Processors :<br> 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support<br> 3rd Gen AMD Ryzen with Radeon Graphics Processors :<br> 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support<br> AMD B550 Chipset :<br> 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support<br> 4 x SATA 6Gb/s port(s),<br> Support Raid 0, 1, 10 | |
| Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC<br> - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback<br> Audio Feature :<br> - Exclusive DTS Custom for GAMING Headsets.<br> - Optical S/PDIF out port(s) at back panel<br> - Audio cover<br> - Audio Shielding<br> - Dedicated audio PCB layers<br> - Premium Japanese audio capacitors | |
| Internal I/O Ports | 1 x CPU Fan connector(s)<br> 1 x CPU OPT Fan connector(s)<br> 2 x Chassis Fan connector(s)<br> 2 x Aura RGB Strip Headers<br> 1 x Addressable Gen 2 header(s)<br> 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)<br> 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)<br> 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)<br> 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)<br> 4 x SATA 6Gb/s connector(s)<br> 1 x 24-pin EATX Power connector(s)<br> 1 x 8-pin EATX 12V Power connectors<br> 1 x Front panel audio connector(s) (AAFP)<br> 1 x Clear CMOS jumper(s)<br> 1 x System panel connector<br> 1 x COM port header<br> 1 x Speaker connector | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header | |
| Others Information | ||
| Special Features | ASUS Exclusive Software<br> Armoury Crate<br> - Aura Creator<br> - Aura Sync<br> - AI Noise Cancelling Microphone<br> AI Suite 3<br> - Performance And Power Saving Utility<br> TurboV EVO<br> EPU<br> Digi+ VRM<br> Fan Xpert 2+<br> - EZ update<br> TUF GAMING CPU-Z<br> AI Charger<br> ASUS Turbo LAN<br> DAEMON Tools<br> DTS Custom for GAMING Headsets<br> Norton Anti-virus software (Free Trial for 60 days)<br> WinRAR<br> UEFI BIOS<br> ASUS EZ DIY<br> - ASUS CrashFree BIOS 3<br> - ASUS EZ Flash 3<br> - ASUS UEFI BIOS EZ Mode<br> ASUS TUF PROTECTION<br> - ASUS DIGI+ VRM (Digital power design with Dr. MOS)<br> - ASUS Enhanced DRAM Overcurrent Protection<br> - ASUS ESD Guards<br> - TUF LANGuard<br> - ASUS Overvoltage Protection<br> - ASUS SafeSlot<br> - ASUS Stainless-Steel Back I/O<br> ASUS Q-Design<br> - ASUS Q-DIMM<br> - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])<br> - ASUS Q-Slot<br> ASUS Thermal Solution<br> - Aluminum M.2 heatsink<br> ASUS EZ DIY<br> - BIOS FlashBack™ button<br> - BIOS FlashBack™ LED<br> - Procool<br> AURA Sync<br> - Standard RGB headers<br> - Addressable Gen 2 RGB header | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years Warranty | |

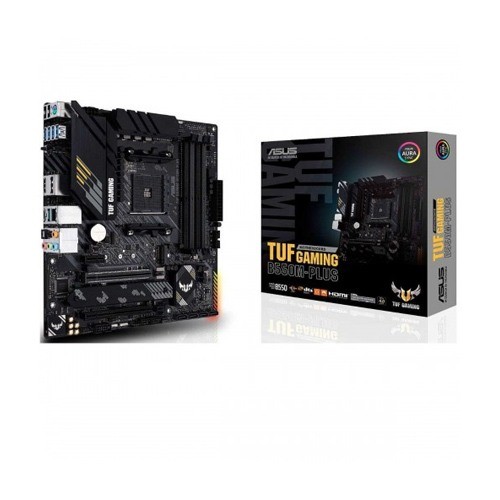

The Asus TUF Gaming B550M-Plus Micro ATX AM4 Motherboard is engineered to deliver dependable performance, durability, and efficiency for modern gaming builds. Designed to support AMD Ryzen 5000 and 4000G Series processors, as well as AMD Ryzen 3rd Generation CPUs, this board ensures a powerful and scalable foundation for both mainstream and performance-focused systems. Its AM4 socket and B550 chipset enable strong computing capability, fast data handling, and future-ready support for high-speed components. Built for online gaming, the TUF Gaming B550M-Plus integrates a robust feature set tailored for stability and responsiveness. Gamers benefit from low-latency connectivity, enhanced signal integrity, and optimized networking that helps maintain seamless online gameplay. The board incorporates TUF components, including military-grade capacitors and enhanced power stages, forming an enhanced power solution that ensures consistent delivery of energy to the CPU during demanding applications and long gaming sessions. Thermal management is a priority, with a comprehensive cooling system that includes large VRM heatsinks, multiple fan headers, and intelligent cooling controls. These features work together to maintain stable temperatures under heavy loads, protecting components and extending longevity. Additionally, this micro ATX design optimizes space while offering ample expansion options. It provides high-speed interfaces, including PCIe slots, fast storage support, and modern connectivity that accommodates a wide range of gaming hardware. Combined with its rugged build quality and thoughtfully engineered layout, the motherboard supports efficient cable management and easier system assembly. Overall, the Asus TUF Gaming B550M-Plus delivers a balanced blend of durability, performance, and gaming-focused features, making it a strong choice for users seeking a reliable and high-value foundation for their next PC build.
The latest price of Asus TUF Gaming B550M-Plus Micro ATX AM4 Motherboard in Bangladesh is 19,299৳ You can buy the Asus TUF Gaming B550M-Plus Micro ATX AM4 Motherboard at best price from our Website or visit any of our showrooms.
