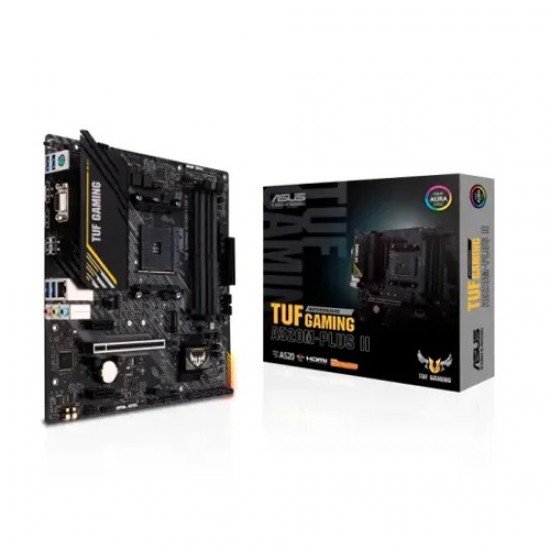

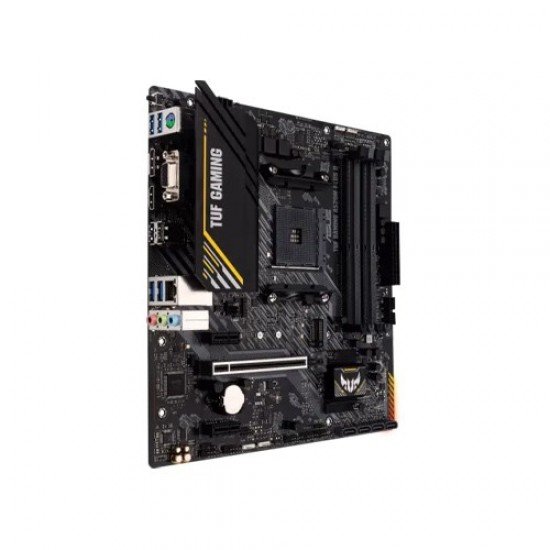

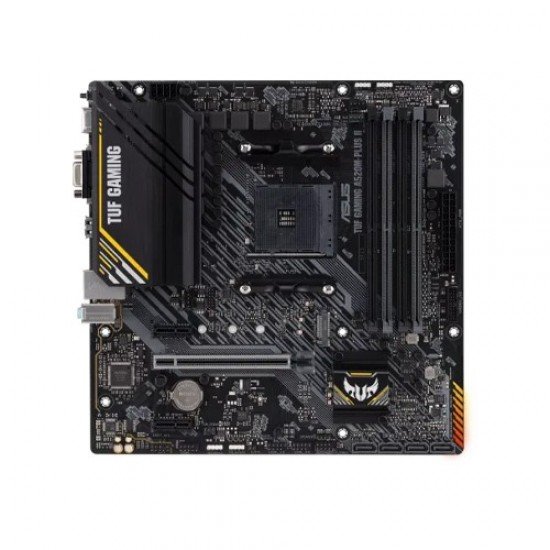

Name: Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
Brand: Asus
Price: 12800.00 BDT
Availability: OutOfStock

Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard

In Stock

Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard

Stock: In Stock
Brand: Asus
Model: TUF GAMING A520M-PLUS II

Based on 0 reviews. - Write a review

12,800৳

Ex Tax: 12,800৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: Ryzen 5000/ 4000 G/ 3000 Series
- Supported RAM: 4 x DIMM, Max. 128GB, DDR4
- Graphics Output: 1 x DisplayPort 1.2, 1 x HDMI 2.1, 1 x D-Sub
- Features: Onboard RGB headers

View More Info

Specification

Physical Specification
Type	DDR4
Slots	4 x DIMM
Supported Memory	4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory Dual Channel Memory Architecture
Maximum Memory	128GB
Basic Information
Supported CPU	AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset	A520
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	microATX 24.4cm x 24.4cm
Audio	Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI	AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots
Graphics
Graphics	1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60Hz) 1 x D-Sub

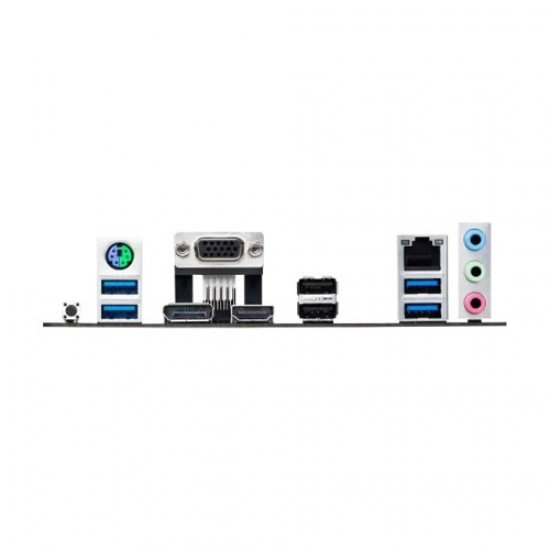

Connector & Ports
HDMI	1 x HDMI port
Display Port (s)	1 x DisplayPort
USB (s)	4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports
LAN Port (s)	1 x Realtek 1Gb Ethernet TUF LANGuard
Supported Storage	AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset: 4 x SATA 6Gb/s ports Support RAID 0, 1, 10
Audio	3 x Audio jacks
Internal I/O Ports	Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
D-Sub (s)	1 x D-Sub
Others Information
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update - PC Cleaner - System Information TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Special Features	ASUS TUF PROTECTION - DIGI+ VRM - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers
Warranty Information
Manufacturing Warranty	3 Years

Description

Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard

The Asus TUF GAMING A520M-PLUS II is a durable and performance-focused microATX motherboard designed for users who want reliable power, smooth performance, and long-term stability for their AMD Ryzen-based system. Built with the TUF Gaming philosophy, it features military-grade components, enhanced power solutions, and comprehensive cooling options, making it an excellent foundation for both gaming and productivity. Supporting AMD AM4 processors, the board is compatible with Ryzen 5000 Series, Ryzen 4000 G-Series, and Ryzen 3000 Series CPUs, allowing users to build a system that suits their performance needs and budget. Its 4 DIMM slots support up to 128GB DDR4 memory, enabling smooth multitasking, faster load times, and improved overall responsiveness for modern games and applications. The motherboard offers versatile display connectivity, including DisplayPort 1.2, HDMI 2.1, and a D-Sub port, providing flexibility for various monitor setups. Whether you’re using high-refresh-rate displays or traditional screens, the board ensures clear and reliable output from compatible APUs. Connectivity and expandability are also well covered. It includes multiple USB ports, PCIe slots for graphics cards and expansion cards, and high-speed storage support to keep your system running efficiently. The board's layout is optimized for easy installation and cable management, which makes building or upgrading your PC simple and hassle-free. For gamers, the onboard RGB headers allow customizable lighting effects to sync with other Aura-compatible components, helping create a personalized gaming atmosphere. In addition, TUF Gaming motherboards are engineered with advanced power design and cooling controls to ensure stability even during long gaming sessions. Overall, the Asus TUF GAMING A520M-PLUS II is a dependable, feature-rich motherboard that delivers durability, compatibility, and performance—making it a strong choice for building a reliable AMD gaming or productivity PC.

Features of Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard

AMD AM4 Socket Support for Ryzen 5000, 4000 G-Series, and 3000 Series processors.
Military-grade TUF components including durable chokes and capacitors for long-lasting stability.
MicroATX form factor, ideal for compact gaming and productivity builds.
Supports up to 128GB DDR4 RAM across 4 DIMM slots for smooth multitasking.
Multiple display outputs including DisplayPort 1.2, HDMI 2.1, and D-Sub for versatile monitor setups.
Enhanced power delivery with optimized VRM design for consistent CPU performance.
Comprehensive cooling options, including dedicated fan headers and smart cooling control.
PCIe expansion slots for graphics cards and add-on components.
High-speed storage support with M.2 and SATA connections.
Realtek audio chipset for clear and immersive sound quality.
Onboard RGB headers with Aura Sync compatibility for customizable lighting effects.
Reinforced SafeSlot design for stronger PCIe slot durability.
TUF Gaming Alliance compatibility, ensuring better component matching and style coordination.
User-friendly BIOS interface with advanced tuning options and system monitoring.
Durable PCB design built to withstand heat, stress, and long gaming sessions.
