Name: Asus ROG Strix B550-F Gaming AM4 ATX Motherboard
Brand: Asus
Price: 20200.00 BDT
Availability: OutOfStock

Asus ROG Strix B550-F Gaming AM4 ATX Motherboard

In Stock

Asus ROG Strix B550-F Gaming AM4 ATX Motherboard

Stock: In Stock
Brand: Asus
Model: ROG Strix B550-F Gaming

Based on 0 reviews. - Write a review

20,200৳

Ex Tax: 20,200৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
- Best gaming connectivity
- Best gaming connectivity
- Industry-leading gaming audio

View More Info

Specification

Physical Specification
Type	Dual Channel Memory Architecture
Slots	4 x DIMM slots
Supported Memory	4400(O.C)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory OptiMem II ECC Memory (ECC mode) support varies by CPU
Maximum Memory	128GB
Basic Information
Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset	AMD B550
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI	3rd Gen AMD Ryzen Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1
M.2 Socket	3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices
Graphics
Graphics	Integrated Graphics Processor 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Supports AMD 2-Way CrossFireX Technology
Connector & Ports
HDMI	1 x HDMI 2.1(4K@60HZ)
Display Port (s)	1 x DisplayPort 1.2

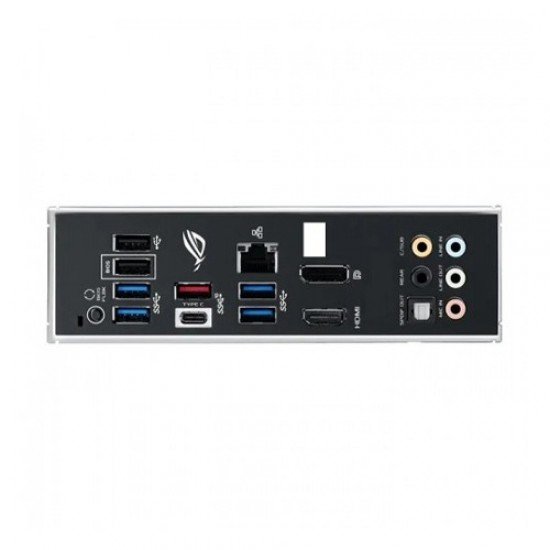

USB (s)	Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
LAN Port (s)	Intel I225-V 2.5Gb Ethernet ASUS LANGuard
Supported Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
Audio	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding Technology - Gold-plated jacks - Optical S/PDIF in port(s) at the back panel - Audio Shielding - Premium Japanese audio capacitors - Audio Cover
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s)
Others Information
Special Features	ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync - AI Noise Cancelling Microphone AI Suite 3: - PPSU EPU DIGI+ VRM Fan Xpert 4 TurboV EVO - EZ update WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack™ button -BIOS FlashBack™ LED -Clear CMOS header -ProCool -Pre-mounted I/O shield - SafeSlot
Warranty Information
Manufacturing Warranty	03 Years Warranty

Description

Asus ROG Strix B550-F Gaming AM4 ATX Motherboard

The Asus ROG Strix B550-F Gaming AM4 ATX Motherboard is engineered for gamers who demand exceptional performance, stunning design, and reliable stability. Built to support AMD Ryzen 5000, 4000G Series, and 3rd Generation Ryzen processors, it ensures powerful computing capability and seamless multitasking for both gaming and productivity. Its robust power solution and optimized thermal design help deliver consistent performance even during long gaming sessions. One of the key strengths of this motherboard is its best-in-class gaming connectivity. Equipped with high-speed USB ports, PCIe 4.0 support, and efficient networking options, it ensures faster data transfer, reduced latency, and smoother gameplay. Whether you're connecting high-performance SSDs, gaming peripherals, or external devices, the board provides all the essential interfaces to keep your setup future-ready. The ROG Strix B550-F Gaming also stands out for its industry-leading gaming audio. Featuring advanced audio shielding and high-quality components, it enhances in-game sound with clear highs, deep bass, and precise positional audio. This gives gamers an immersive edge, letting them hear every detail—from footsteps to environmental cues—with remarkable clarity. Aesthetically, the motherboard features the signature ROG Strix design, including sleek lines, RGB lighting compatibility, and customizable accents that allow you to personalize your gaming rig. Its intuitive BIOS interface and one-click optimization tools make system configuration easier, even for new builders. Designed with durability in mind, it includes premium components and reinforced slots to support heavy graphics cards and long-term usage. The combination of performance, aesthetics, and advanced features makes the Asus ROG Strix B550-F Gaming a top choice for gamers, content creators, and PC enthusiasts seeking a high-quality AM4 ATX motherboard.

Features of Asus ROG Strix B550-F Gaming AM4 ATX Motherboard

Supports AMD Ryzen 5000, 4000G Series, and 3rd Gen Ryzen processors for powerful performance.
Equipped with PCIe 4.0 for ultra-fast graphics and storage speed.
Features advanced power delivery with high-quality VRMs for stable performance.
Offers best-in-class gaming connectivity, including high-speed USB ports and dual M.2 slots.
Includes industry-leading gaming audio with high-fidelity sound enhancement.
Comes with AI Noise-Canceling microphone technology for clearer voice communication.
Features comprehensive cooling, including multiple fan headers and optimized heatsinks.
Supports Aura Sync RGB lighting for full customization of lighting effects.
Designed with reinforced PCIe slots for better GPU stability.
Includes user-friendly BIOS and software tools for easy tuning and system optimization.
